Technical Specifications
| Parameter | Specification |
|---|---|

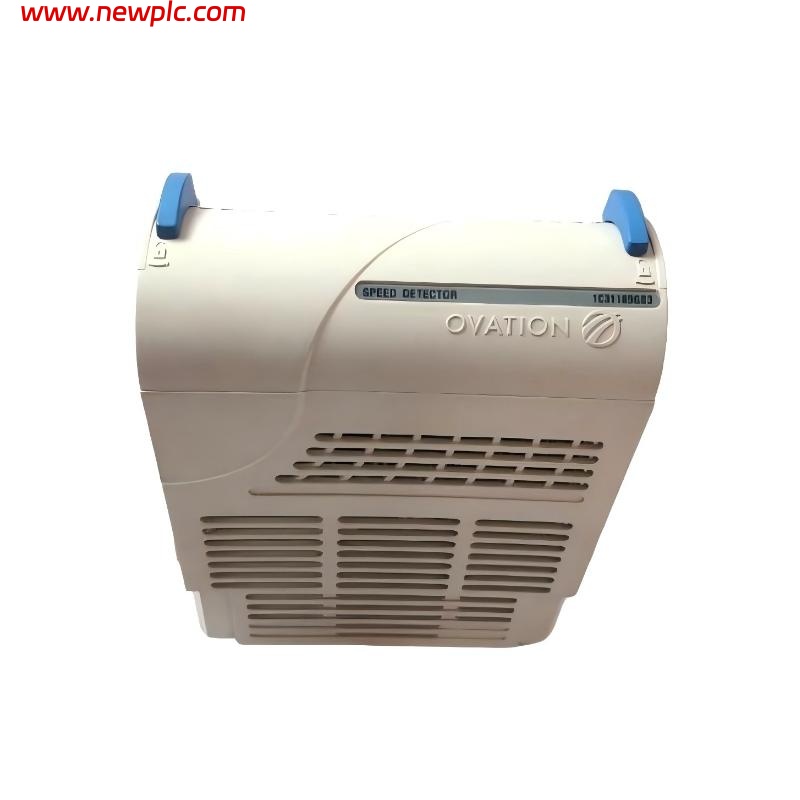

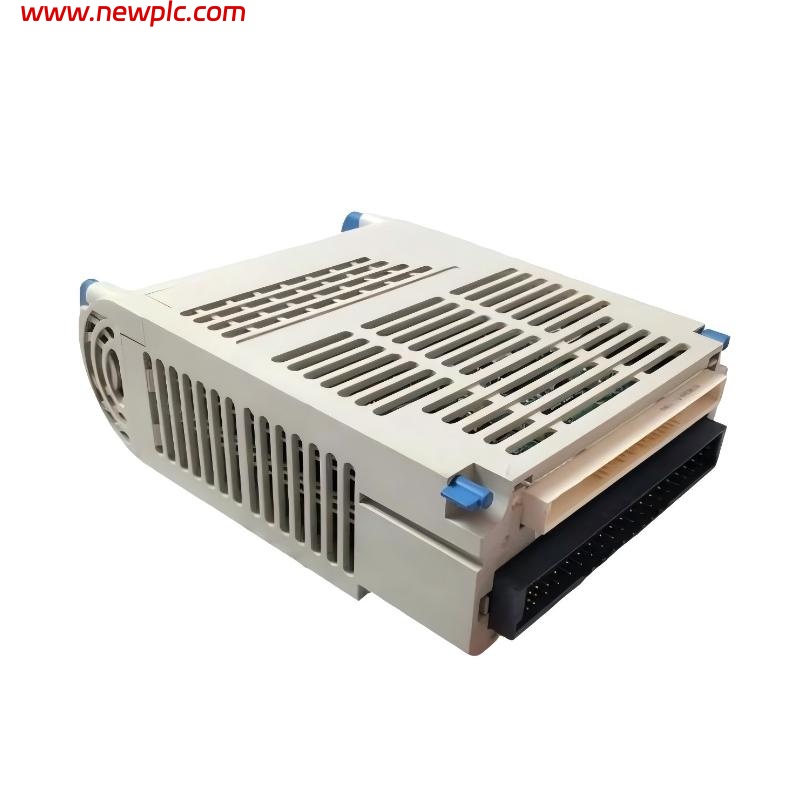

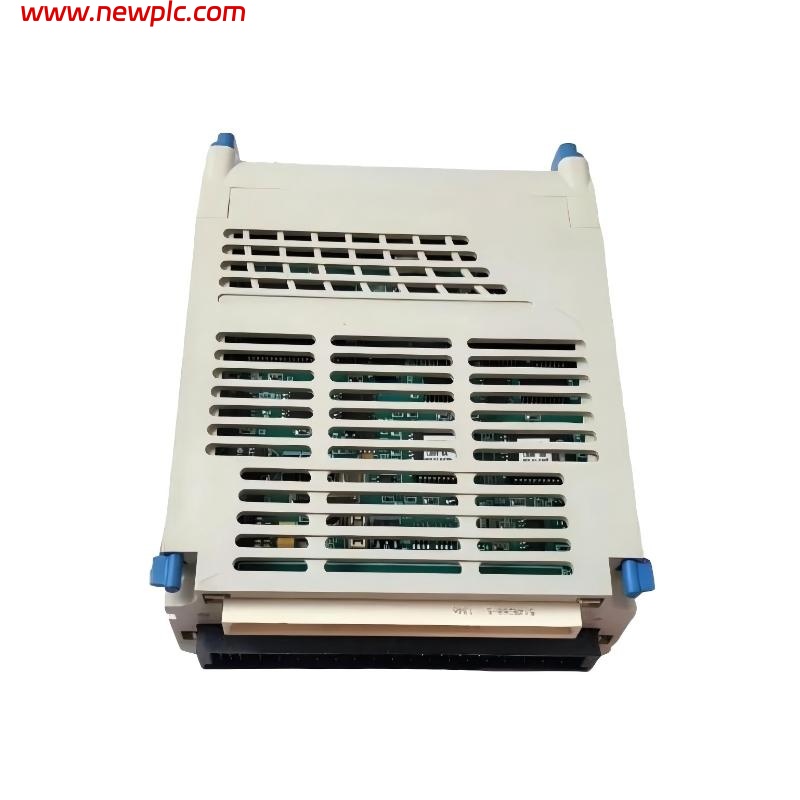

| Product Type | Speed Detector Module |
| Model | Ovation 1C31189G03 |
| Dimensions | 120 x 50 x 165 mm |
| Weight | 0.32 kg |
| Function | Detects rotational speed from sensors and provides processed digital speed data to the Ovation control system |
| Input Channels | 2 speed sensor channels |
| Input Signal Types | Contact closure, TTL pulses, 24 VDC pulse signals |
| Output Interface | Digital data output to Ovation system |
| Counting Frequency | Up to 20 kHz per channel |
| Resolution | 32-bit counter per channel |
| Power Supply | 24 VDC nominal |
| Communication Interface | Ovation system backplane |
| Diagnostics | Sensor fault detection, signal integrity monitoring, and communication status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting | Plug-in module for system backplane |
| Certifications | CE, UL, CSA, and industrial EMC compliance |
FAQ
FAQ
Q1: What is the main function of the Ovation 1C31189G03 module?
A1: The 1C31189G03 detects rotational speed from field sensors and converts these signals into digital data for the Ovation control system to monitor and control rotating machinery.
Q2: What types of input signals are supported by this module?
A2: It supports contact closure, TTL pulses, and 24 VDC pulse signals, accommodating a wide range of industrial speed sensors.
Q3: How many speed channels does the module provide?
A3: The module offers 2 independent speed sensor channels, enabling monitoring of multiple rotating devices simultaneously.
Q4: What is the maximum counting frequency the module can handle?
A4: Each channel can handle input signals up to 20 kHz, suitable for high-speed machinery applications.
Q5: How is speed data represented digitally in this module?
A5: Each channel uses a 32-bit counter to accumulate pulses, providing precise and reliable digital speed data for the control system.
Q6: Does the module include diagnostics?
A6: Yes, it provides sensor fault detection, signal integrity monitoring, and communication status reporting to ensure reliable operation.
Q7: How does the 1C31189G03 interface with the Ovation system?
A7: The module connects directly to the Ovation system backplane, transmitting processed speed data to the central controller for monitoring and control.
Q8: In what environmental conditions can the 1C31189G03 operate?
A8: The module is designed for industrial environments, operating reliably within 0°C to +60°C and tolerating humidity up to 95% non-condensing.
