Technical Specifications
| Item | Specification |
|---|---|

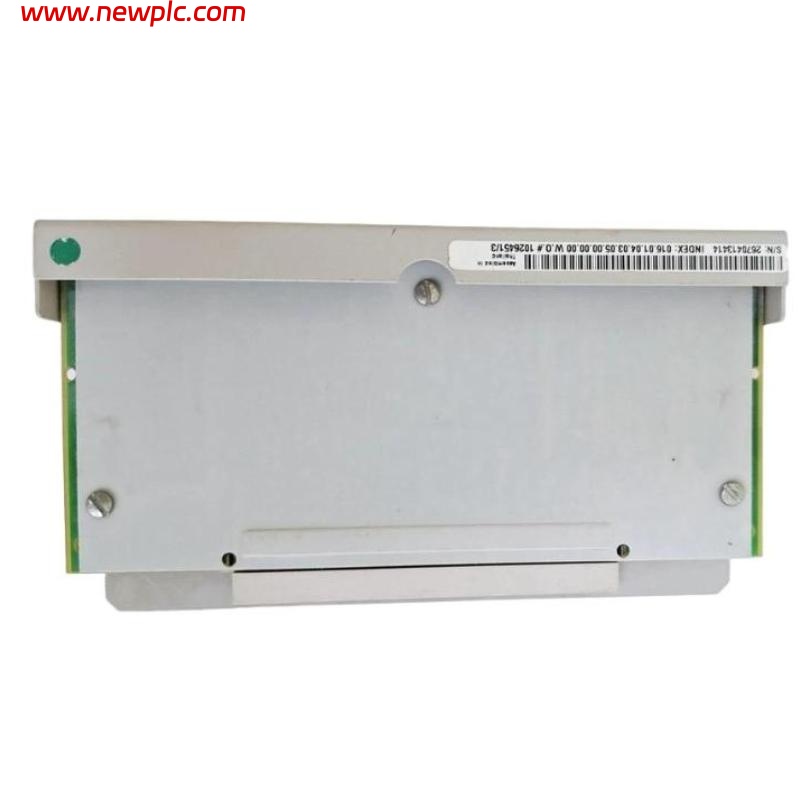

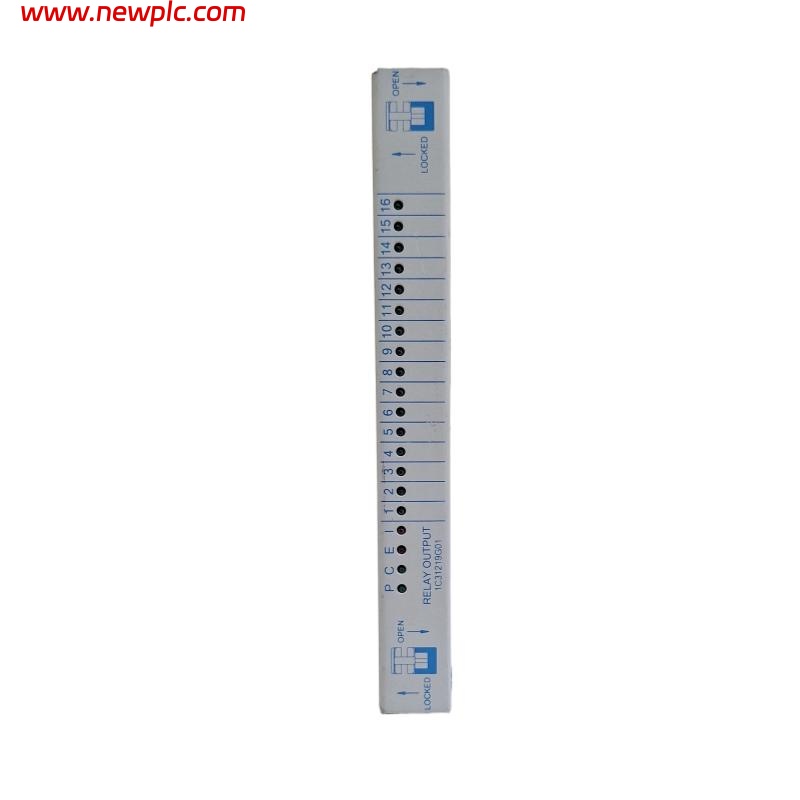

| Product Model | Ovation 1C31219G02 |
| Product Type | Relay Output Module |
| Output Channels | 16 relay output channels |
| Output Type | Dry contact relay (SPST or SPDT) |
| Rated Output Voltage | 24 VDC / 120 VAC |
| Maximum Switching Current | 2 A (resistive load) |
| Isolation Voltage | 1500 VDC channel-to-bus |
| Response Time | < 10 ms typical |
| Relay Life | 100,000 operations (mechanical) / 50,000 (electrical) |
| Power Supply | 24 VDC |
| Power Consumption | 7 W typical |
| Indicators | Channel status and power LEDs |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or rack mount |
| System Compatibility | Ovation Distributed Control System (DCS) |
| Dimensions | 121 x 250 x 102 mm |
| Weight | 0.18 kg |
FAQ
FAQ
Q1: What is the main function of the Ovation 1C31219G02 module?
A1: It controls external devices by switching signals through relay outputs, providing isolation and load control.
Q2: How many output channels does the module have?
A2: The module provides 16 independent relay output channels.
Q3: What is the maximum switching current per channel?
A3: Each channel supports up to 2 A (resistive load).
Q4: What output voltage does the module support?
A4: It supports 24 VDC or 120 VAC output voltages.
Q5: What is the module’s response time?
A5: The typical response time is less than 10 milliseconds.
Q6: Does the module have isolation protection?
A6: Yes, it provides 1500 VDC isolation between channels and the system bus.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 121 x 250 x 102 mm and weight is 0.18 kg.
Q8: Which system is this module designed for?
A8: It is designed for use with the Ovation Distributed Control System (DCS).
