Technical Specifications
| Item | Specification |
|---|---|

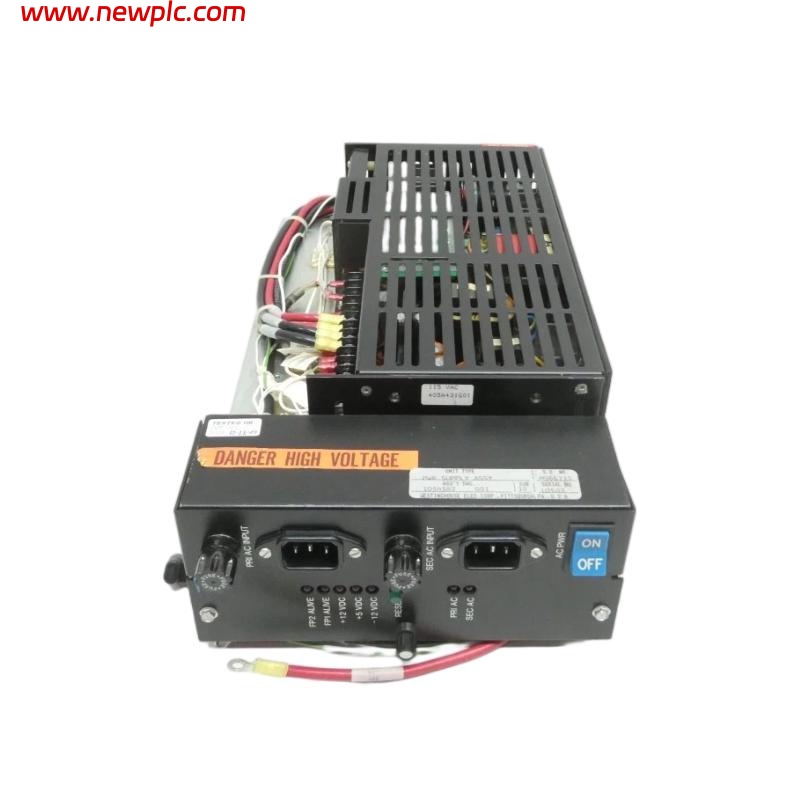

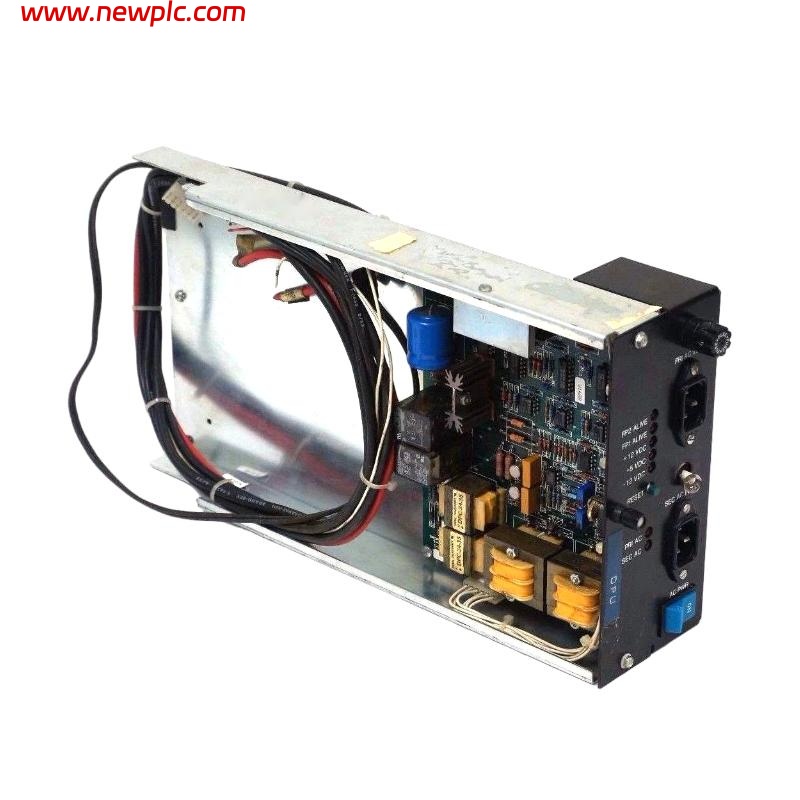

| Model | Ovation 1D54582G01 |
| Product Type | Power Supply |
| Function | AC to DC system power conversion |
| Input Voltage Range | 90–264 V AC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 48 V DC |
| Rated Output Current | 12 A |
| Output Power | 576 W |
| Regulation Type | High-efficiency switching supply |
| Efficiency | ≥ 90% |
| Output Ripple | < 150 mV |
| Voltage Regulation | ±1% |
| Isolation Rating | Reinforced isolation |
| Protection Features | Overvoltage, overload, thermal shutdown, short-circuit |
| Cooling Method | Internal forced air cooling |
| Redundancy Support | Hot-standby capable |
| Power Good Signal | Relay and logic signal outputs |
| EMC Performance | IEC 61000-6-2 / 61000-6-4 |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +80°C |
| Operating Humidity | 5–95% RH |
| Installation Method | Panel or rack mount |
| Dimensions (L × W × H) | 330 × 80 × 200 mm |
| Weight | 4.99 kg |
FAQ
FAQ
Q1: What type of systems does this power supply support?
A1: It is designed to supply regulated DC power to Ovation control and automation systems.
Q2: Does it accept a wide AC input range?
A2: Yes, it operates reliably from 90 V to 264 V AC.
Q3: Is redundancy supported in power system design?
A3: Yes, the unit can be used in redundant configurations for high-availability systems.
Q4: How is output voltage stability maintained?
A4: Precision feedback control continuously adjusts internal regulation to maintain voltage accuracy.
Q5: What happens under overload conditions?
A5: The output automatically limits current and recovers once the fault is cleared.
Q6: Is fault indication available?
A6: Yes, internal relay and logic outputs report operating status and system faults.
Q7: How is thermal management implemented?
A7: Built-in fans provide active cooling to maintain safe operating temperature.
Q8: Can the power supply run continuously under full load?
A8: Yes, it is designed for continuous duty operation in industrial environments.
