Technical Specifications
| Item | Specification |
|---|---|

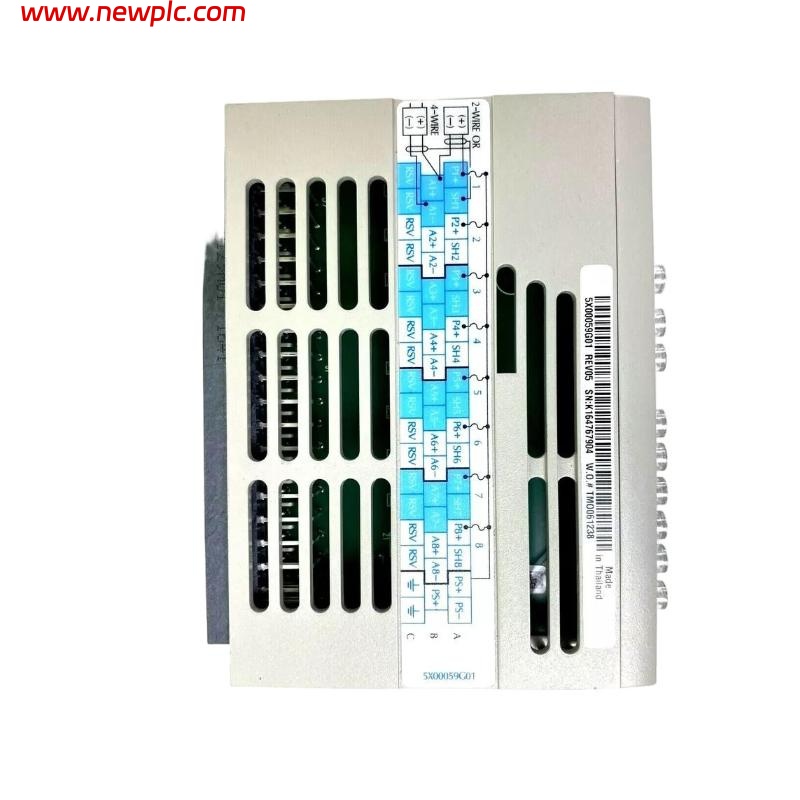

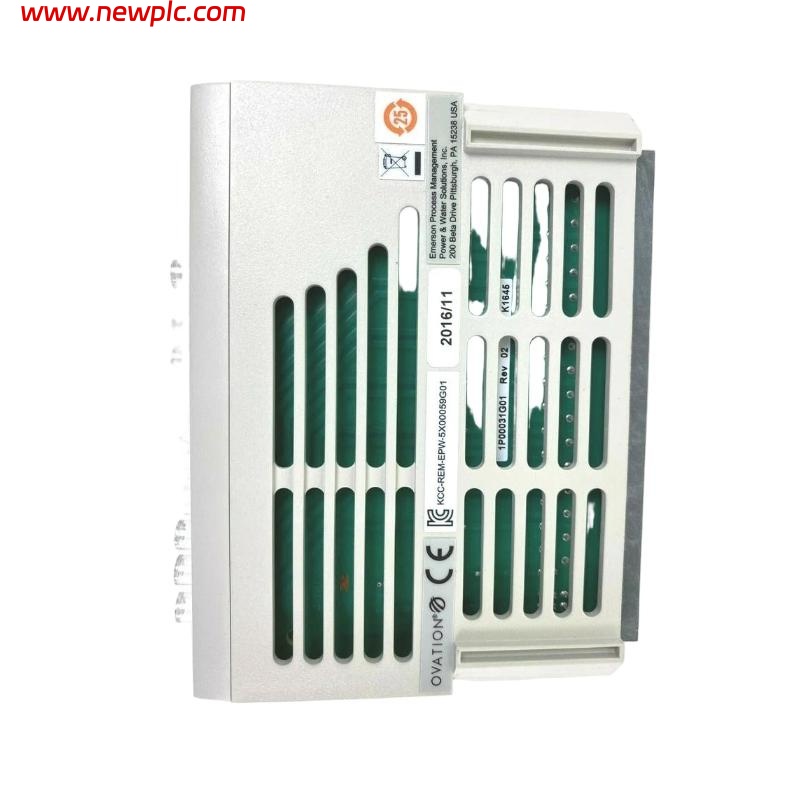

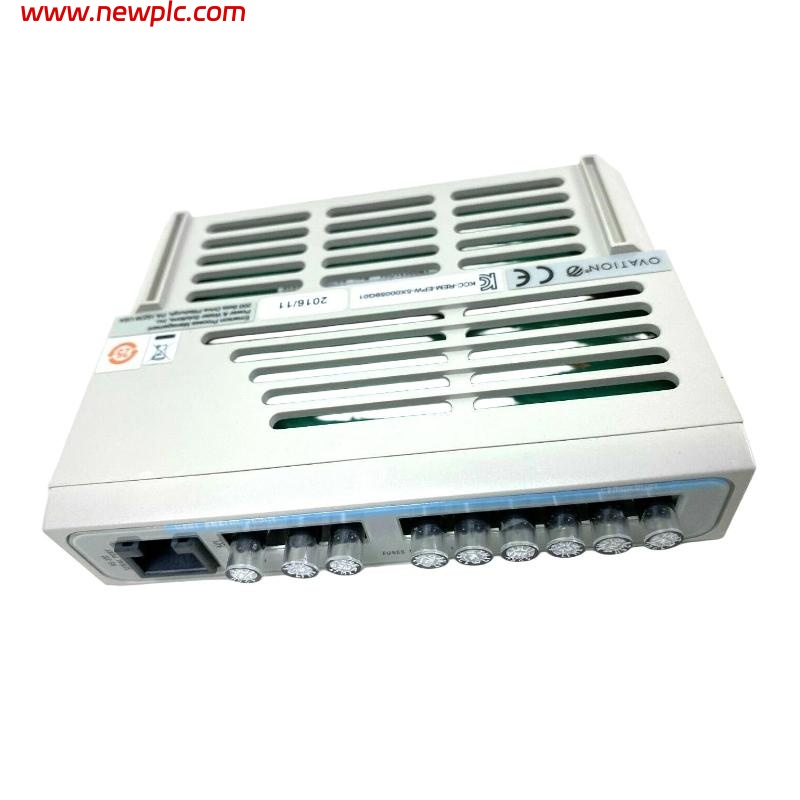

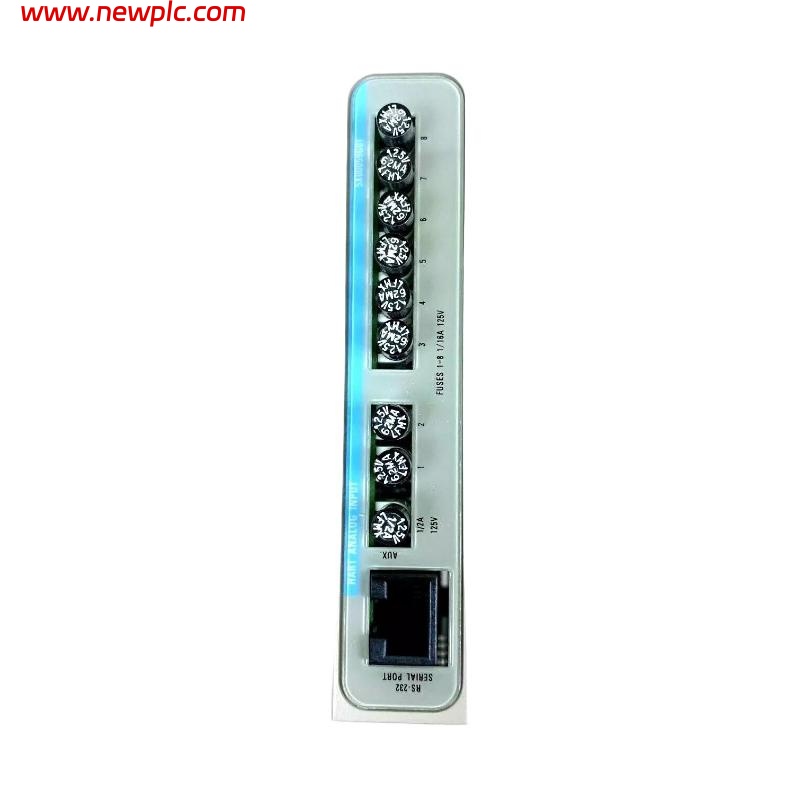

| Model | Ovation 5X00059G01 |
| Product Type | Analog Input Module |
| System | Emerson Ovation DCS |
| Function | Collects and converts analog signals from field instruments to provide accurate data for process control |
| Number of Channels | 16 analog input channels |
| Signal Type | Current or voltage signals |
| Input Range | 0–10 VDC or 4–20 mA (configurable) |
| Resolution | High-accuracy A/D conversion ensures precise signal acquisition |
| Isolation | Channel-to-bus isolation for enhanced noise immunity |
| Communication Interface | Fully compatible with Ovation system bus |
| Power Supply | 24 VDC nominal |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Material | Industrial-grade composite with high temperature and EMI resistance |
| Dimensions | 100 × 60 × 22 mm |
| Weight | 1.36 kg |
FAQ
FAQ
Q1: What is the main function of the Ovation 5X00059G01?
A: It collects analog signals from field instruments and converts them into digital data for use in control systems.
Q2: How many input channels does the module support?
A: The module supports 16 analog input channels for multi-point signal acquisition.
Q3: What types of input signals does it support?
A: It supports both voltage (0–10 VDC) and current (4–20 mA) input signals, configurable as needed.
Q4: Is the module compatible with the Ovation control system?
A: Yes, it is fully compatible with the Emerson Ovation DCS system bus.
Q5: What isolation or noise protection features does it have?
A: It includes channel-to-bus isolation to enhance system stability and noise immunity.
Q6: What is the module’s power supply requirement?
A: It operates on a nominal 24 VDC power supply.
Q7: How is the module installed?
A: It is designed for rack mounting, making it easy to integrate and maintain.
Q8: What are the module’s dimensions and weight?
A: The dimensions are 100 × 60 × 22 mm, and the weight is 1.36 kg.
