Technical Specifications
| Item | Specification |
|---|---|

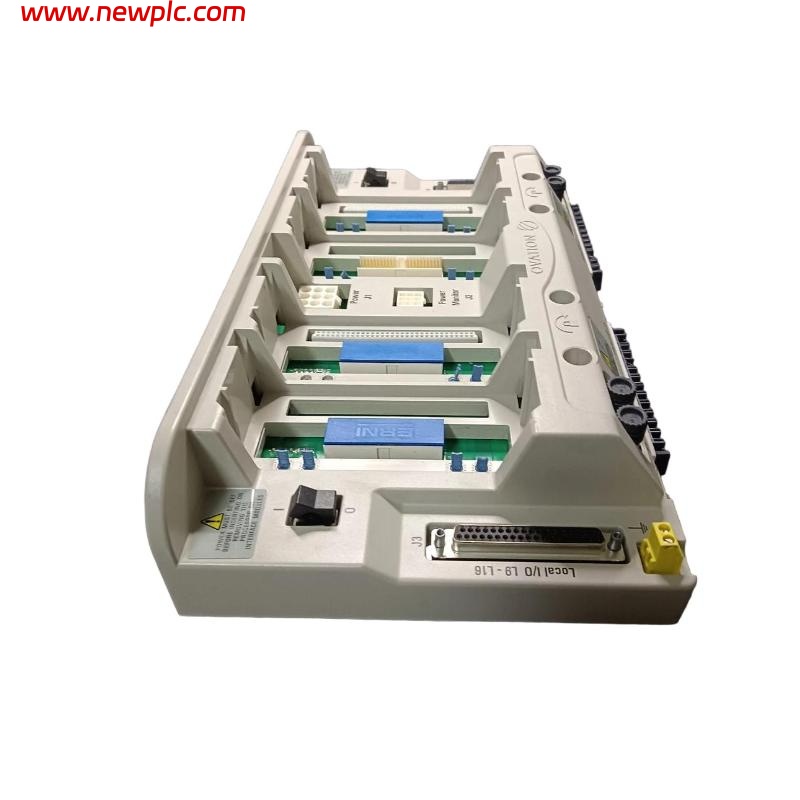

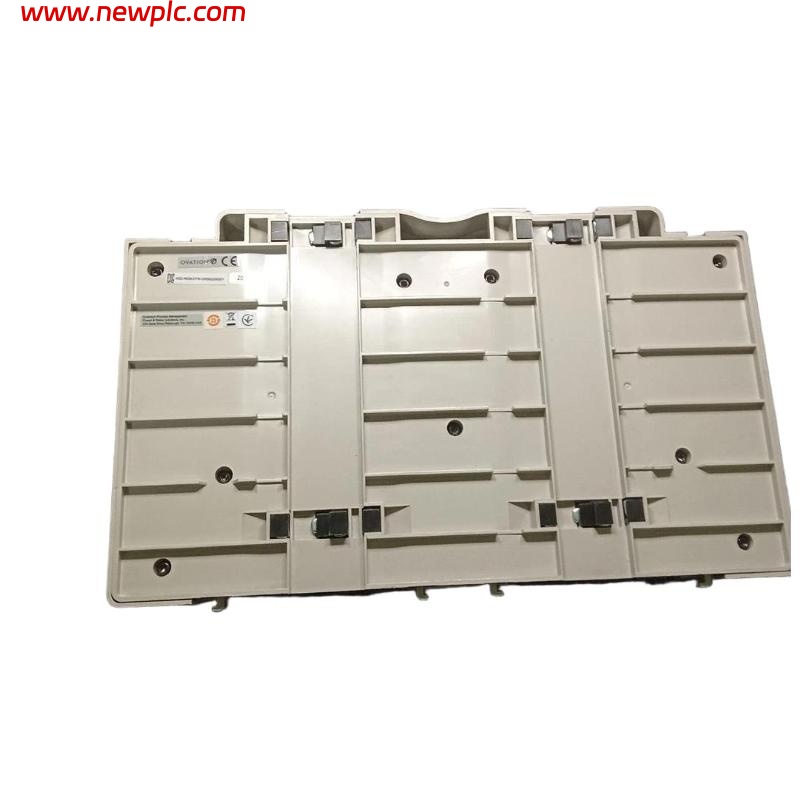

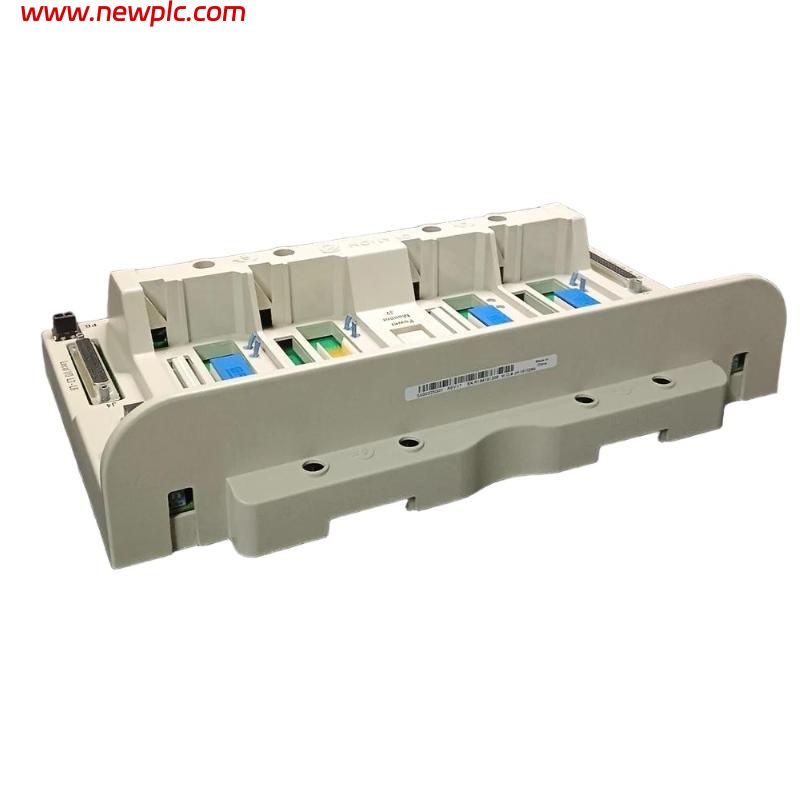

| Model | Ovation 5X00225G01 |
| Product Type | Process Control Base Assembly |
| System | Emerson Ovation DCS |
| Function | Provides a modular installation platform to support and connect various I/O modules, ensuring reliable system signal and power connections |
| Supported Module Types | Analog Input, Analog Output, Digital Input, Digital Output |
| Channel Capacity | Depends on installed module types |
| Communication Interface | Compatible with Ovation system bus |
| Power Distribution | Supports standard system power bus distribution |
| Number of Slots | 4 slots (expandable configuration) |
| Module Connection Type | Plug-in card slot design for easy maintenance and replacement |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Material | Industrial-grade metal and flame-retardant composite |
| Mounting Type | Rack-mounted |
| Dimensions | 343 x 76 x 229 mm |
| Weight | 1.16 kg |
FAQ
FAQ
Q1: What is the main function of the Ovation 5X00225G01?
A: This base assembly serves as the mounting and connection platform for multiple I/O modules, providing power and communication links within the Ovation system.
Q2: What types of modules does it support?
A: It supports Analog Input, Analog Output, Digital Input, and Digital Output modules.
Q3: Is it compatible with all Ovation system modules?
A: Yes, it is fully compatible with all Emerson Ovation series modules.
Q4: What is the installation method?
A: It uses a rack-mounted design for convenient module replacement and system expansion.
Q5: How does it handle power distribution?
A: Power is distributed through the standard Ovation power bus.
Q6: How many modules can be installed on this base?
A: The standard configuration supports four slots, with expansion options available.
Q7: Does it have noise immunity features?
A: Yes, it is designed with robust metal housing and electrical isolation for enhanced EMI protection.
Q8: What are the dimensions and weight of the base assembly?
A: The dimensions are 343 x 76 x 229 mm, and the weight is 1.16 kg.
