Technical Specifications
| Parameter | Description |
|---|---|

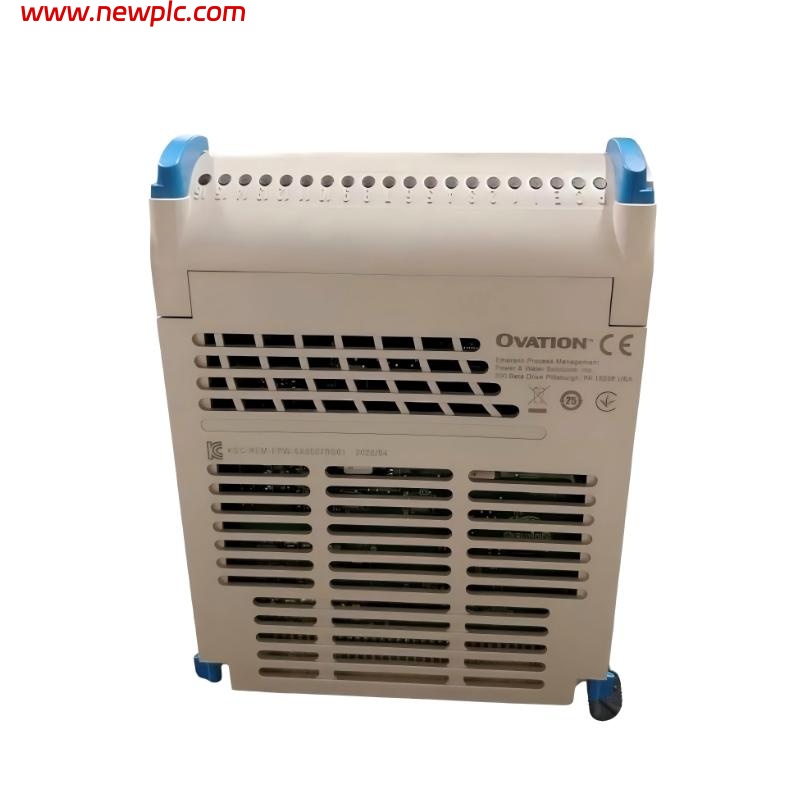

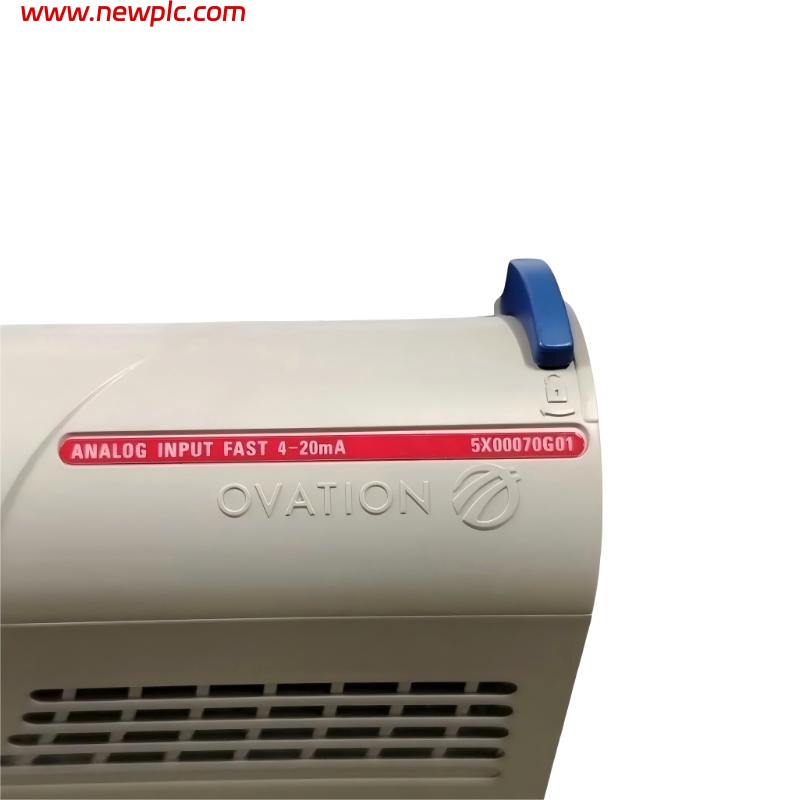

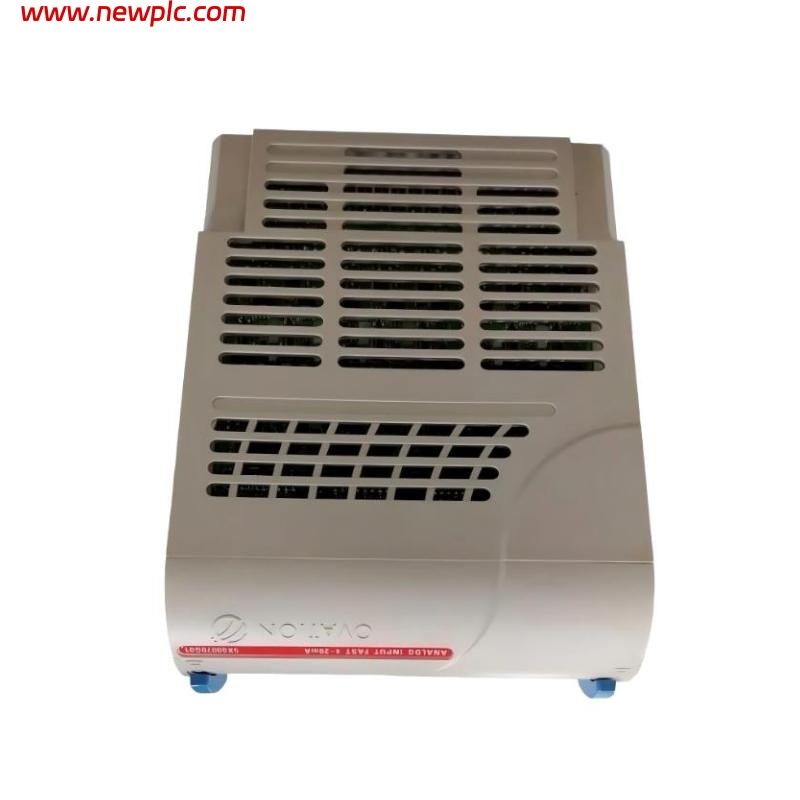

| Product Name | Analog Input Module |
| Model Number | 5X00070G01 |
| Brand | Ovation |
| Product Type | Analog Input I/O Module |
| Function | Converts analog field signals into digital data for processing by the Ovation control system |
| Number of Channels | 8 differential analog input channels |
| Input Signal Range | 4–20 mA or 0–10 V DC (software selectable) |
| Input Impedance | > 250 Ω (current), > 100 kΩ (voltage) |
| Accuracy | ±0.1% of full scale |
| Resolution | 12-bit or better A/D conversion |
| Isolation | 500 V channel-to-bus and channel-to-channel isolation |
| Sampling Rate | 10 samples per second per channel |
| Common Mode Rejection Ratio (CMRR) | > 100 dB |
| Power Supply Voltage | 24 V DC nominal |
| Power Consumption | < 4 W typical |
| Signal Filtering | Programmable digital filtering for noise suppression |
| Diagnostics | Continuous self-test and fault monitoring |
| Communication Interface | Ovation I/O system bus |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Installation | Plug-in type for standard Ovation I/O rack |
| Dimensions | 180 x 100 x 50 mm |
| Weight | 0.45 kg |
FAQ
FAQ
Q1: What is the main purpose of the Ovation 5X00070G01 Analog Input Module?
A1: The module is used to acquire analog signals from field devices such as transmitters and sensors and convert them into digital values for processing within the Ovation control system.
Q2: What types of input signals can the module accept?
A2: It supports both current (4–20 mA) and voltage (0–10 V DC) input signals, which can be configured through system software.
Q3: How many analog input channels does the module provide?
A3: The 5X00070G01 module provides 8 isolated analog input channels for simultaneous data acquisition.
Q4: Does the module provide channel-to-channel isolation?
A4: Yes, each input channel is galvanically isolated to minimize noise and prevent signal interference between channels.
Q5: What diagnostic features are available in this module?
A5: It includes continuous self-testing, open-circuit detection, and fault monitoring to ensure system reliability and safety.
Q6: How is this module connected to the Ovation system?
A6: The module interfaces directly with the Ovation I/O bus, ensuring seamless communication with the controller.
Q7: Can each channel be configured independently?
A7: Yes, each input channel can be individually configured for voltage or current mode, allowing flexibility for mixed-signal applications.
Q8: In which industries is this module commonly used?
A8: The 5X00070G01 is widely used in power generation, oil and gas, chemical processing, and other industrial automation environments requiring accurate analog signal acquisition.
