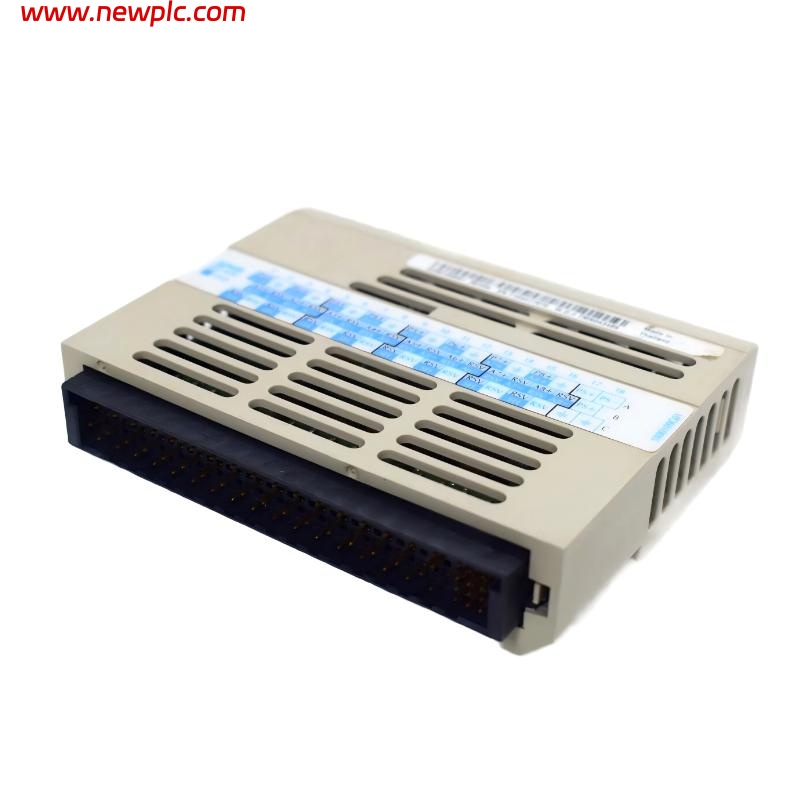

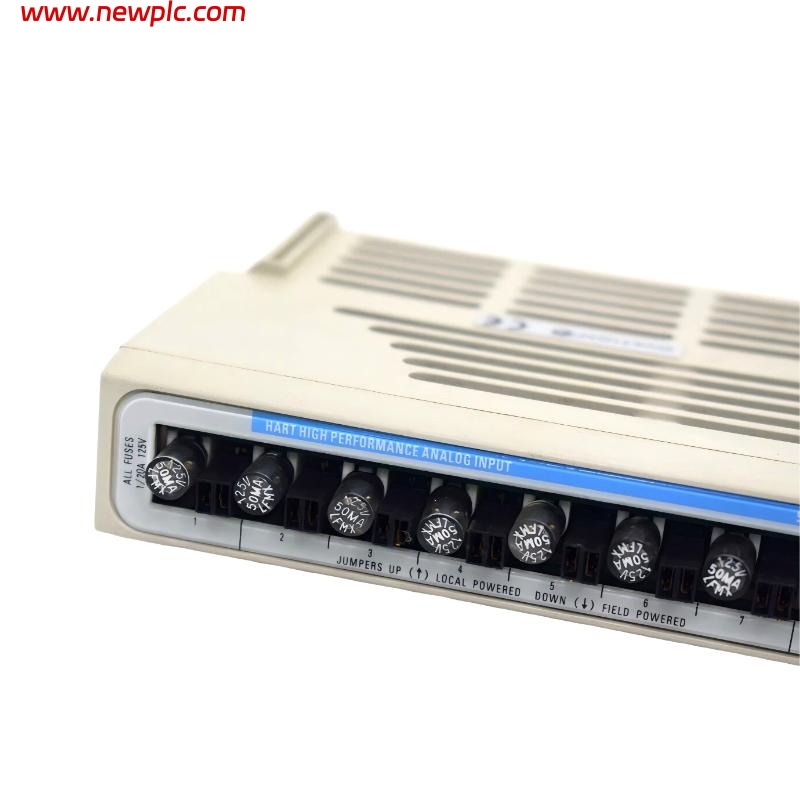

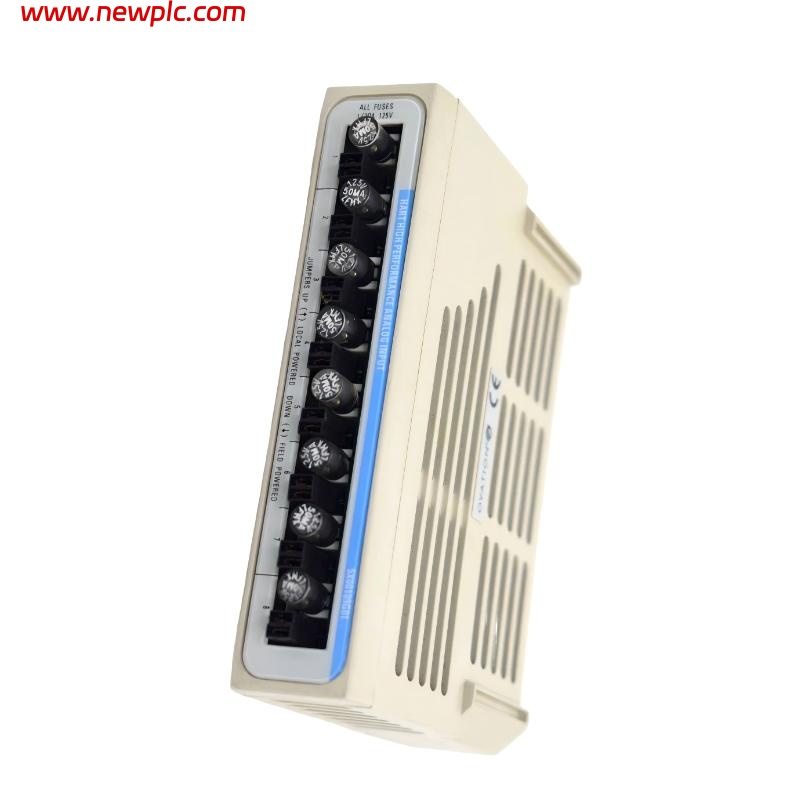

Ovation 5X00109G01 Analog Input Module

FAQ

Q1: What is the primary function of the Ovation 5X00109G01 Analog Input Module?
A1: It captures analog signals from field sensors and converts them into digital data for the Ovation control system.

Q2: What types of input signals does this module support?
A2: It supports 4–20 mA current signals and 0–10 V DC voltage signals, which can be independently configured for each channel.

Q3: How many analog input channels are available?
A3: The module provides 8 differential analog input channels.

Q4: Does the module offer electrical isolation?
A4: Yes, it provides 500 V isolation between channels and between the channels and the system bus.

Q5: Are there diagnostic capabilities in the module?
A5: Yes, it includes continuous self-test, fault monitoring, and open-circuit detection for reliability.

Q6: How is this module integrated into the Ovation system?
A6: It connects to the Ovation I/O system bus for seamless communication with the control system.

Q7: Can each channel be configured individually for current or voltage?
A7: Yes, each of the 8 channels can be independently set for either 4–20 mA or 0–10 V DC input.

Q8: In what industries is this module commonly used?
A8: It is widely used in power generation, industrial automation, and chemical processing applications requiring precise analog measurement.

5X00109G01 Analog Input Module OVATION
