Technical Specifications
| Parameter | Description |
|---|---|

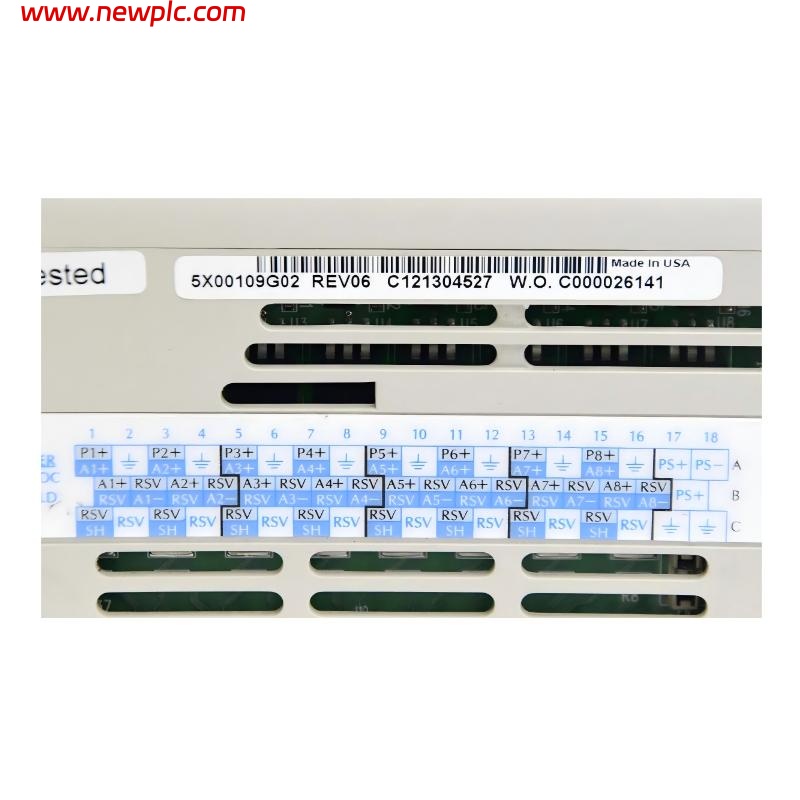

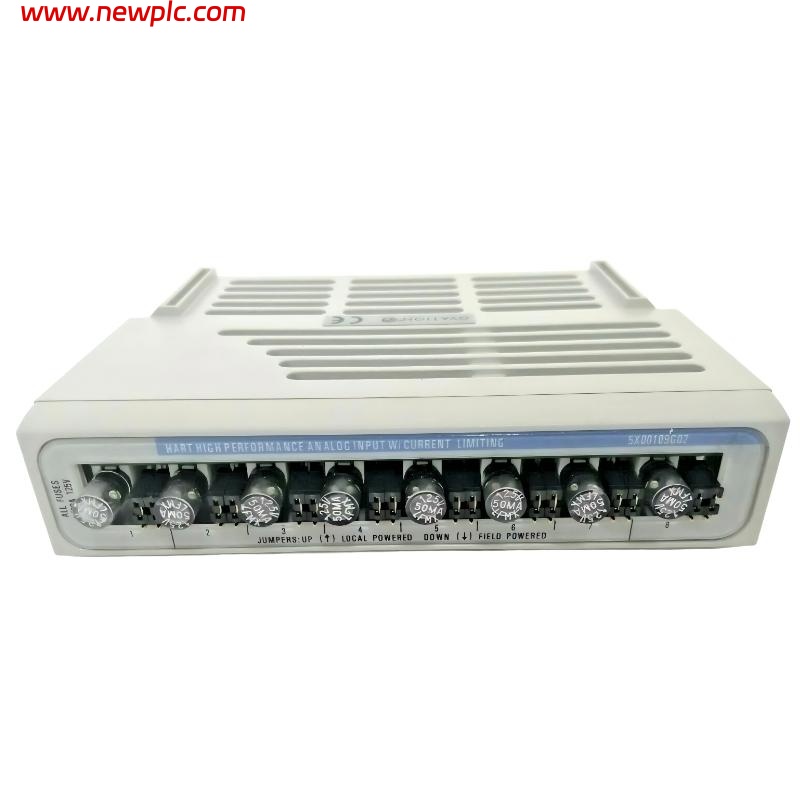

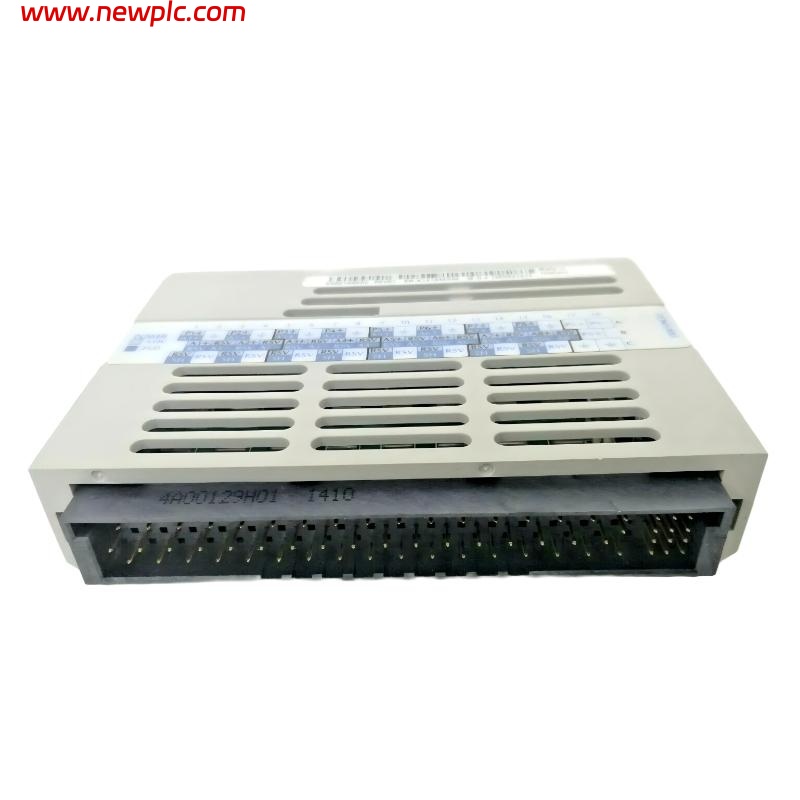

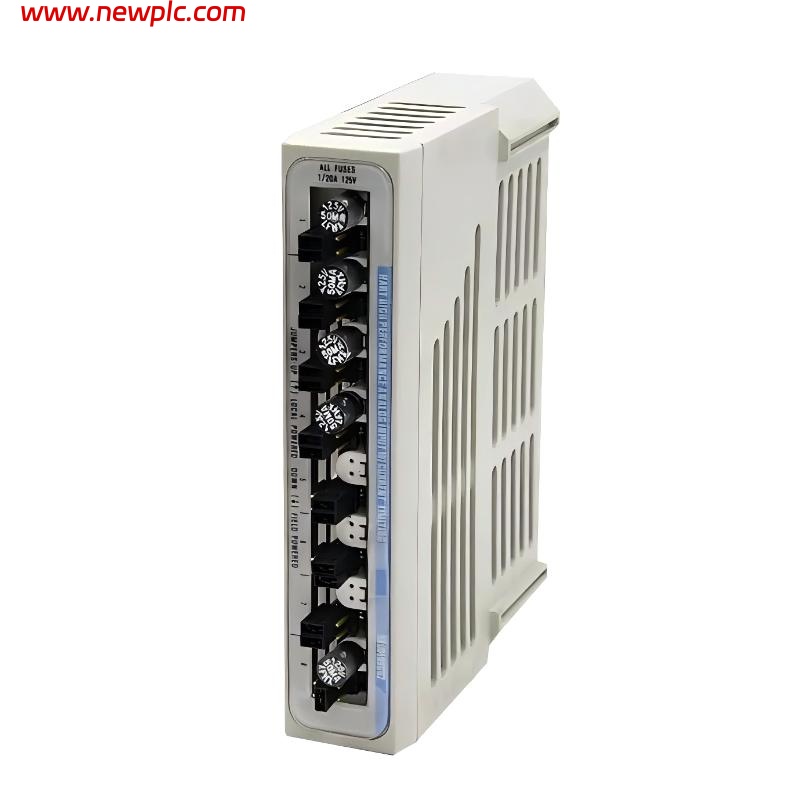

| Product Name | High Performance Analog Input Module |
| Model Number | 5X00109G02 |
| Brand | Ovation |
| Product Type | Analog Input I/O Module |
| Function | Converts high-precision analog signals from field devices into digital data for Ovation control system processing |
| Number of Channels | 8 differential analog input channels |
| Input Signal Range | 4–20 mA or 0–10 V DC (individually configurable) |
| Input Impedance | > 250 Ω (current), > 100 kΩ (voltage) |
| Accuracy | ±0.05% of full scale |
| Resolution | 16-bit A/D conversion |
| Isolation | 1000 V channel-to-bus and channel-to-channel isolation |
| Sampling Rate | Up to 100 samples per second per channel |
| Common Mode Rejection Ratio (CMRR) | > 120 dB |
| Power Supply Voltage | 24 V DC nominal |
| Power Consumption | < 6 W typical |
| Signal Filtering | Programmable digital filtering for noise suppression |
| Diagnostics | Continuous self-test and fault monitoring |
| Communication Interface | Ovation I/O system bus |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Installation | Plug-in type for standard Ovation I/O rack |
| Dimensions | 100 × 160 × 220 mm |
| Weight | 0.145 kg |
FAQ
FAQ
Q1: What is the purpose of the Ovation 5X00109G02 module?
A1: It converts high-precision analog signals from field devices into digital data for the Ovation control system.
Q2: How many channels does this module have?
A2: The module provides 8 differential analog input channels.
Q3: Can each channel handle different signal types?
A3: Yes, each channel can be independently configured for 4–20 mA or 0–10 V DC input.
Q4: Does this module provide isolation for safety and signal integrity?
A4: Yes, it offers 1000 V isolation between channels and between channels and the system bus.
Q5: What is the accuracy of this high-performance module?
A5: The module achieves ±0.05% full-scale accuracy.
Q6: What is the resolution of the A/D conversion?
A6: It provides 16-bit analog-to-digital conversion for precise measurement.
Q7: Are there diagnostics built into the module?
A7: Yes, it includes continuous self-test and fault monitoring to ensure reliable operation.
Q8: In which applications is this module typically used?
A8: It is commonly used in high-precision industrial automation, power generation, and process control systems.
