Technical Specifications
| Parameter | Description |
|---|---|

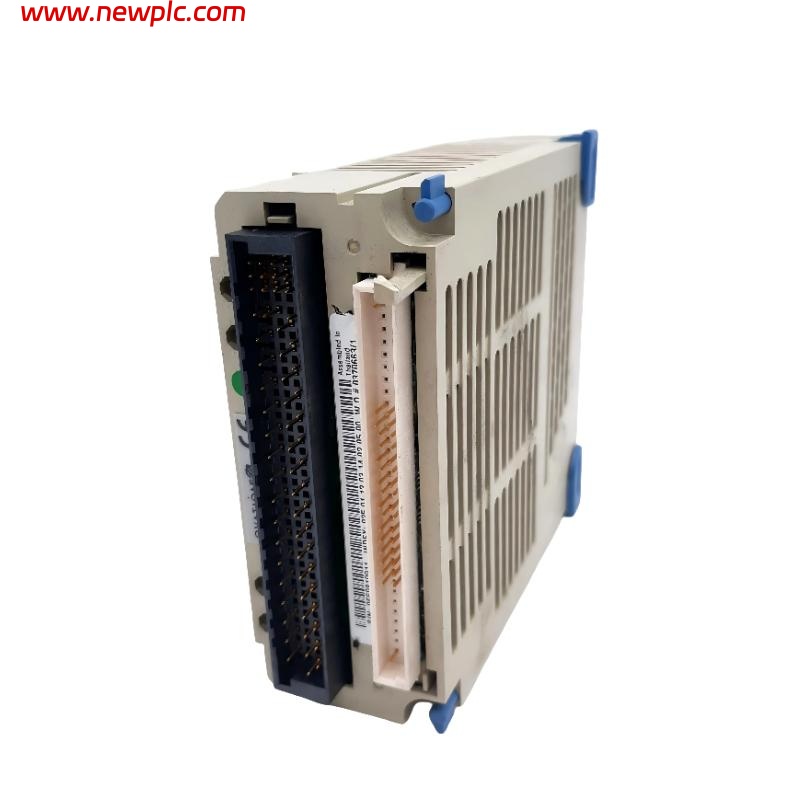

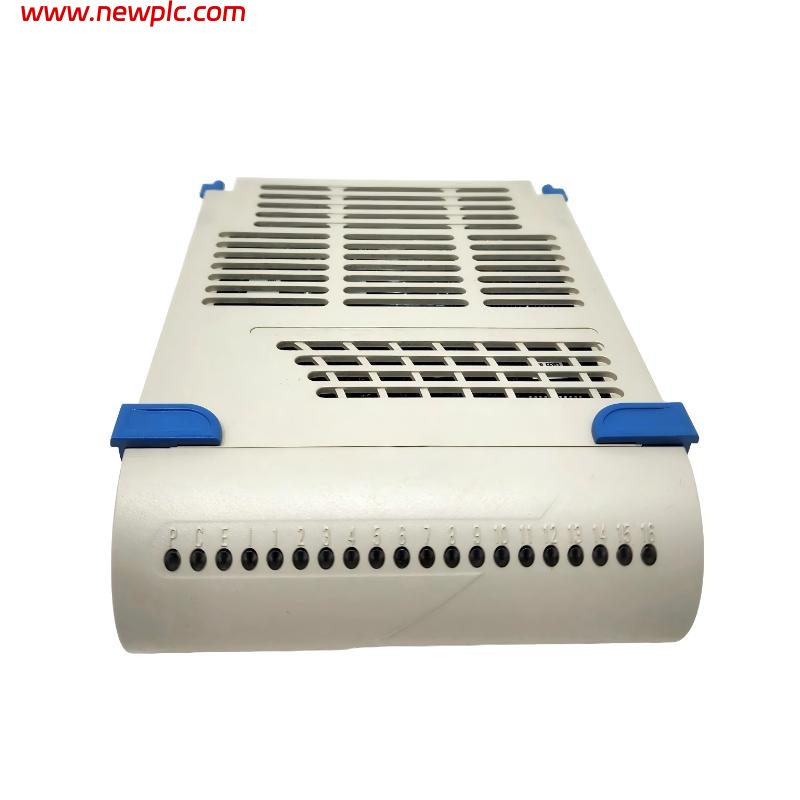

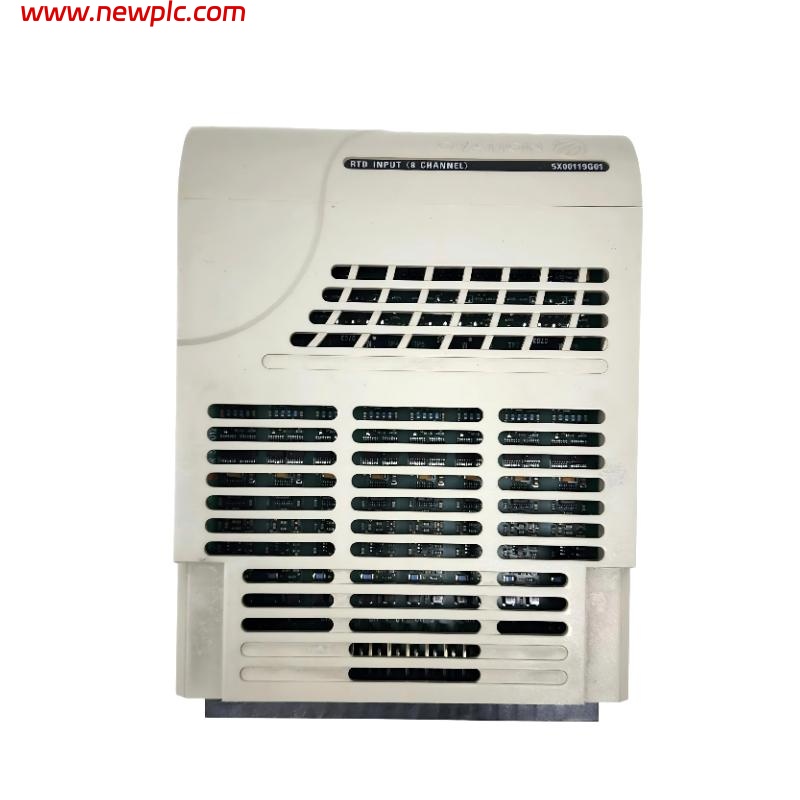

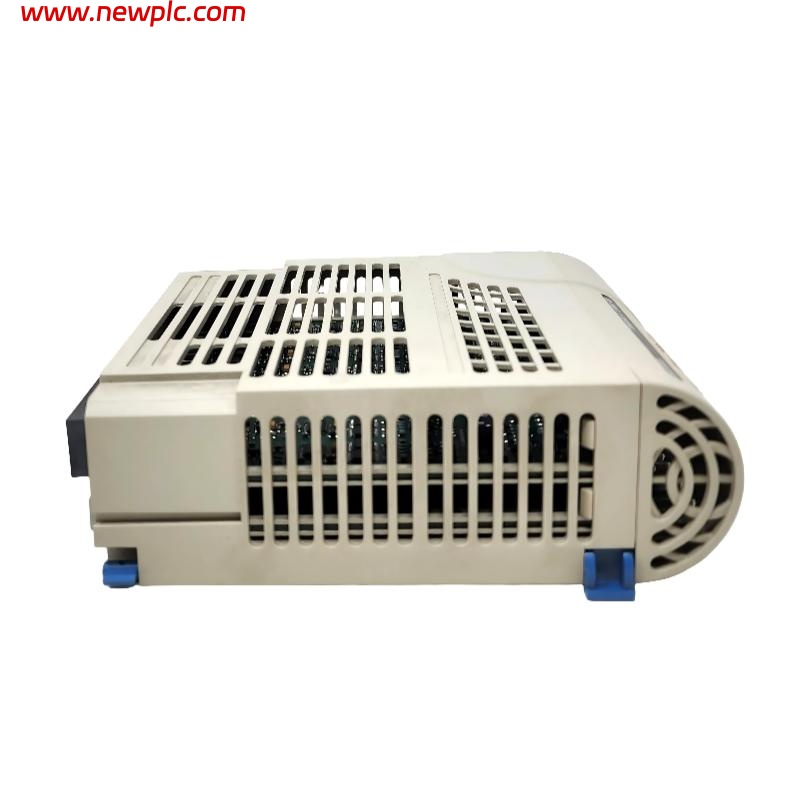

| Product Name | 8 Channel RTD Input Module |
| Model Number | 5X00119G01 |
| Brand | Ovation |
| Product Type | RTD (Resistance Temperature Detector) Input Module |
| Function | Measures and converts resistance temperature signals from RTDs into digital data for Ovation control system |
| Number of Channels | 8 channels |
| Supported RTD Types | Pt100, Pt1000, and configurable 2-wire, 3-wire, 4-wire connections |
| Measurement Range | -200°C to +850°C depending on RTD type |
| Accuracy | ±0.1°C typical |
| Resolution | 16-bit A/D conversion |
| Input Impedance | > 10 MΩ per channel |
| Sampling Rate | Up to 10 samples per second per channel |
| Common Mode Rejection Ratio (CMRR) | > 120 dB |
| Isolation | 1000 V channel-to-bus and channel-to-channel isolation |
| Diagnostics | Continuous self-test and open/short circuit detection |
| Communication Interface | Ovation I/O system bus |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% non-condensing |
| Installation | Plug-in type for standard Ovation I/O rack |
| Dimensions | 100 × 160 × 220 mm |
FAQ
FAQ
Q1: What is the primary function of the 5X00119G01 module?
A1: It measures resistance temperature signals from RTDs and converts them into digital data for the Ovation control system.
Q2: How many RTD channels does the module support?
A2: The module supports 8 independent RTD input channels.
Q3: Which types of RTDs are compatible with this module?
A3: It supports Pt100 and Pt1000 RTDs with 2-wire, 3-wire, and 4-wire configurations.
Q4: Does the module provide isolation for safety?
A4: Yes, it provides 1000 V isolation between channels and between channels and the system bus.
Q5: What is the measurement accuracy of this RTD module?
A5: The typical measurement accuracy is ±0.1°C.
Q6: Are diagnostics available for fault detection?
A6: Yes, the module includes continuous self-test and open/short circuit detection.
Q7: What is the sampling rate per channel?
A7: Each channel can be sampled up to 10 times per second.
Q8: In which applications is this module typically used?
A8: It is commonly used in industrial process control, power generation, and other applications requiring precise temperature measurement.
