Technical Specifications
| Item | Specification |
|---|---|

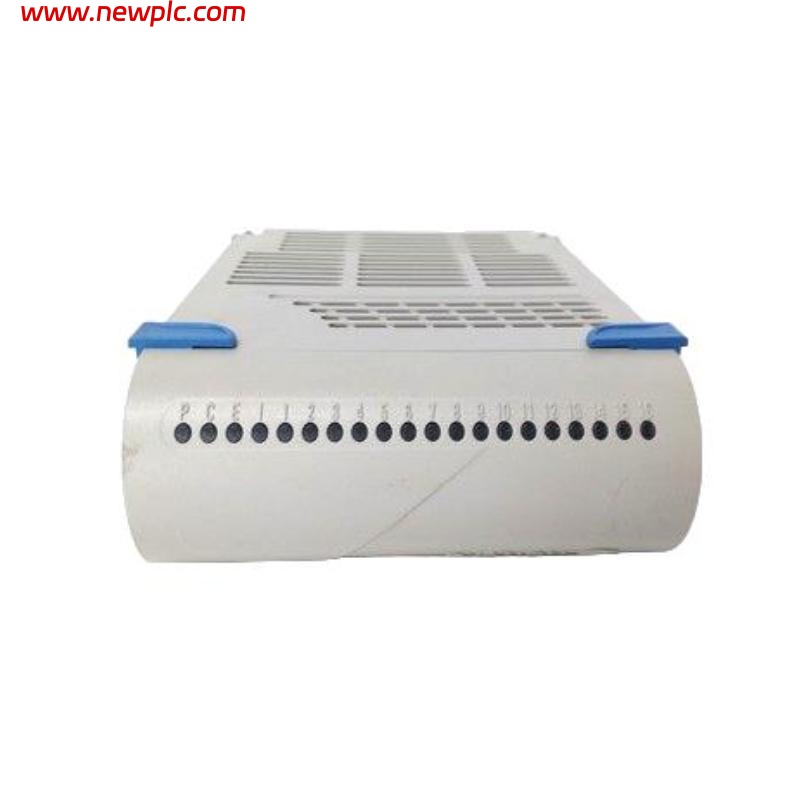

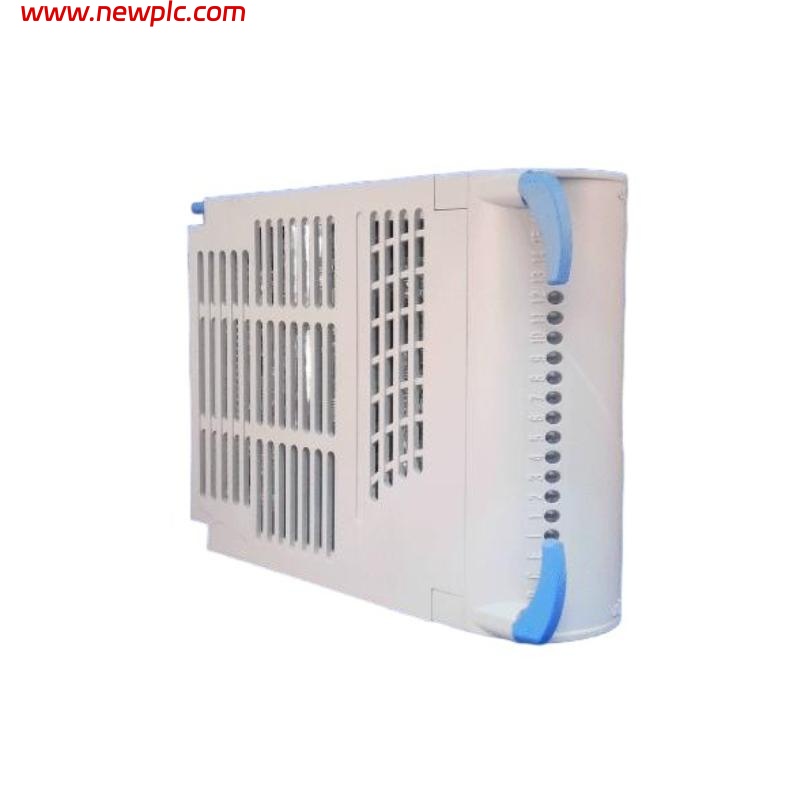

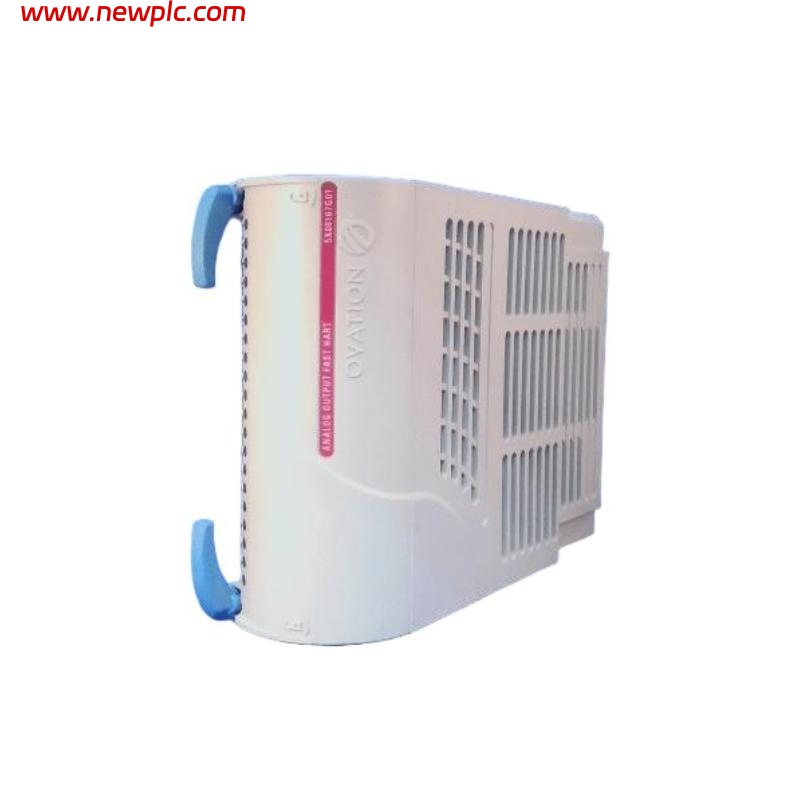

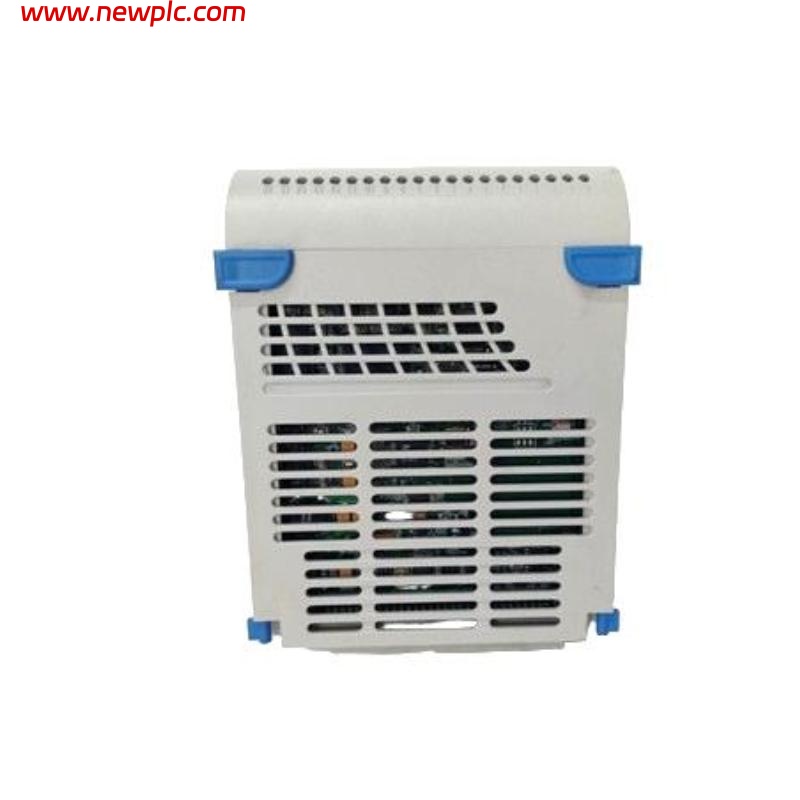

| Product Model | Ovation 5X00167G01 |
| Product Type | Analog Output Module |
| Output Channels | 8 isolated channels |
| Output Signal Type | 4–20 mA or 0–10 VDC (configurable) |
| Resolution | 12-bit |
| Accuracy | ±0.1% of full scale |
| Isolation Voltage | 1500 VDC channel-to-bus |
| Response Time | < 2 ms |
| Power Supply | 24 VDC |
| Power Consumption | 8 W typical |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | DIN rail or rack mount |
| Indicators | Channel and power status LEDs |
| System Compatibility | Ovation Distributed Control System (DCS) |
| Dimensions | 250 × 40 × 180 mm |
| Weight | 1.3 kg |
FAQ
FAQ
Q1: What is the main function of the Ovation 5X00167G01 module?
A1: It converts digital control signals into analog current or voltage outputs to drive field devices.
Q2: What output types does the module support?
A2: It supports both 4–20 mA and 0–10 VDC analog output types.
Q3: How many output channels are available on the module?
A3: The module provides 8 isolated analog output channels.
Q4: What is the accuracy of the module’s output?
A4: The output accuracy is ±0.1% of full scale.
Q5: What is the response time of the module?
A5: The response time is less than 2 milliseconds.
Q6: How can the module be installed?
A6: It can be installed using a DIN rail or rack mounting.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 250 × 40 × 180 mm and weight is 1.3 kg.
Q8: Which systems is the module compatible with?
A8: It is compatible with the Ovation Distributed Control System (DCS).
