Technical Specifications
| Parameter | Specification |
|---|---|

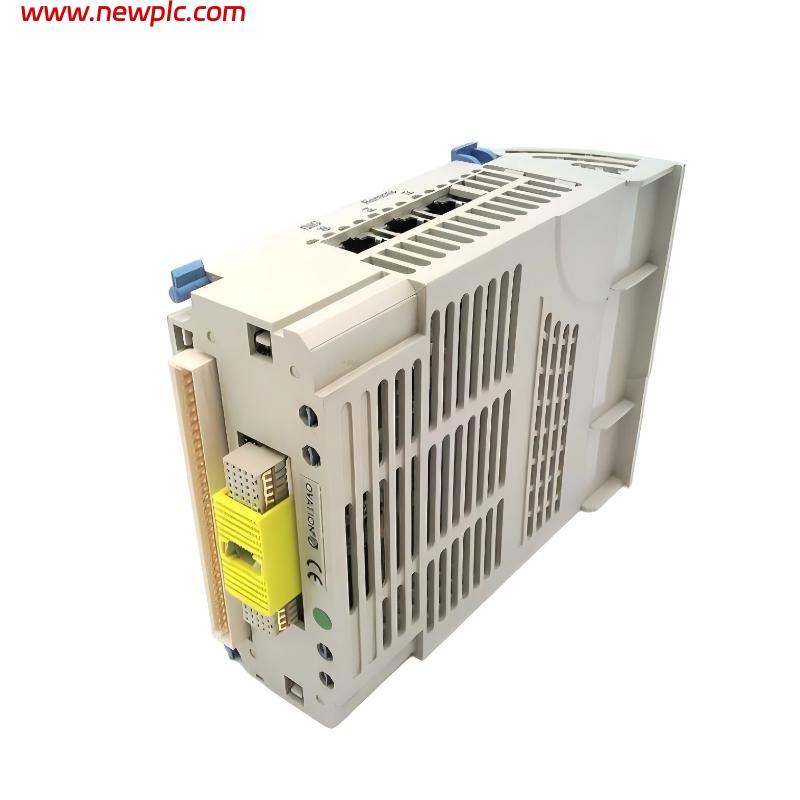

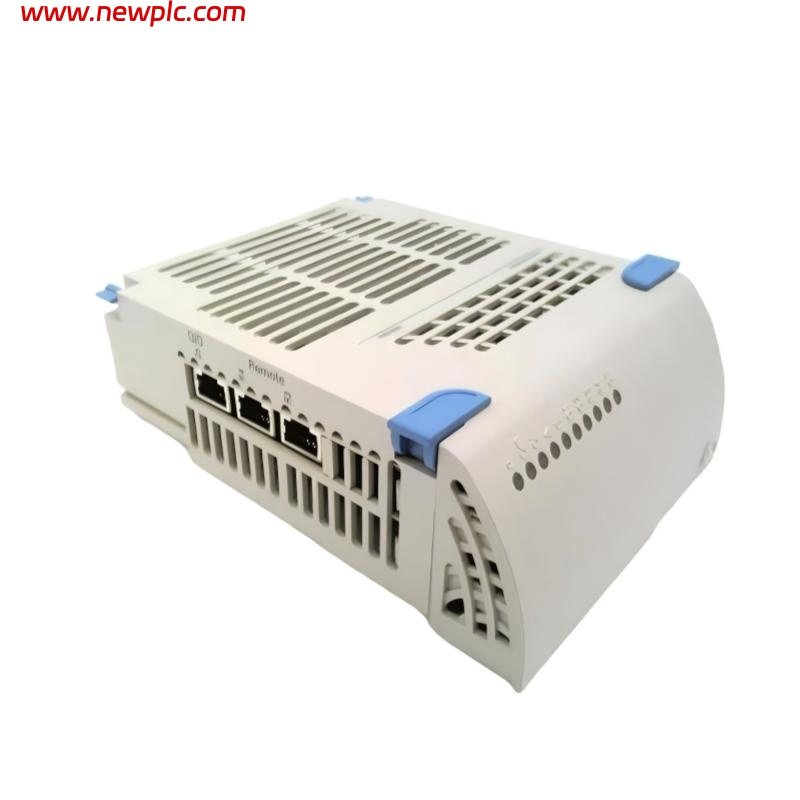

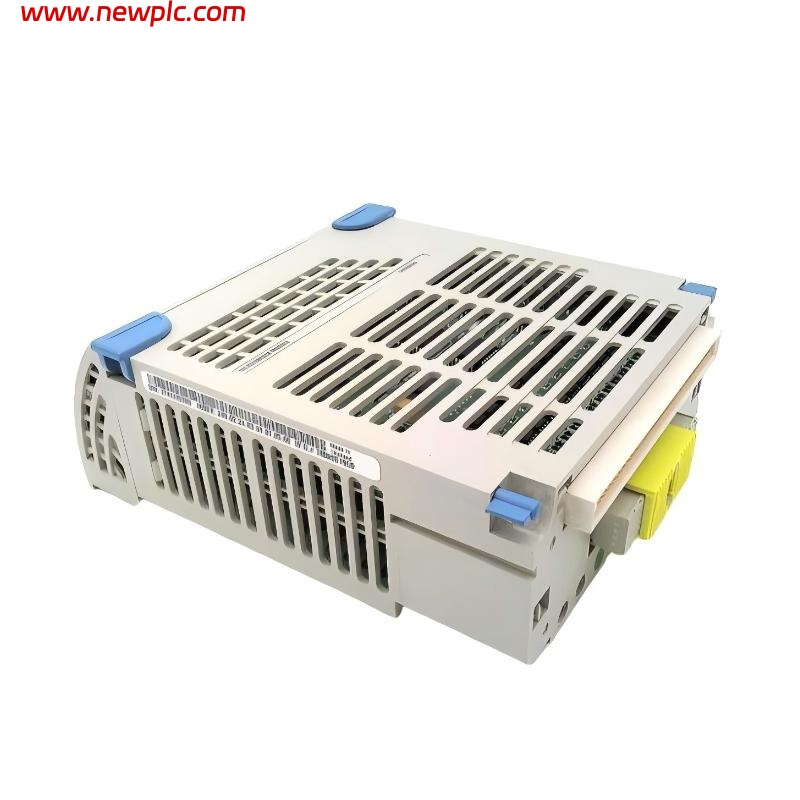

| Model | Ovation 5X00226G02 |
| Type | I/O Interface Module |
| Function | Provides communication and interface between Ovation control system and field devices |
| Input/Output Channels | Configurable for digital or analog I/O |
| Digital Inputs | Configurable discrete inputs |
| Digital Outputs | Configurable discrete outputs |
| Analog Inputs | Configurable analog channels, 4–20 mA or 0–10 V input range |
| Analog Outputs | Configurable analog channels, 4–20 mA or 0–10 V output range |
| Communication Interface | Ovation Network |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | <5 W |
| Status Indication | LEDs for channel and module status |
| Diagnostics Features | Input/output fault detection, communication errors monitoring |
| Mounting Type | DIN-rail or card rack installation |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (HxWxD) | 180 × 120 × 45 mm |
| Weight | 0.34 kg |
FAQ
FAQ
Q1: What types of I/O are supported by the module?
A1: It supports both digital and analog input/output channels.
Q2: How many digital inputs and outputs can the module handle?
A2: The module supports configurable discrete digital inputs and outputs.
Q3: What is the range for analog inputs and outputs?
A3: Analog channels can handle 4–20 mA or 0–10 V signals.
Q4: Can this module detect faults in connected devices?
A4: Yes, it provides diagnostics for I/O faults and communication errors.
Q5: How does the module interface with the Ovation control system?
A5: It communicates through the Ovation Network interface.
Q6: Are the I/O channels configurable?
A6: Yes, each channel can be configured for either digital or analog operation.
Q7: Does the module provide visual status indication?
A7: Yes, LEDs show the status of individual channels and the overall module.
Q8: What are the mounting options for this module?
A8: It can be installed on a DIN-rail or within a card rack.
