Technical Specifications
| Parameter | Specification |
|---|---|

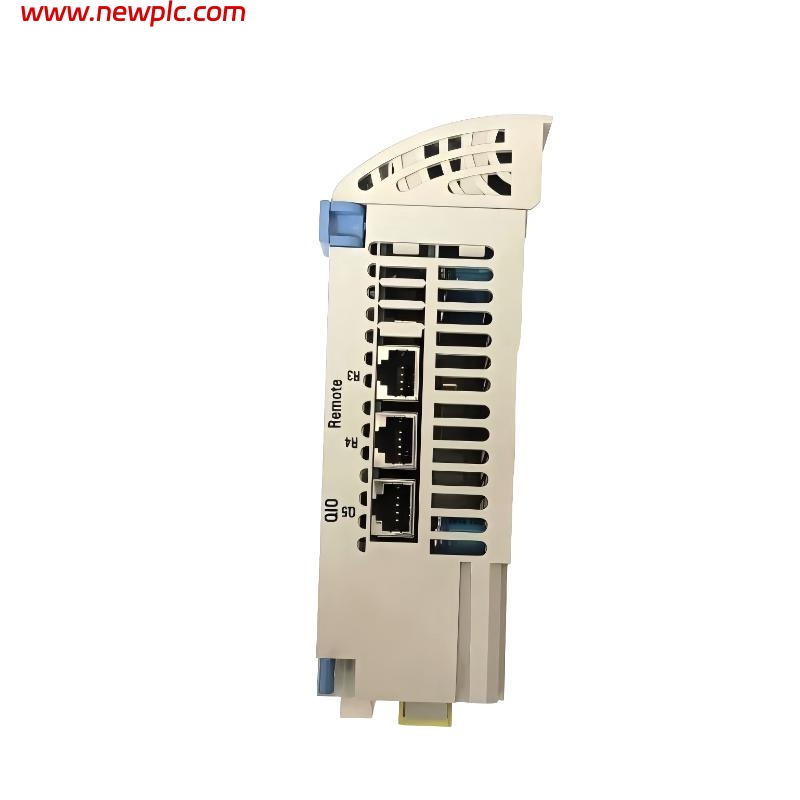

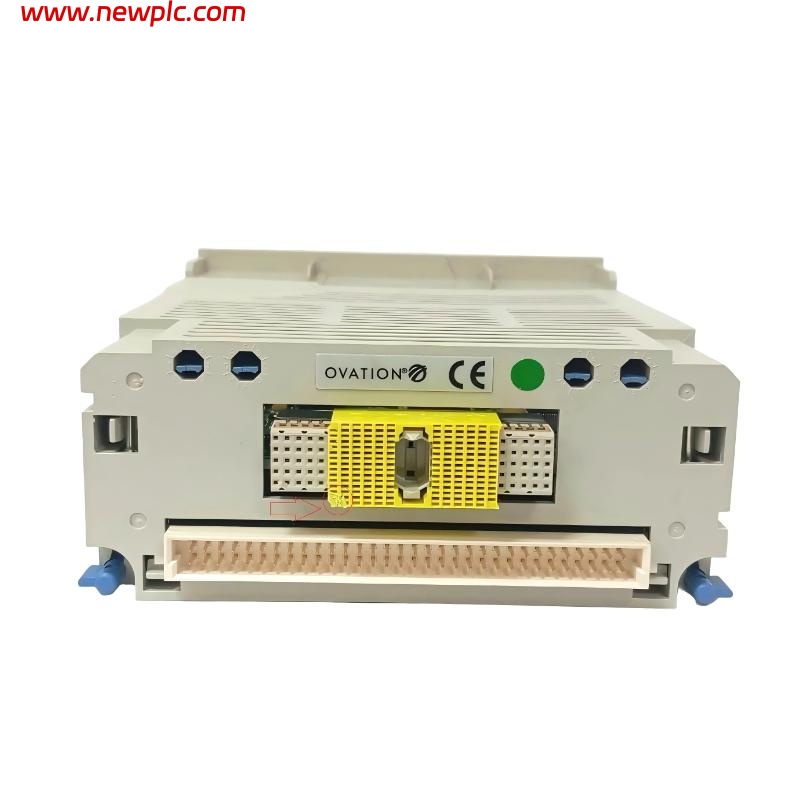

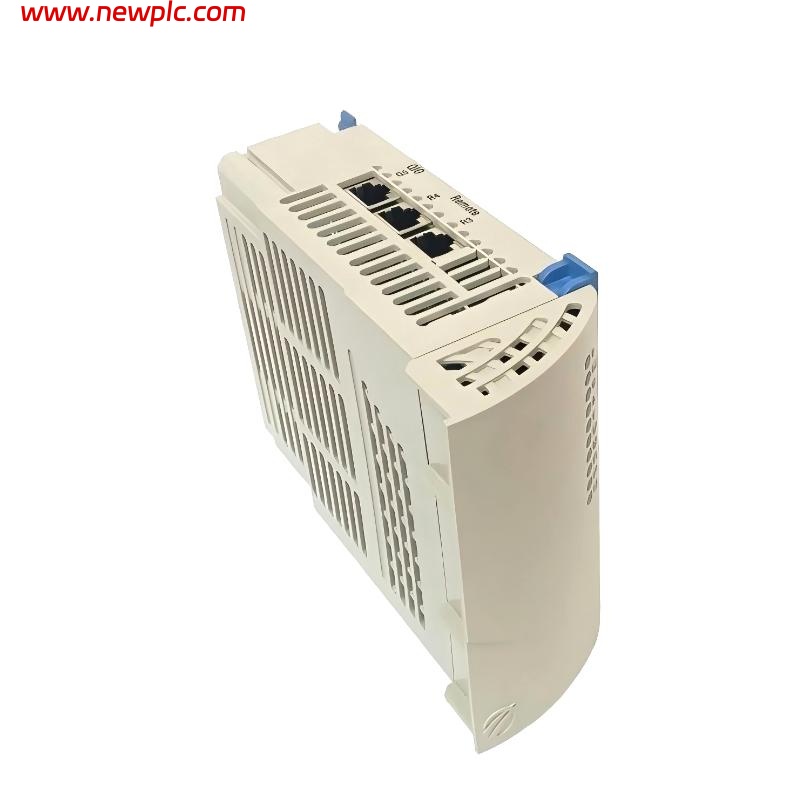

| Model | Ovation 5X00226G01 |
| Type | I/O Interface Module |
| Function | Provides communication and interface between Ovation control system and field devices |
| Input/Output Channels | Configurable for digital or analog I/O |
| Digital Inputs | Up to 16 discrete inputs |
| Digital Outputs | Up to 16 discrete outputs |
| Analog Inputs | 4–8 channels, 4–20 mA or 0–10 V input range |
| Analog Outputs | 4–8 channels, 4–20 mA or 0–10 V output range |
| Communication Interface | Ovation Network |
| Power Supply Voltage | 24 VDC nominal |
| Power Consumption | <5 W |
| Status Indication | LEDs for channel and module status |
| Diagnostics Features | Input/output fault detection, communication errors monitoring |
| Mounting Type | DIN-rail or card rack installation |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (HxWxD) | 180 × 120 × 45 mm |
| Weight | 0.295 kg |
FAQ
FAQ
Q1: What types of I/O does the module support?
A1: It supports both digital and analog input/output channels.
Q2: How many digital inputs and outputs are available?
A2: The module provides up to 16 digital inputs and 16 digital outputs.
Q3: What is the range for analog inputs and outputs?
A3: Analog channels support 4–20 mA or 0–10 V signals.
Q4: Can the module detect faults in the connected devices?
A4: Yes, it provides diagnostics for I/O faults and communication errors.
Q5: How does the module communicate with the Ovation system?
A5: It uses the Ovation Network interface for communication.
Q6: Is the module configurable for different types of I/O?
A6: Yes, channels are configurable for either digital or analog use.
Q7: Does the module provide status indication for each channel?
A7: Yes, LEDs indicate the status of each channel and the overall module.
Q8: What mounting options are available for this module?
A8: It can be mounted on a DIN-rail or within a card rack.
