Technical Specifications
| Parameter | Description |
|---|---|

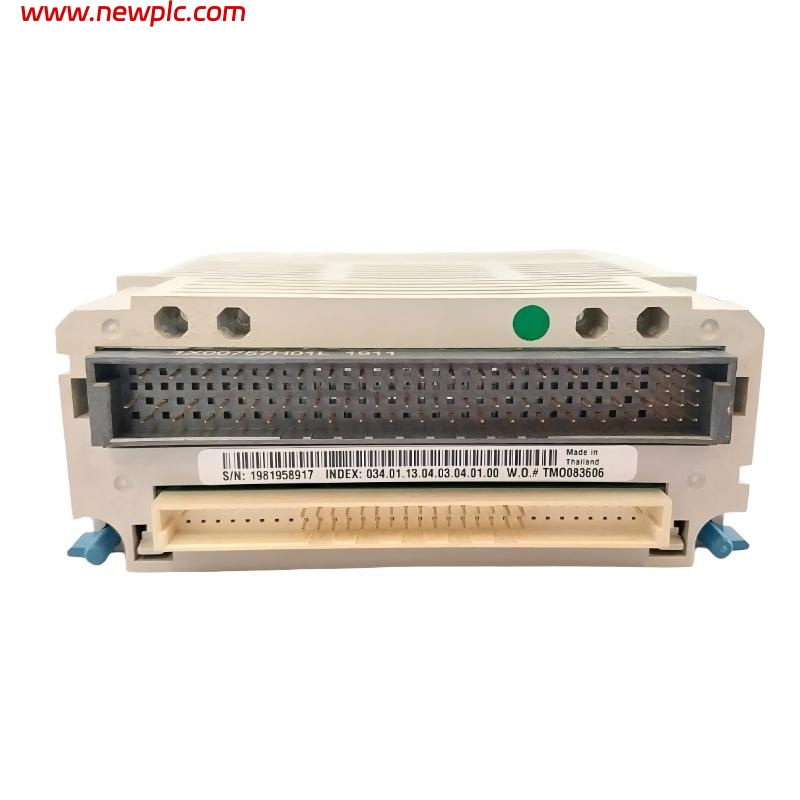

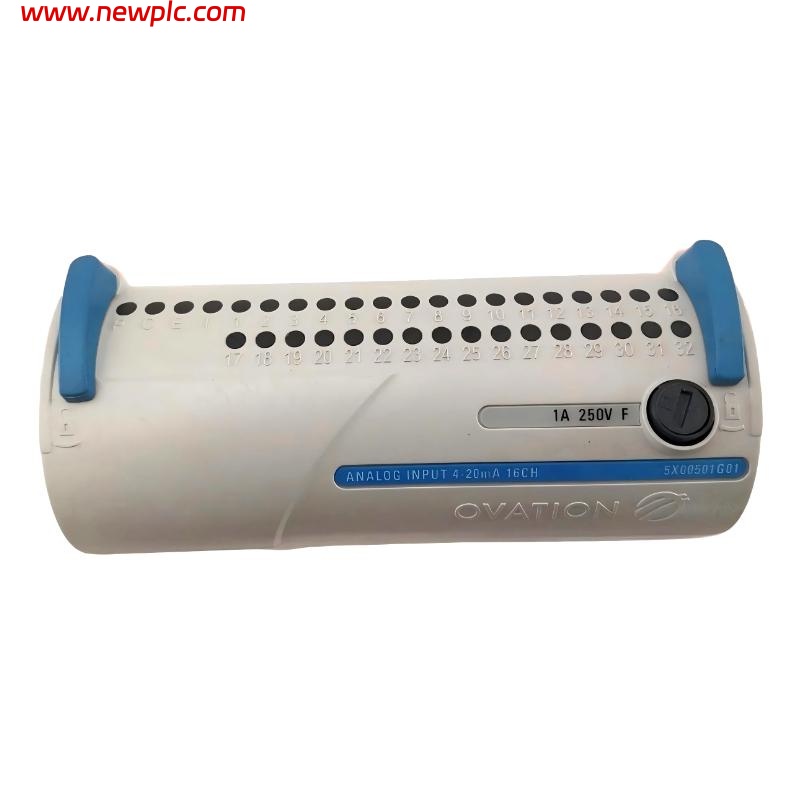

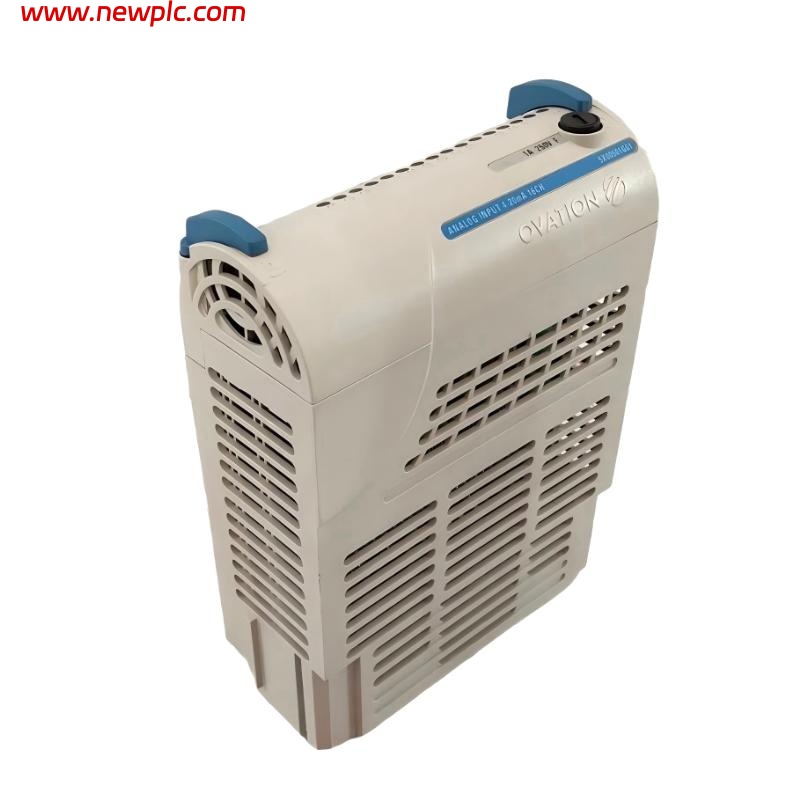

| Model | Ovation 5X00501G01 Analog Input Module |
| Function | Acquires and processes analog signals for Ovation DCS |
| Input Channels | 16 independent analog input channels |
| Input Signal Type | 4–20 mA, 0–10 V, or configurable voltage/current signals |
| Resolution | High-resolution ADC for precise measurement |
| Accuracy | ±0.1% of full scale typical |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Filtering | Anti-aliasing filters to minimize noise |
| Diagnostics | Channel fault detection, open/short circuit detection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Installation | Standard Ovation I/O rack slot |
| Compatibility | Fully compatible with Ovation control and I/O systems |
| Dimensions | 41 × 159 × 108 mm |
| Weight | 0.32 kg |
FAQ
FAQ
Q1: What types of analog signals can the 5X00501G01 module process?
A1: It can handle 4–20 mA, 0–10 V, or configurable current and voltage signals from field devices.
Q2: How many channels does the module support?
A2: It supports 16 independent analog input channels for simultaneous measurements.
Q3: Does the module provide isolation between channels?
A3: Yes, each channel is isolated from other channels and the system bus to prevent interference or faults.
Q4: How is signal accuracy ensured?
A4: High-resolution ADCs and anti-aliasing filters provide precise measurement and minimize noise.
Q5: Can the module detect wiring or sensor faults?
A5: Yes, it includes diagnostics to detect open circuits, shorts, and abnormal input conditions.
Q6: Is the module compatible with all Ovation I/O racks?
A6: It is compatible with standard Ovation I/O rack slots and integrates with the Ovation DCS system.
Q7: Can the module be used in redundant analog input configurations?
A7: Yes, it supports redundant channel setups to maintain reliability in critical applications.
Q8: How are operational issues reported?
A8: Channel status indicators and system diagnostics provide real-time alerts for abnormal conditions or failures.
