Technical Specifications
| Parameter | Description |
|---|---|

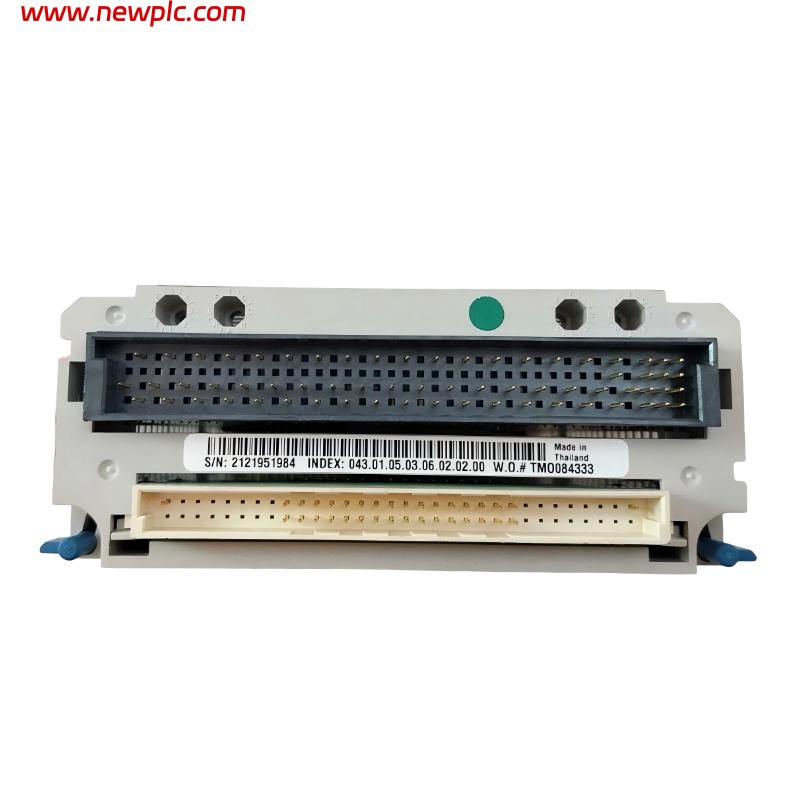

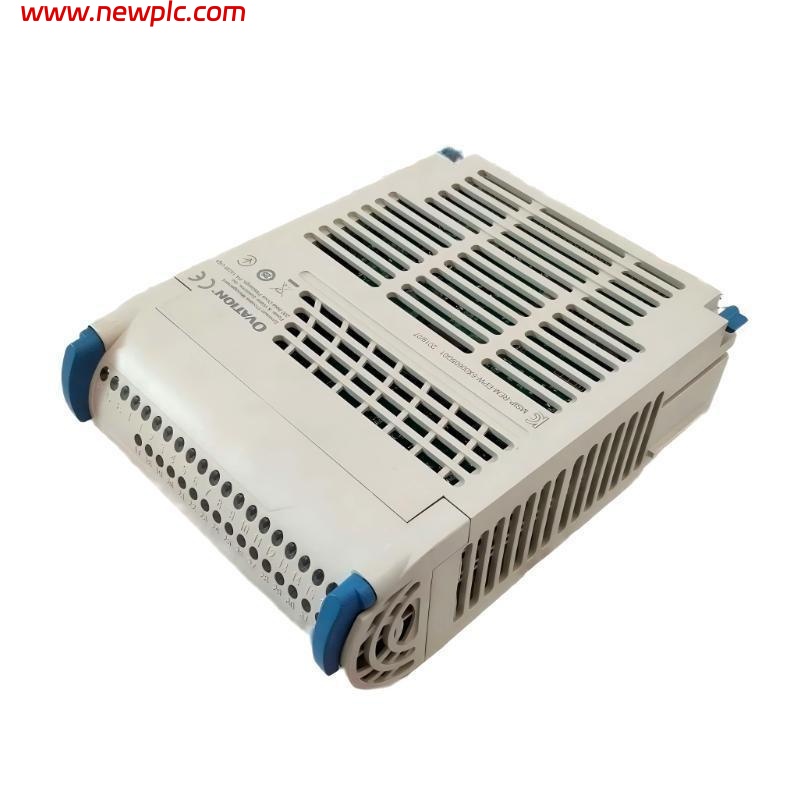

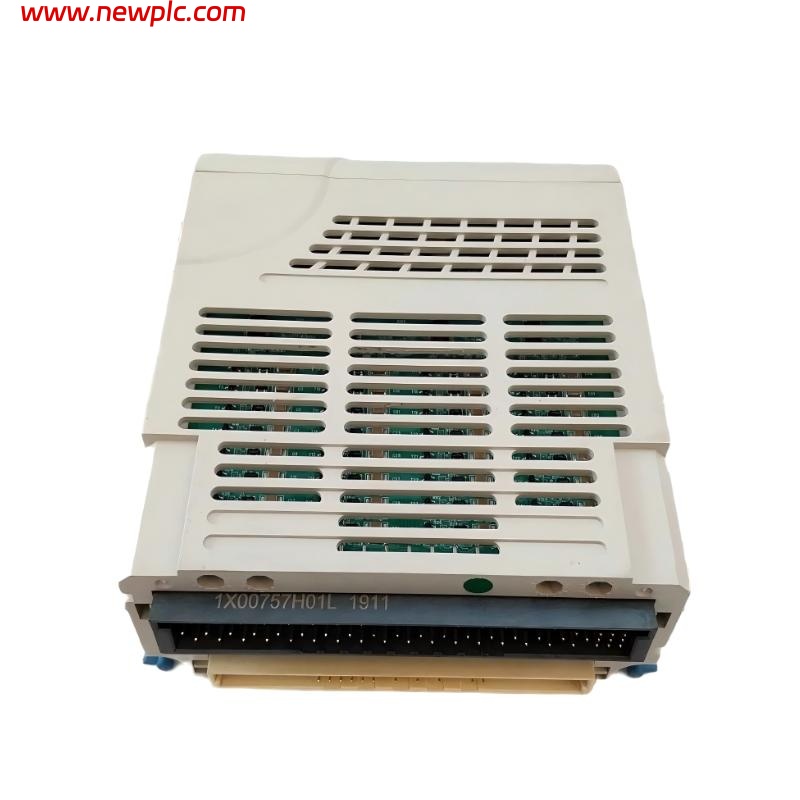

| Model | Ovation 5X00605G01 Analog Input Module |
| Function | Acquires and processes analog signals for Ovation DCS |
| Input Channels | 32 independent analog input channels |
| Input Signal Type | 4–20 mA, 0–10 V, or configurable voltage/current signals |
| Resolution | High-resolution ADC for precise measurement |
| Accuracy | ±0.1% of full scale typical |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Filtering | Anti-aliasing filters to minimize noise |
| Diagnostics | Channel fault detection, open/short circuit detection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | –40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Installation | Standard Ovation I/O rack slot |
| Compatibility | Fully compatible with Ovation control and I/O systems |
| Dimensions | 200 × 100 × 50 mm |
| Weight | 0.322 kg |
FAQ
FAQ
Q1: What types of analog signals does the 5X00605G01 module support?
A1: It supports 4–20 mA, 0–10 V, or configurable voltage/current signals from field sensors and transmitters.
Q2: How many analog input channels are available on this module?
A2: The module provides 32 independent analog input channels for concurrent signal acquisition.
Q3: Is there electrical isolation between the channels?
A3: Yes, each channel is isolated from other channels and the system bus to prevent interference or fault propagation.
Q4: How is measurement accuracy maintained?
A4: High-resolution ADCs and anti-aliasing filters ensure precise, low-noise analog signal conversion.
Q5: Can the module detect wiring or sensor failures?
A5: Yes, it provides diagnostics to detect open circuits, short circuits, and abnormal input conditions on each channel.
Q6: Is the module compatible with standard Ovation I/O racks?
A6: Yes, it is fully compatible with Ovation rack slots and integrates seamlessly with the Ovation DCS.
Q7: Does this module support redundant analog input configurations?
A7: Yes, it can be used in redundant setups for enhanced reliability in critical process control applications.
Q8: How are operational issues or faults communicated?
A8: Channel status indicators and system diagnostics provide real-time alerts for abnormal conditions or failures.
