Technical Specifications
| Parameter | Description |
|---|---|

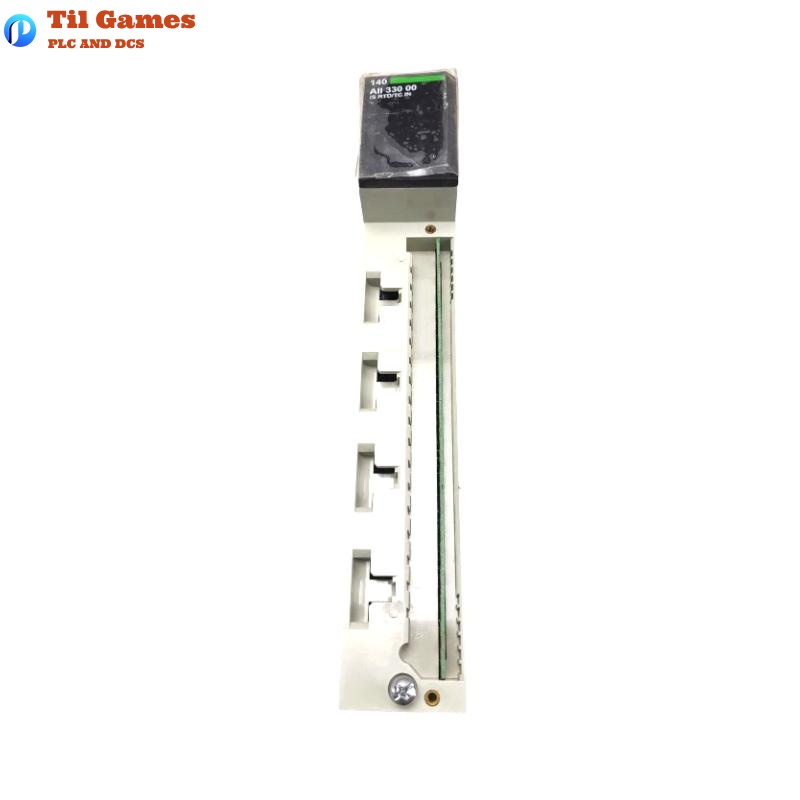

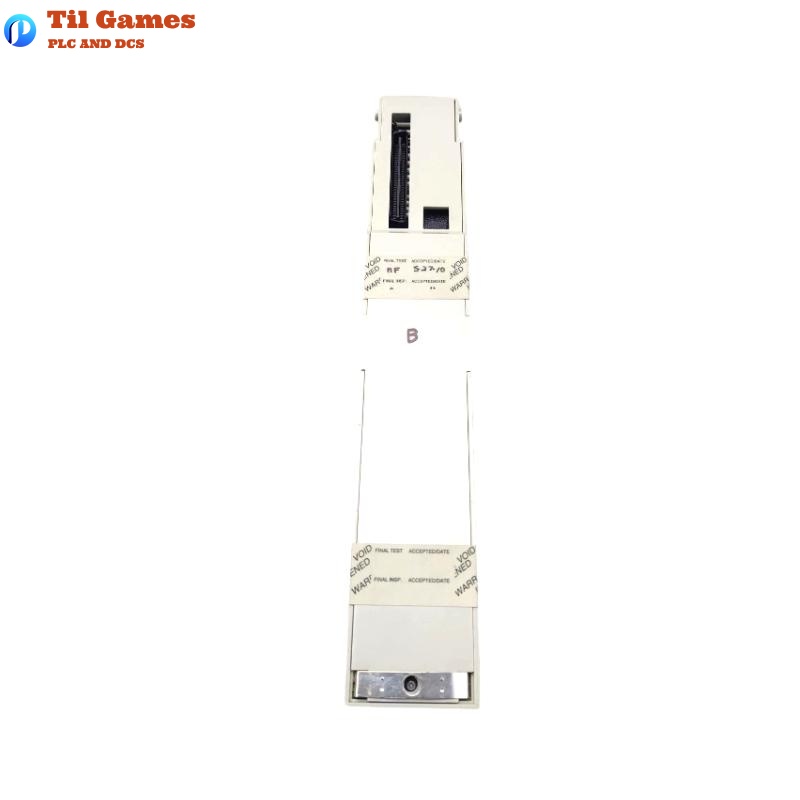

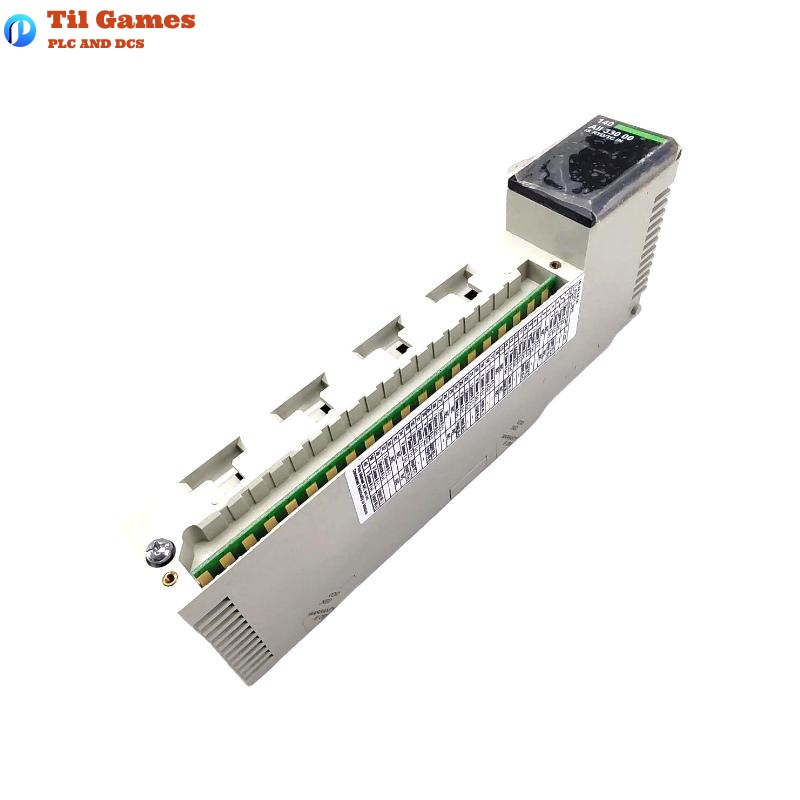

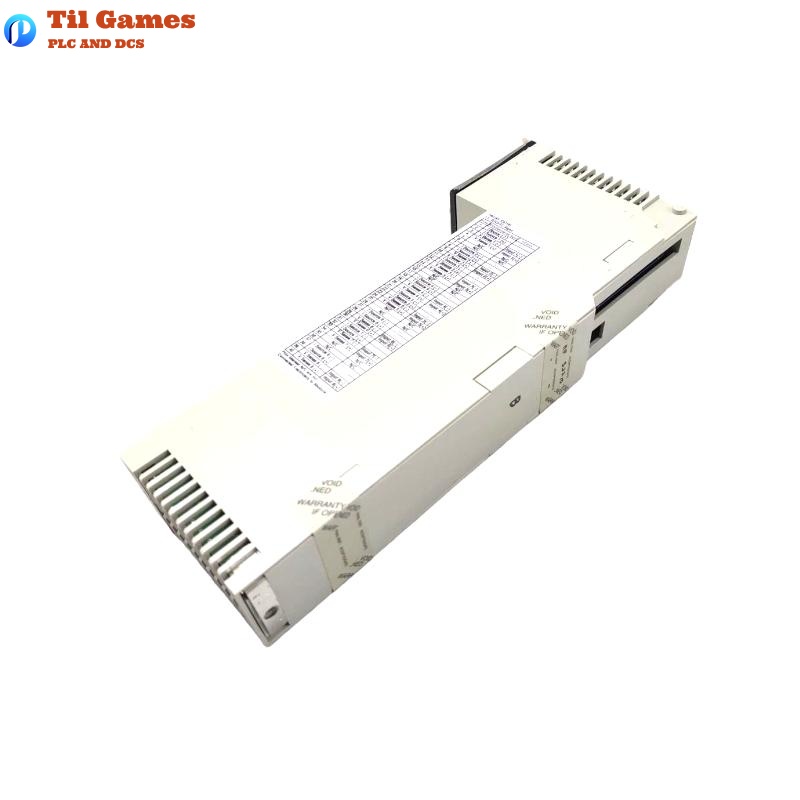

| Module Model | Schneider 140AII33000C |
| Type | Intrinsically Safe Temperature Input Module |
| Number of Channels | 8 analog input channels |
| Supported Sensor Types | Thermocouples (T/C), RTDs |
| Input Type | Voltage (T/C) or resistance (RTD) |
| Input Signal Range | Thermocouple: type-specific; RTD: 0–400 Ω |
| Resolution | 16-bit |
| Isolation | Optical isolation between channels and system |
| Intrinsic Safety Cert | Compliant with ATEX and IECEx standards |
| Operating Voltage | 5 V DC (rack-supplied) |
| Power Consumption | 2.5 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting | Installed in Modicon Quantum rack |
| Dimensions (W x H x D) | 50 x 165 x 310 mm |
| Weight | 0.8 kg |
FAQ
FAQ
Q1: What types of temperature sensors does the module support?
A1: It supports both thermocouples (T/C) and resistance temperature detectors (RTDs).
Q2: Is the module certified for intrinsic safety?
A2: Yes, the 140AII33000C module meets ATEX and IECEx intrinsic safety standards, suitable for hazardous zones.
Q3: Is there isolation between the input channels?
A3: Yes, the module provides optical isolation between channels and system for improved safety and reliability.
Q4: What is the input signal range?
A4: It varies by sensor type: thermocouple ranges depend on type, and RTD input range is 0 to 400 ohms.
Q5: How is the module installed?
A5: It is installed in a Modicon Quantum rack and supports hot-swapping.
Q6: How many input channels does the module support?
A6: The module supports up to 8 individual analog temperature input channels.
Q7: What is the operating temperature range?
A7: The operating range is 0°C to 60°C; storage range is -40°C to 85°C.
Q8: What are the module’s dimensions and weight?
A8: It measures 50 x 165 x 310 mm and weighs 0.8 kg.
