Technical Specifications
| Parameter | Description |
|---|---|

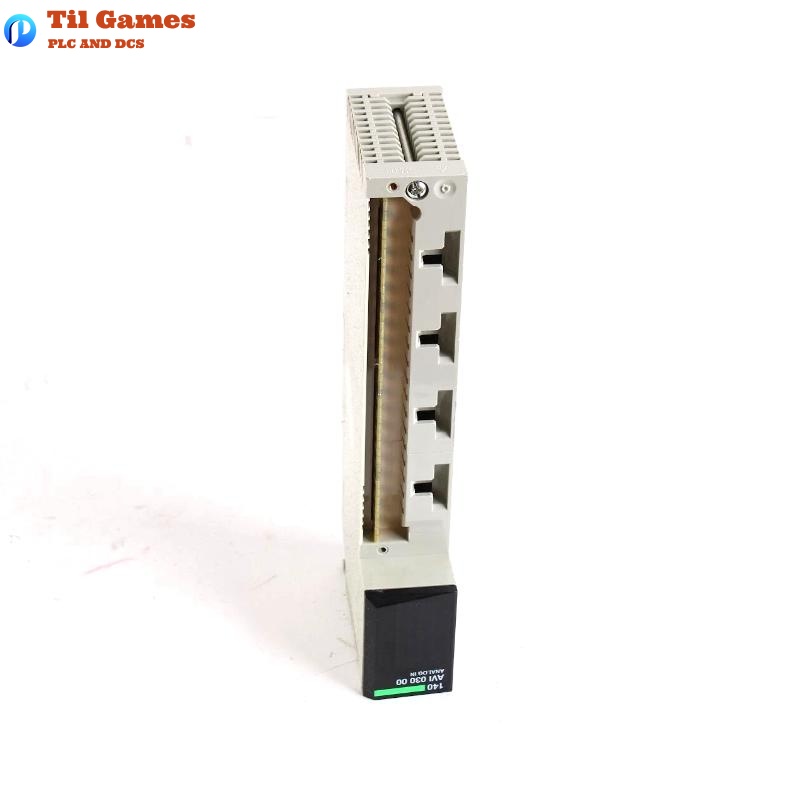

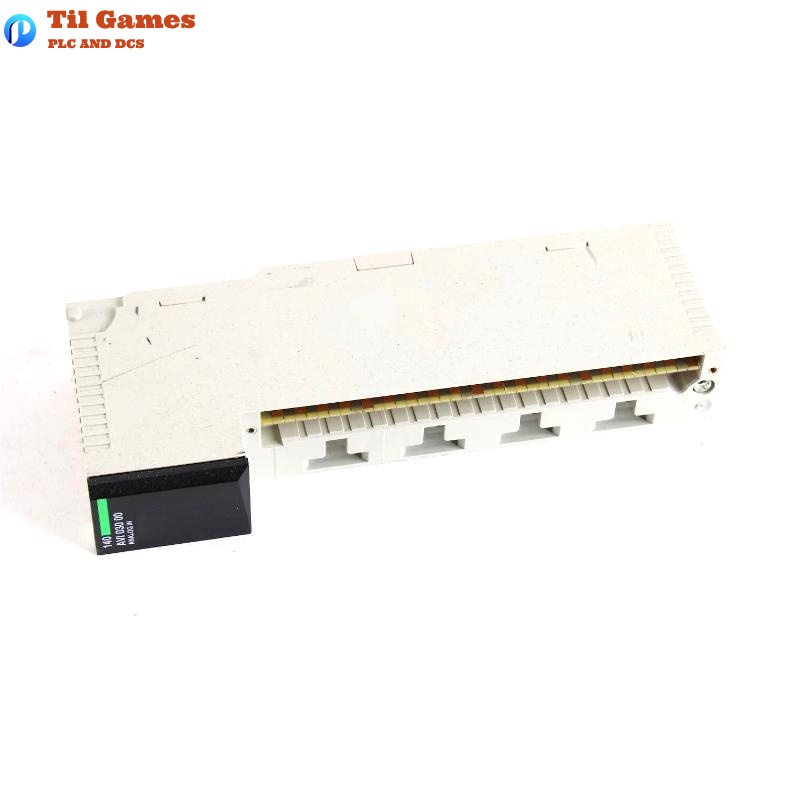

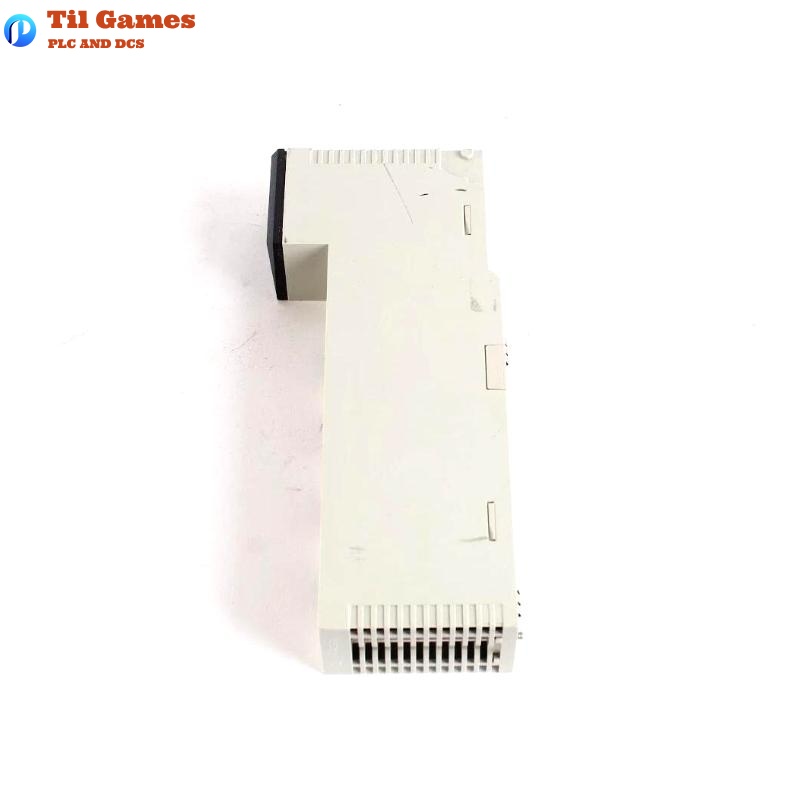

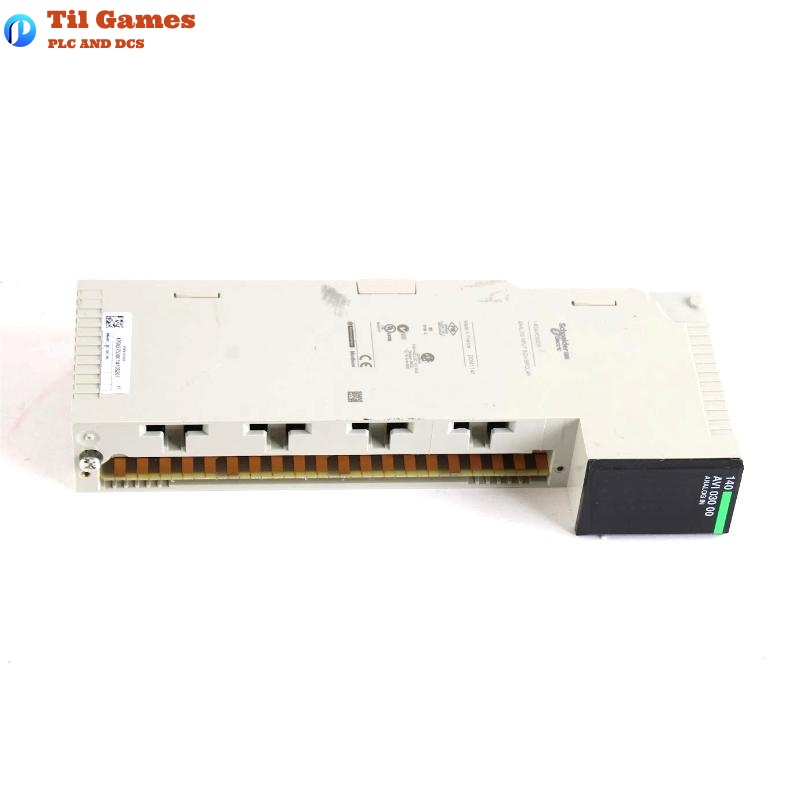

| Product Model | Schneider 140AVI03000C Analog Input Module |
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Analog input module |
| Type of Filter | Single pole low pass – 3 dB at 847 Hz ±20% |
| Number of Analog Inputs | 8 |
| Input Type | Differential |
| Addressing Requirement | 9 input words |
| Analog Input Signal Types | Bipolar current 20 mA Bipolar voltage ±10 V Bipolar voltage ±5 V Unipolar current 0–20 mA Unipolar voltage 0–10 V Unipolar voltage 0–5 V |
| Analog Input Resolution | 16 bits for all ranges |
| Linear Measuring Range | (Input range) × 1.024 V or mA |
| Absolute Maximum Input | 50 V DC / 25 mA |
| Input Impedance | > 20 Ω for voltage 250 MΩ ±0.03% |
| Absolute Accuracy Error | ±0.03% / ±0.05% of full scale (maximum) |
| Linearity Error | ±0.008% |
| Temperature Drift | ±0.0015% of full scale/°C ≤ 0.004% of full scale/°C |
| Common Mode Rejection | > –80 dB @ 60 Hz |
| Isolation (Channel to Bus) | 500 Vrms AC (60s) 750 V DC |
| Isolation (Between Channels) | 135 Vrms AC 200 V DC |
| Update Time | 10 ms |
| Fault Types Detected | Broken wire (4–20 mA) Over-range (1–5 V) |
| Marking | CE |
| Local Signaling | 1 Green LED (bus active) 1 Red LED (external fault) 8 Green LEDs (channel active) 8 Red LEDs (channel fault) |
| Bus Current Requirement | 280 mA |
| Power Dissipation | 2.2 W |
| Module Format | Standard |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.7 lb) |
| Protective Treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508, CSA C22.2 No 142 |
| Product Certifications | FM Class 1 Division 2, cUL |
| Electrostatic Discharge Resistance | 4 kV (contact), 8 kV (air) per IEC 801-2 |
| Electromagnetic Field Resistance | 9.1 V/m (10 V/m) @ 80–1000 MHz IEC 801-3 |
| Operating Temperature Range | 0–60 °C (32–140 °F) |
| Storage Temperature Range | –40–85 °C (–40–185 °F) |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
FAQ
Q1: What is the input type of the Schneider 140AVI03000C module?
A1: The module uses differential input for all 8 analog input channels.
Q2: What kinds of analog signals does the module support?
A2: It supports bipolar and unipolar current and voltage signals, including ±10 V, ±5 V, 0–10 V, 0–5 V, 0–20 mA, and 20 mA.
Q3: What is the resolution of the analog inputs?
A3: The module offers 16-bit resolution for all supported input ranges.
Q4: How does the module handle over-range or wiring faults?
A4: It can detect broken wire faults in 4–20 mA mode and over-range conditions in 1–5 V input mode.
Q5: What is the input impedance for voltage signals?
A5: The voltage input impedance is greater than 20 Ω, and the internal impedance is 250 MΩ ±0.03%.
Q6: Is the module electrically isolated?
A6: Yes, it provides 500 Vrms AC or 750 V DC isolation between channels and the bus, and 135 Vrms AC or 200 V DC between channels.
Q7: What are the operating environmental conditions?
A7: Operating temperature is 0–60 °C, storage temperature is –40–85 °C, and relative humidity can reach 95% without condensation.
Q8: What is the size and weight of this module?
A8: The module measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg.
