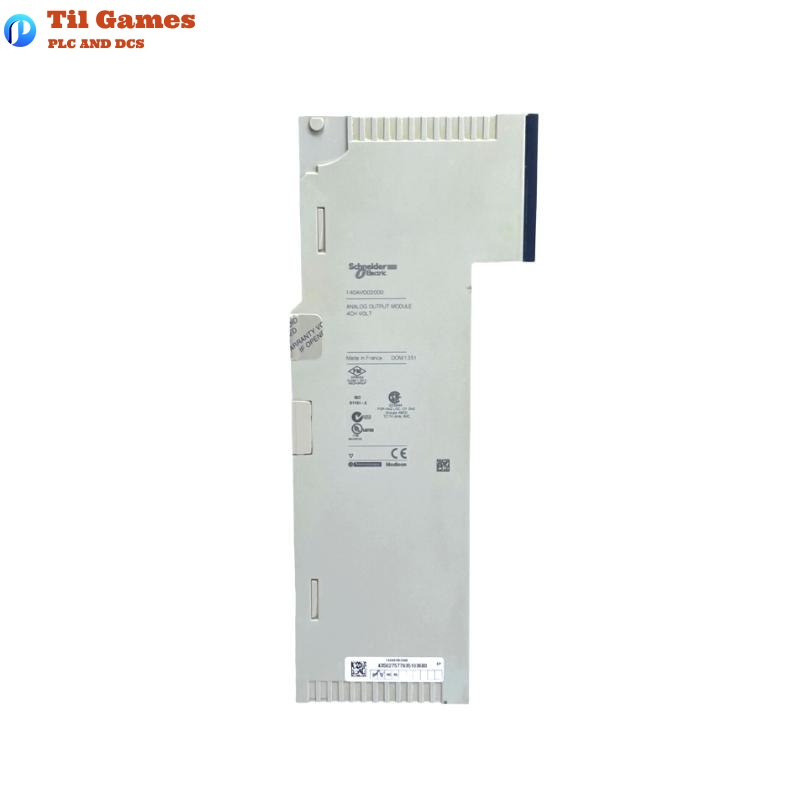

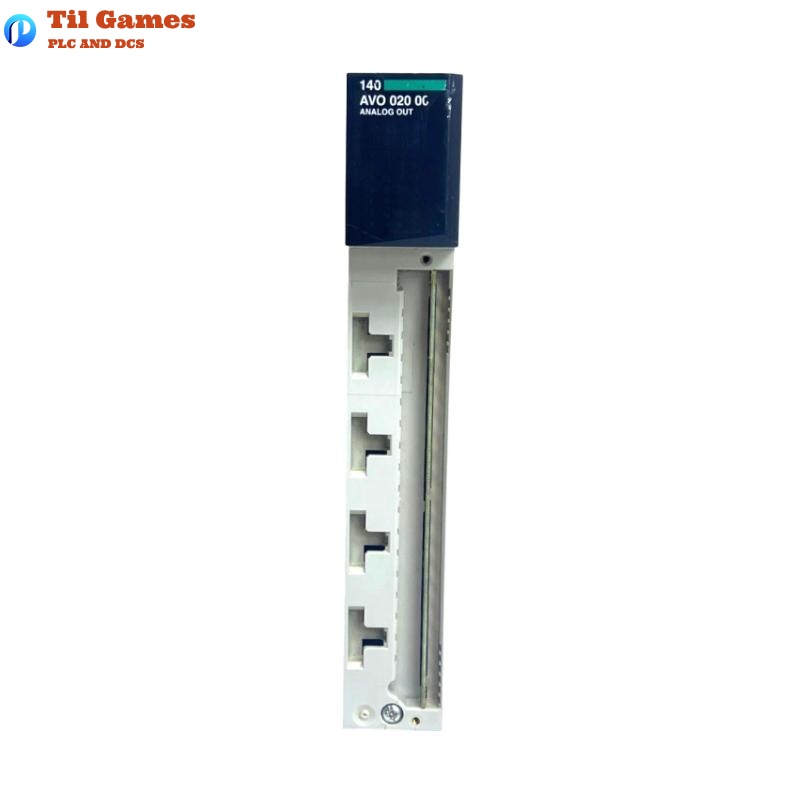

Technical Specifications
| Parameter | Value |
|---|---|
| Range of Product | Modicon Quantum Automation Platform |
| Product Type | Analog Output Module |
| Analog Output Channels | 4 |
| Addressing Requirement | 4 output words |
| Analog Output Ranges | ±10 V (≥ 1000 Ω, bipolar) ±5 V (≥ 500 Ω, bipolar) 0…10 V (≥ 1000 Ω, unipolar) 0…5 V (≥ 500 Ω, unipolar) |
| Output Resolution | 12 bits |
| Analog Output Current | -10…10 mA |
| Source Resistance | 0.1 Ω |
| Max Cable Distance | 400 m (1312.3 ft) |
| Absolute Accuracy Error | ±0.15% of full scale at 25°C |
| Linearity | ±1 LSB |
| Temperature Drift (Unipolar) | 0.003 %/°C typical 0.005 %/°C max |
| Temperature Drift (Bipolar) | 0.004 %/°C typical 0.007 %/°C max |
| Channel-to-Channel Isolation | 500 V AC for 1 min, 47–63 Hz |
| Channel-to-Bus Isolation | 780 V AC for 1 min |
| Update Time | 3 ms |
| Setting Time | 700 µs to ±0.1% of final value max |
| Bus Current Requirement | 700 mA |
| Max Power Dissipation | 4.5 W |
| Associated Fuse Rating | 0.063 A, 3 AG fast blow, 250 V |
| Marking | CE |
| Local Signalling | 1 green LED for bus 1 red LED for fault 4 green LEDs for channels 4 red LEDs for channel faults |
| Module Format | Standard |
| Dimensions (W×H×D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Protective Coating | Humiseal 1A33 conformal coating |
| Certifications | FM Class 1 Division 2, cUL |
| Standards Compliance | CSA C22.2 No 142, UL 508 |
| Electromagnetic Field Resistance | 9.1 V/m (10 V/m), 80…2000 MHz, IEC 801-3 |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
FAQ
Q1: What voltage output ranges are supported by the 140AVO02000C module?
A1: It supports ±10 V, ±5 V (bipolar), and 0…10 V, 0…5 V (unipolar) output ranges.
Q2: Does the module provide isolation between output channels?
A2: Yes, there is 500 V isolation between channels and 780 V isolation between channels and the bus.
Q3: What is the output accuracy of this module?
A3: It has an accuracy of ±0.15% of full scale at 25°C.
Q4: What is the analog output resolution?
A4: The module provides 12-bit resolution.
Q5: What is the update and setting time?
A5: Update time is 3 ms and setting time is up to 700 µs to ±0.1% of final value.
Q6: What is the operating temperature range of this module?
A6: The operating range is 0 to 60°C.
Q7: Can the module be used in high altitude applications?
A7: Yes, it supports operation up to 5000 m altitude.
Q8: What are the physical dimensions and weight of the module?
A8: The dimensions are 103.9 × 40.3 × 250 mm and it weighs 0.3 kg.
