Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric / Modicon |

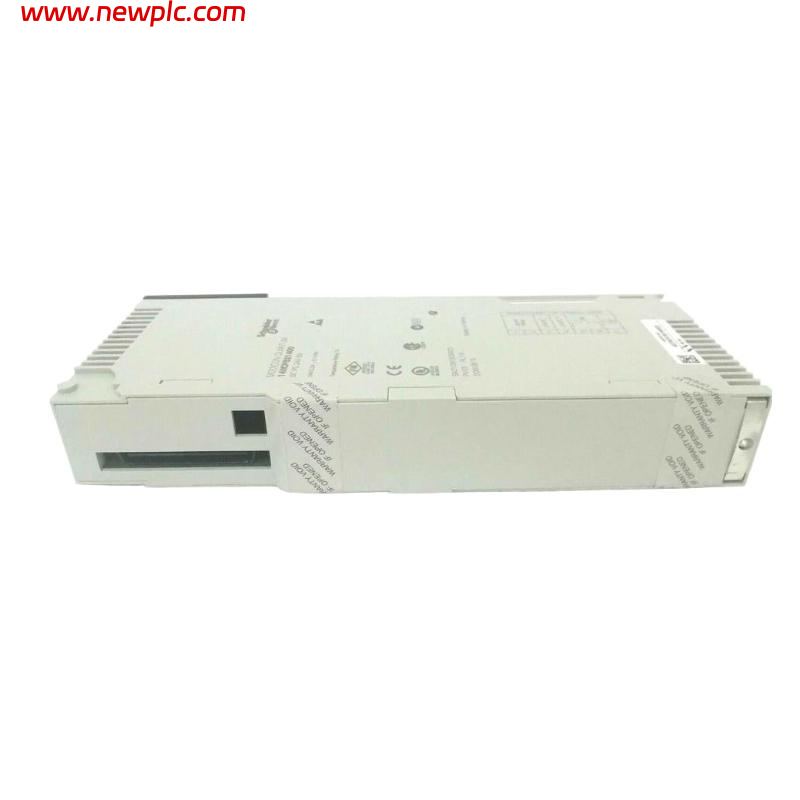

| Product Model | 140CPS21100 |
| Product Type | DC Power Supply Module |
| Series | Modicon Quantum Automation Platform |
| Function | Provides regulated DC power to the Quantum PLC backplane and installed modules |
| Power Supply Type | Standalone Power Supply |
| Input Voltage | 24 VDC |
| Input Voltage Range | 20–30 VDC |
| Input Current | 1.6 A |
| Inrush Current | 30 A |
| Output Voltage | 5.1 VDC |
| Output Current | 0.3–3 A |
| Output Power | Approx. 15 W maximum |
| Protection Function | Internal overvoltage protection and overload protection |
| Power Loss Ride Through | 1 ms at 20 VDC / 20 ms at 25 VDC |
| Fuse Requirement | 2.5 A slow-blow fuse recommended |
| Status Indicator | Green LED (PWR OK) |
| Module Format | Standard Quantum PLC Module |
| Mounting Type | Quantum rack / chassis mounting |
| Communication Interface | Not applicable |
| Certifications | UL 508, CSA C22.2 No.142, cUL, FM Class I Division 2 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% RH, non-condensing |
| Application | Modicon Quantum PLC systems, industrial automation, process control, and machine control applications |
| Dimensions | Approx. 250 × 40 × 150 mm |
| Weight | Approx. 0.65 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Schneider 140CPS21100 used for?
The 140CPS21100 is used to provide regulated power for Modicon Quantum PLC racks. It supplies the required 5.1 VDC power to the PLC backplane and connected modules.
Q2: What type of module is the 140CPS21100?
The 140CPS21100 is a standalone DC power supply module designed for the Modicon Quantum automation platform.
Q3: What input voltage does the 140CPS21100 require?
The module requires a 24 VDC input supply, with an allowable input range of 20–30 VDC.
Q4: What are the dimensions and weight of the 140CPS21100?
The module has approximate dimensions of 250 × 40 × 150 mm and weighs approximately 0.65 kg.
Q5: What output does the 140CPS21100 provide?
The module provides a regulated 5.1 VDC output with an output current range of 0.3–3 A for powering Quantum PLC system components.
Q6: Does the 140CPS21100 have protection functions?
Yes. The module includes internal overvoltage protection and overload protection to improve system reliability and prevent damage caused by abnormal conditions.
Q7: Is the 140CPS21100 still available?
The 140CPS21100 has been discontinued by Schneider Electric, but repair services and replacement options may still be available. Recommended replacements include Modicon X80 power supply modules such as BMXCPS2010 and BMXCPS3020.
Q8: What are the advantages of the Schneider 140CPS21100?
The 140CPS21100 provides stable DC power conversion, reliable operation, built-in protection features, easy rack installation, and compatibility with existing Modicon Quantum PLC systems.
