Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric / Modicon |

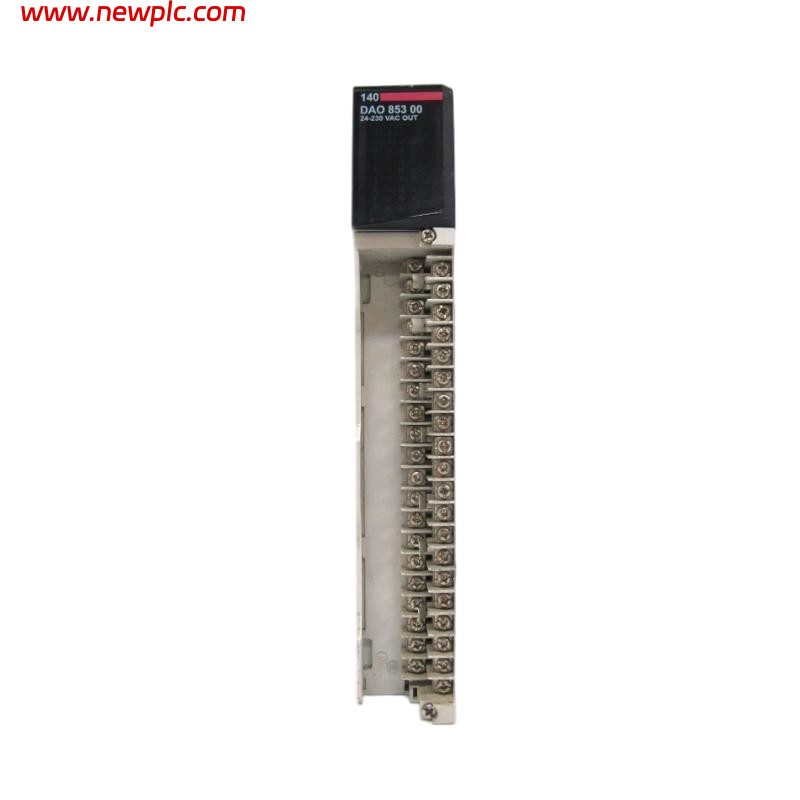

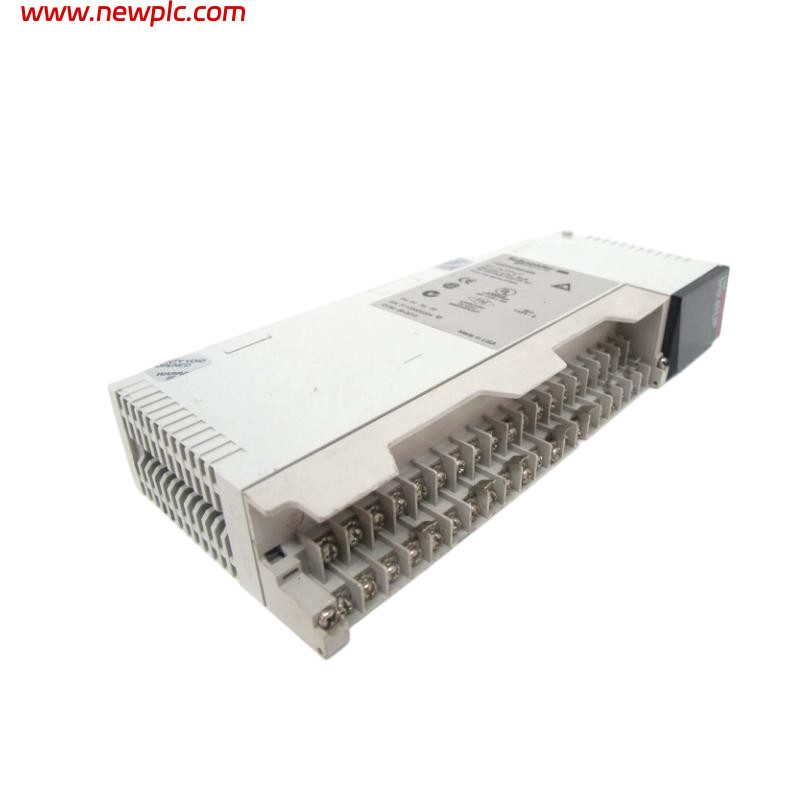

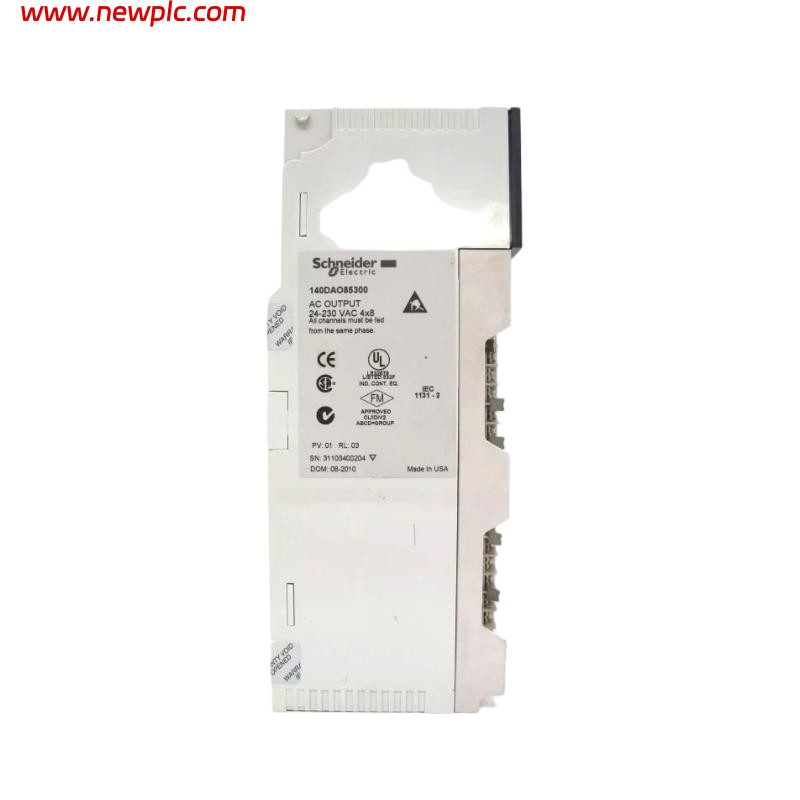

| Product Model | 140DAO85300 |
| Product Type | AC Discrete Output Module |
| Series | Modicon Quantum Automation Platform |
| Function | Provides AC digital output control signals for actuators, relays, contactors, and other field devices in Quantum PLC systems |
| Output Type | Discrete AC Output |
| Number of Outputs | 32 Channels |
| Channel Configuration | 4 groups × 8 output points |
| Output Voltage | 20–253 VAC |
| Frequency Range | 47–63 Hz |
| Output Logic | True High |
| Maximum Load Current | 1 A RMS per output point |
| Maximum Current per Group | 4 A RMS |
| Maximum Module Current | 16 A RMS |
| Voltage Drop | 1.5 VAC maximum per output |
| Addressing Requirement | 2 output words |
| External Power Supply | Not required |
| Response Time | ≤0.5 ms (OFF to ON), ≤0.5 ms (ON to OFF) |
| Surge Current Capability | Up to 30 A per point (1 cycle) |
| Leakage Current | 0.88 mA at 230 VAC (maximum per output) |
| Protection Function | Internal 4 A fuse protection and RC snubber filter |
| Isolation | 1780 VAC RMS group-to-group and output-to-bus isolation |
| Bus Current Consumption | 320 mA |
| Status Indicators | Active LED, Fault LED, 32 channel status LEDs |
| Mounting Type | Modicon Quantum rack mounting |
| Compatible Systems | Modicon Quantum PLC platform |
| Application | Industrial automation, machine control, process control, motor/valve/relay switching applications |
| Dimensions | Approx. 250 × 40 × 150 mm |
| Weight | Approx. 0.45 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Schneider 140DAO85300 used for?
The 140DAO85300 is used to provide AC digital output signals from a Modicon Quantum PLC to control external field devices such as relays, contactors, motors, and valves.
Q2: What type of module is the 140DAO85300?
The 140DAO85300 is an AC discrete output module with 32 output channels designed for the Modicon Quantum automation platform.
Q3: How many output channels does the 140DAO85300 provide?
The module provides 32 AC output channels, arranged as 4 groups of 8 channels for flexible field device control.
Q4: What are the dimensions and weight of the 140DAO85300?
The module has approximate dimensions of 250 × 40 × 150 mm and weighs approximately 0.45 kg.
Q5: What voltage range does the 140DAO85300 support?
The module supports AC output voltages from 20 to 253 VAC with a frequency range of 47–63 Hz.
Q6: Does the 140DAO85300 include protection functions?
Yes. The module includes internal fuse protection and RC snubber protection to improve reliability when switching AC loads.
Q7: Which PLC systems are compatible with the 140DAO85300?
The 140DAO85300 is designed for use with the Modicon Quantum automation platform and Quantum PLC racks.
Q8: What are the advantages of the Schneider 140DAO85300?
The module provides high-density 32-channel AC output control, reliable switching performance, built-in protection, clear LED diagnostics, and easy integration with existing Modicon Quantum PLC systems.
