Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric / Modicon |

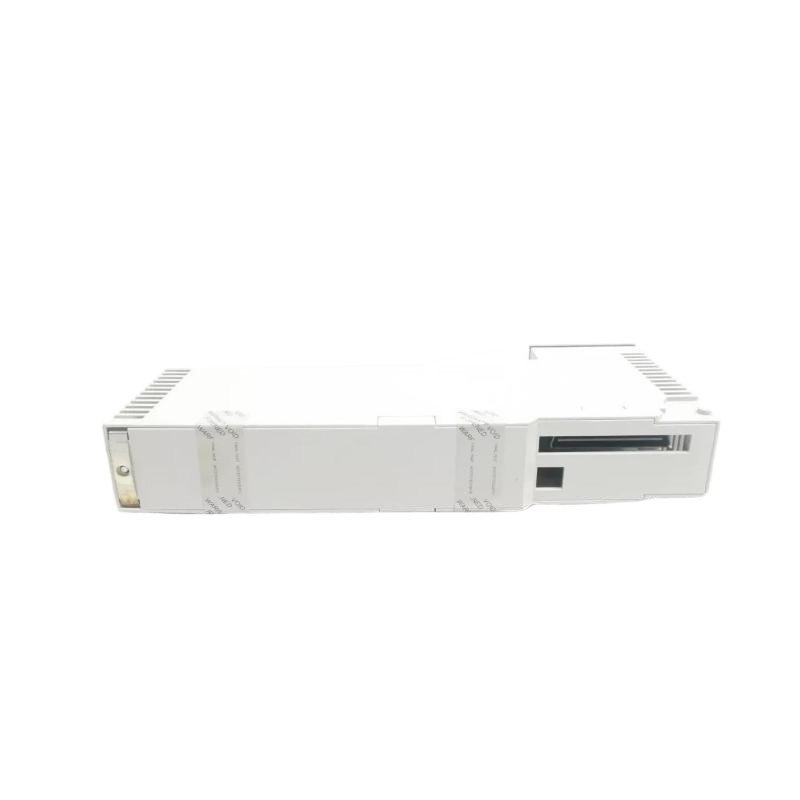

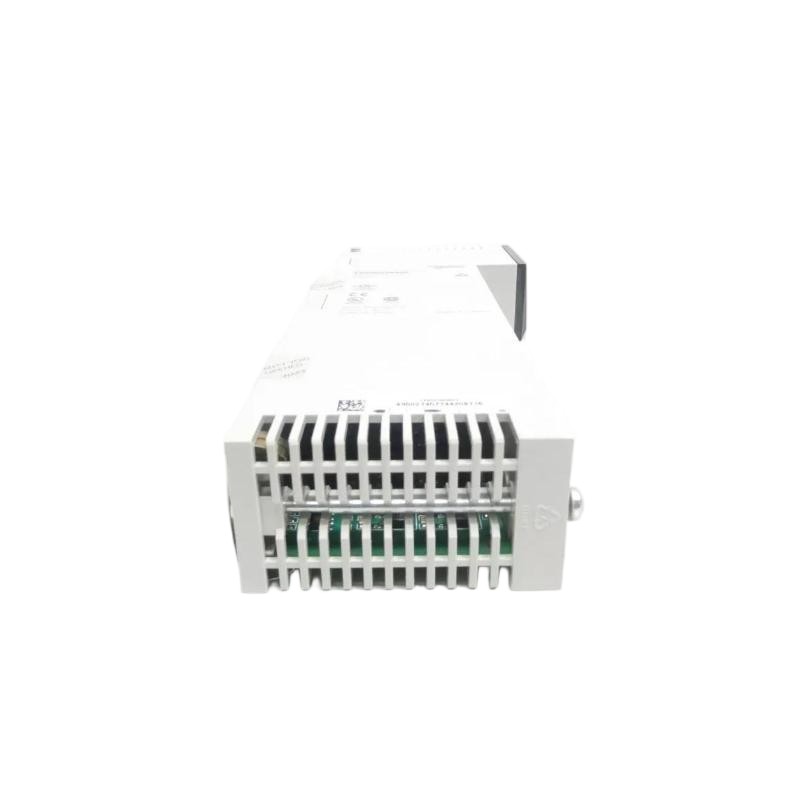

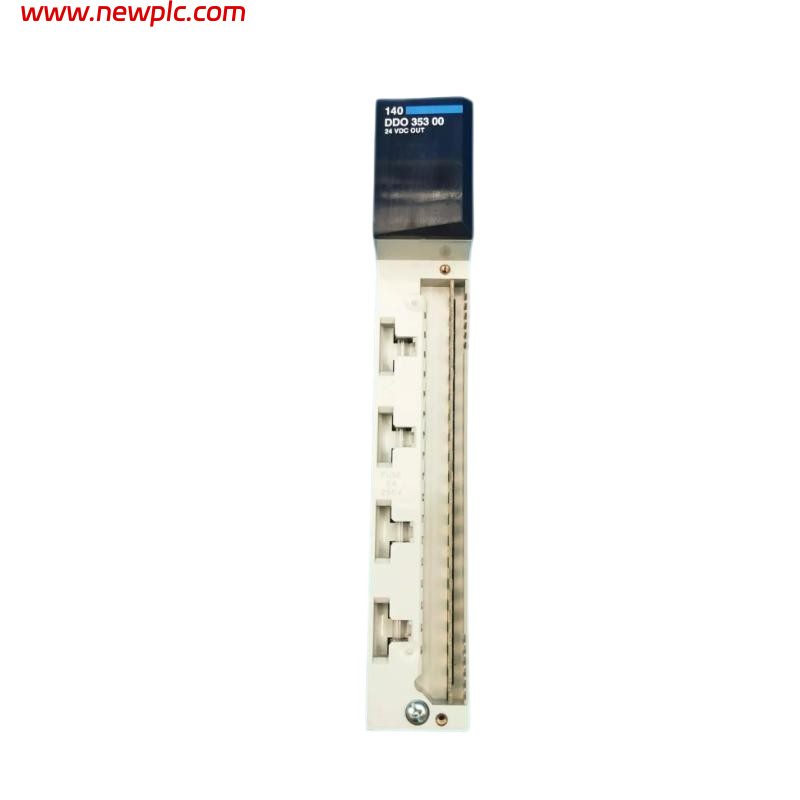

| Product Model | 140DDO35300R |
| Product Type | DC Discrete Output Module |
| Series | Modicon Quantum Automation Platform |
| Function | Provides 24 VDC digital output signals for controlling field devices such as relays, solenoid valves, contactors, and actuators |
| Output Type | Solid-State Transistor Output |
| Number of Outputs | 32 Channels |
| Channel Configuration | 4 groups × 8 output points |
| Output Logic | Positive Logic (Source) |
| Output Voltage | 24 VDC |
| Output Voltage Range | 19.2–30 VDC |
| Maximum Output Current | 0.5 A per point |
| Maximum Group Current | 4 A per group |
| Maximum Module Current | 16 A |
| Surge Current | 5 A for 0.5 ms |
| Response Time | ≤1 ms ON/OFF transition |
| Leakage Current | 0.4 mA maximum at 30 VDC |
| Voltage Drop | <0.4 V at 0.5 A |
| Protection Function | Internal output protection by 5 A fuse per group |
| Isolation | 1780 Vrms between channels and bus; 500 Vrms between groups |
| Diagnostic Function | Blown fuse detection, field power loss indication, channel status monitoring |
| LED Indicators | Active LED, Fault LED, 32 channel status LEDs |
| Bus Current Consumption | Approx. 330 mA |
| Addressing Requirement | 2 output words |
| Mounting Type | Modicon Quantum rack mounting |
| Compatible Systems | Modicon Quantum PLC platform |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95% RH, non-condensing |
| Application | Industrial automation, machine control, process control, motor/valve/relay switching applications |
| Dimensions | Approx. 250 × 40 × 150 mm |
| Weight | Approx. 0.45 kg |
| Condition | New and original |
| Warranty | 12 months |
FAQ
FAQ
Q1: What is the Schneider 140DDO35300R used for?
The 140DDO35300R is used to provide 24 VDC digital output signals from a Modicon Quantum PLC to control external devices such as solenoid valves, relays, contactors, and actuators.
Q2: What type of module is the 140DDO35300R?
The 140DDO35300R is a DC discrete output module with 32 solid-state output channels designed for the Modicon Quantum automation platform.
Q3: How many output channels does the 140DDO35300R provide?
The module provides 32 digital output channels, arranged as 4 groups of 8 channels for flexible field control applications.
Q4: What are the dimensions and weight of the 140DDO35300R?
The module has approximate dimensions of 250 × 40 × 150 mm and weighs approximately 0.45 kg.
Q5: What voltage does the 140DDO35300R support?
The module supports 24 VDC output voltage with an operating range of 19.2–30 VDC.
Q6: Does the 140DDO35300R have protection and diagnostic functions?
Yes. The module includes internal fuse protection, field power loss indication, blown fuse detection, and individual channel LED status indicators for easier troubleshooting.
Q7: Which PLC systems are compatible with the 140DDO35300R?
The 140DDO35300R is designed for use with the Modicon Quantum automation platform and Quantum PLC rack systems.
Q8: What are the advantages of the Schneider 140DDO35300R?
The module provides high-density 32-channel output control, fast switching response, reliable solid-state operation, built-in protection features, clear diagnostics, and easy integration into existing Modicon Quantum control systems.
