Technical Specifications
| Parameter | Description |
|---|---|

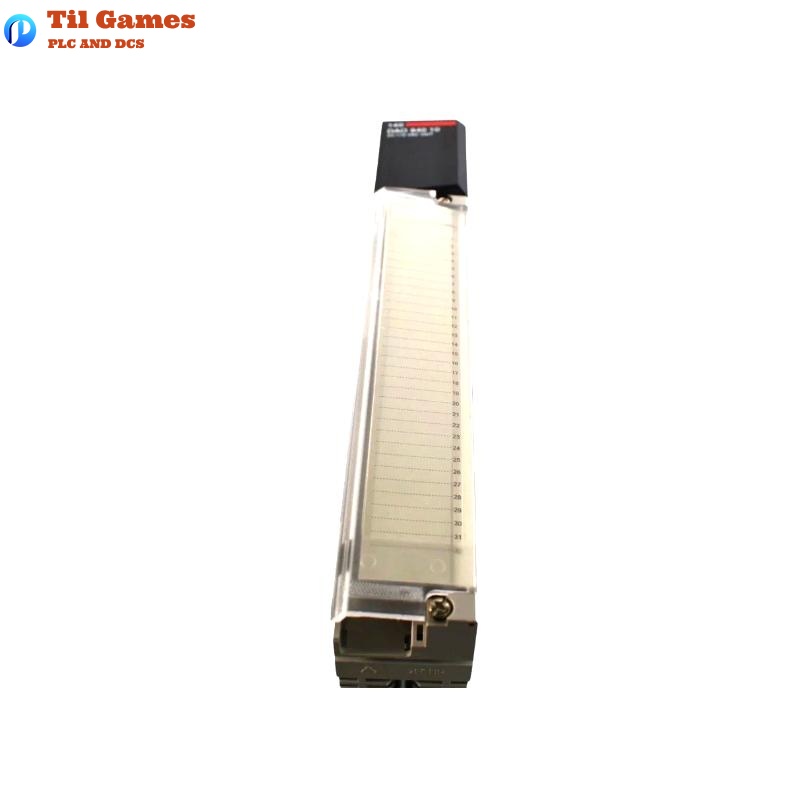

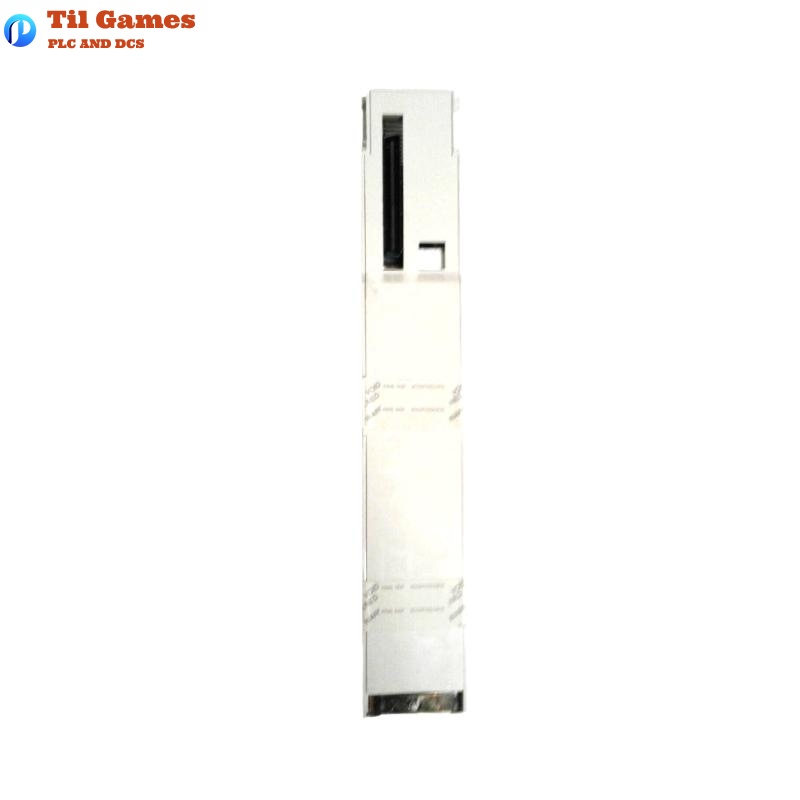

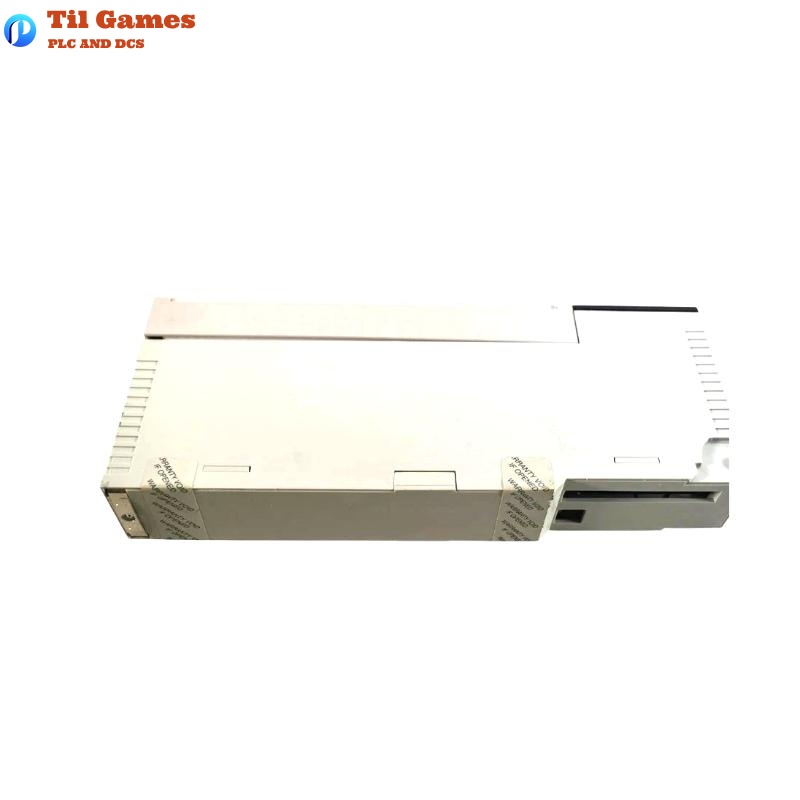

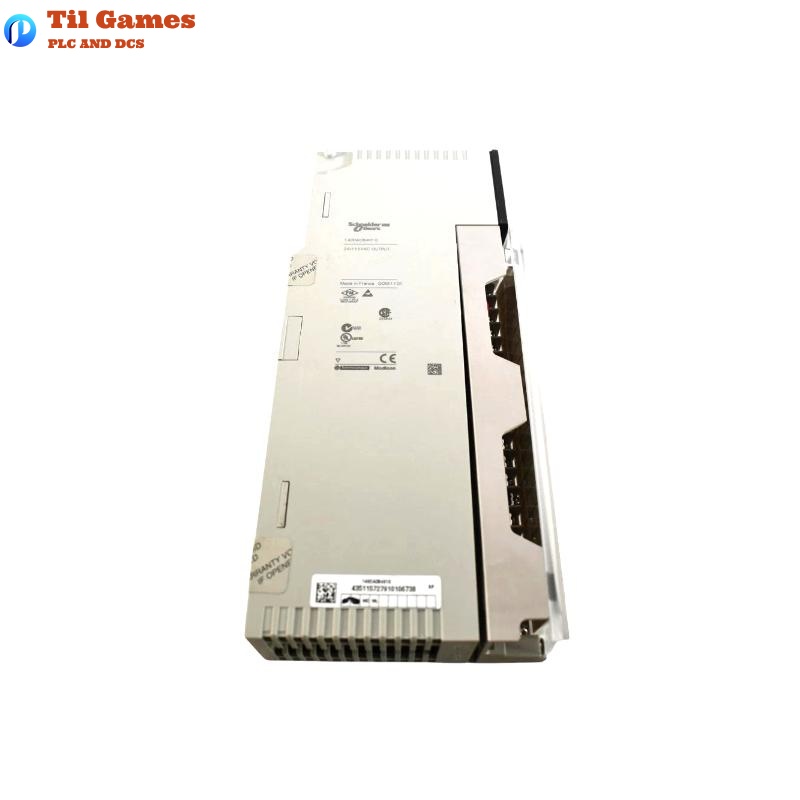

| Product Model | Schneider 140DA084010C |
| Type | Discrete Output Module |
| Output Type | DC Power, Transistor Output |
| Number of Channels | 8 Channels |
| Rated Voltage | 24 V DC |
| Voltage Range | 19.2 to 30 V DC |
| Rated Current/Channel | 0.5 A |
| Total Output Current | Maximum 4 A |
| Logic Type | Positive Logic |
| Isolation Voltage | 500 V (Channel to Bus) |
| Output Protection | Short Circuit and Overload Protected |
| Response Time | < 1 ms rise/fall time |
| Backplane Current | 160 mA |
| Mounting | Plug-in, for Quantum Rack |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.485 kg |
FAQ
FAQ
Q1: How many output channels does the module provide?
A1: The Schneider 140DA084010C module provides 8 discrete output channels.
Q2: What is the maximum current per output channel?
A2: Each channel can deliver up to 0.5 A of current.
Q3: Does the module have short-circuit protection?
A3: Yes, it features both short-circuit and overload protection.
Q4: What is the input voltage range supported by the module?
A4: The module supports a voltage range of 19.2 to 30 V DC.
Q5: Is this module compatible with Quantum systems?
A5: Yes, the 140DA084010C module is designed for Schneider Quantum systems.
Q6: Does the module provide electrical isolation?
A6: Yes, it provides 500 V isolation between channels and the bus.
Q7: What is the mounting method of the module?
A7: It is a plug-in type module, mounted into a standard Quantum rack.
Q8: What are the dimensions and weight of the module?
A8: Dimensions are 103.9 × 40.3 × 250 mm and weight is 0.485 kg.
