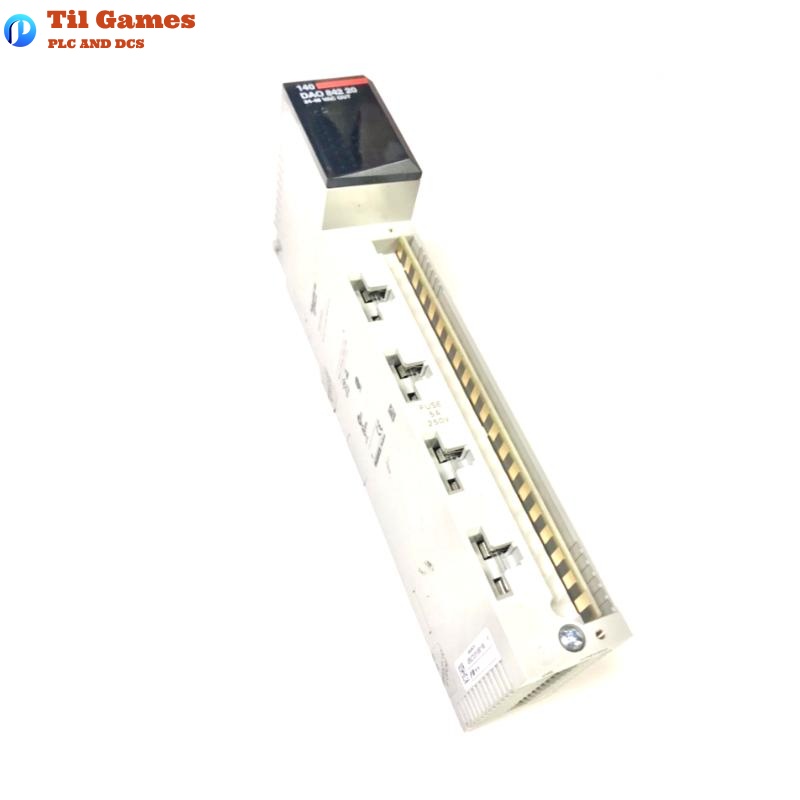

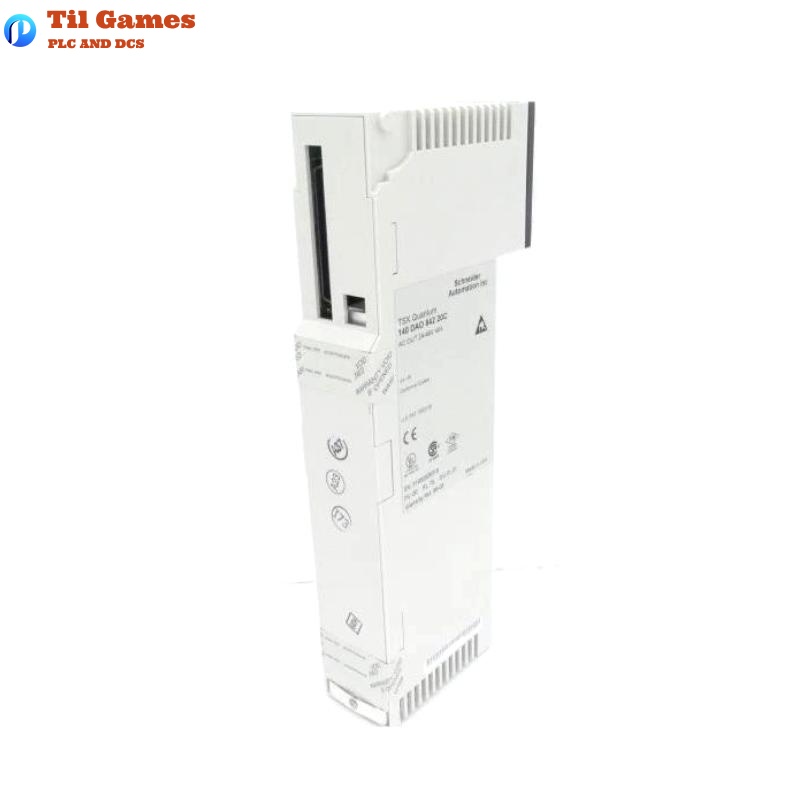

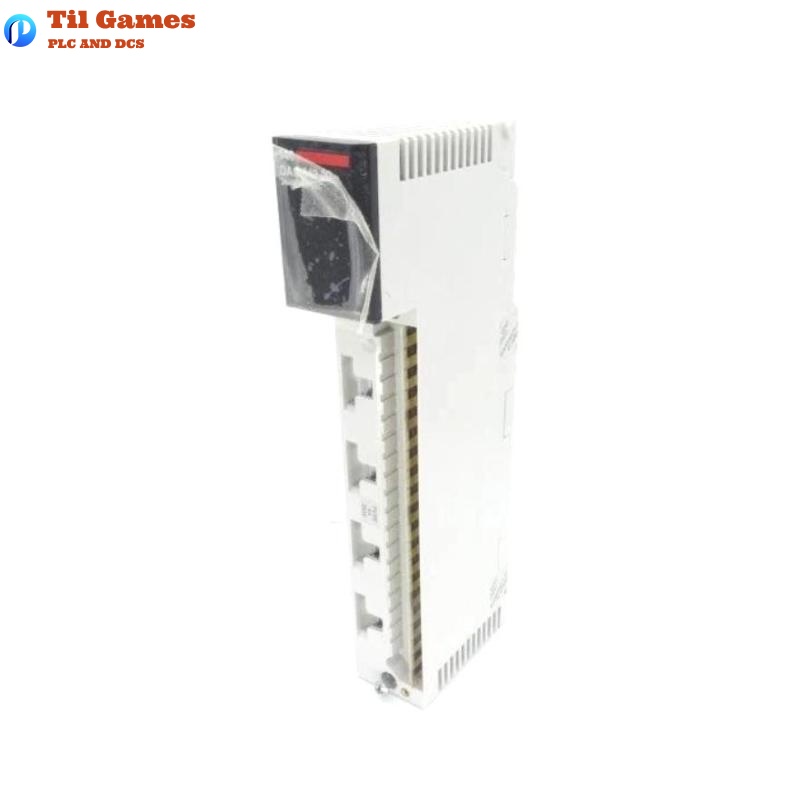

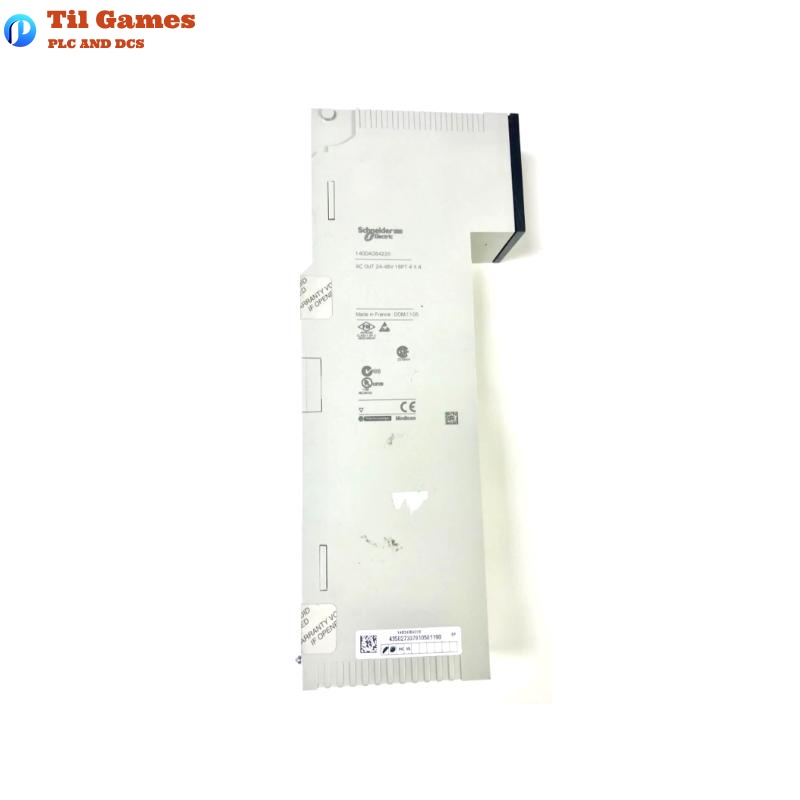

Technical Specifications
| Parameter | Value |
|---|---|
| Product Range | Modicon Quantum Automation Platform |
| Product Type | AC Discrete Output Module |
| Number of Discrete Outputs | 16 |
| Channel Grouping | 4 groups of 4 channels |
| Discrete Output Voltage | 20…56 V AC |
| Supply Frequency | 47…63 Hz |
| Maximum Voltage Drop | 1.5 V |
| Addressing Requirement | 1 output word |
| Absolute Maximum Output Voltage | 100 Vrms for 1 cycle 63 Vrms for 10 s 111 Vrms for 1.3 s |
| Maximum Load Current | 16 A rms per module 4 A rms per group 4 A rms per output |
| Surge Current | 45 A (1 cycle/group) 25 A (2 cycles/group) 30 A (3 cycles/group) |
| DV/dt | 400 V/ms |
| Response Time | ≤ 0.5 ms from state 0 to 1 or 1 to 0 |
| Fault Indication | Loss of field power Blown fuse |
| Protection Type | Internal 5 A fuse Internal RC filter |
| Power Dissipation | 1.85 + (1.1 V × total module load current) |
| Local Signaling | 1 green LED (bus communication) 1 red LED (external fault) 16 green LEDs (output status) |
| Bus Current Requirement | 350 mA |
| Module Format | Standard |
| Dimensions (W × H × D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
| Protective Treatment | Conformal coating Humiseal 1A33 |
| Product Certifications | FM Class 1 Division 2 cUL |
| Standards | UL 508 CSA C22.2 No 142 |
| Electromagnetic Compatibility | ESD contact: 4 kV (IEC 801-2) ESD air: 8 kV (IEC 801-2) EM field: 10 V/m (IEC 801-3) |
| Ambient Operating Temperature | 0…60 °C |
| Storage Temperature | -40…85 °C |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m |
FAQ
FAQ
Q1: What is the output voltage range supported by the 140DAO84220C module?
A1: It supports an AC output voltage range of 20 to 56 V.
Q2: How many discrete output channels are available in the module?
A2: The module has 16 discrete outputs, grouped into 4 groups of 4 channels each.
Q3: What is the maximum output current per channel?
A3: The maximum output current per channel is 4 A rms.
Q4: What is the surge current rating of the module?
A4: The module supports 45 A for 1 cycle, 25 A for 2 cycles, and 30 A for 3 cycles per group.
Q5: What types of status indicators are included?
A5: The module includes one green LED for bus communication, one red LED for external fault, and 16 green LEDs for output status.
Q6: Does the module offer internal protection?
A6: Yes, it includes internal protection with a 5 A fuse and an RC filter.
Q7: What is the response time of the module?
A7: Response time is ≤ 0.5 milliseconds from state 0 to 1 or 1 to 0.
Q8: What is the module’s allowable operating temperature range?
A8: The operating temperature range is from 0 to 60 °C.
