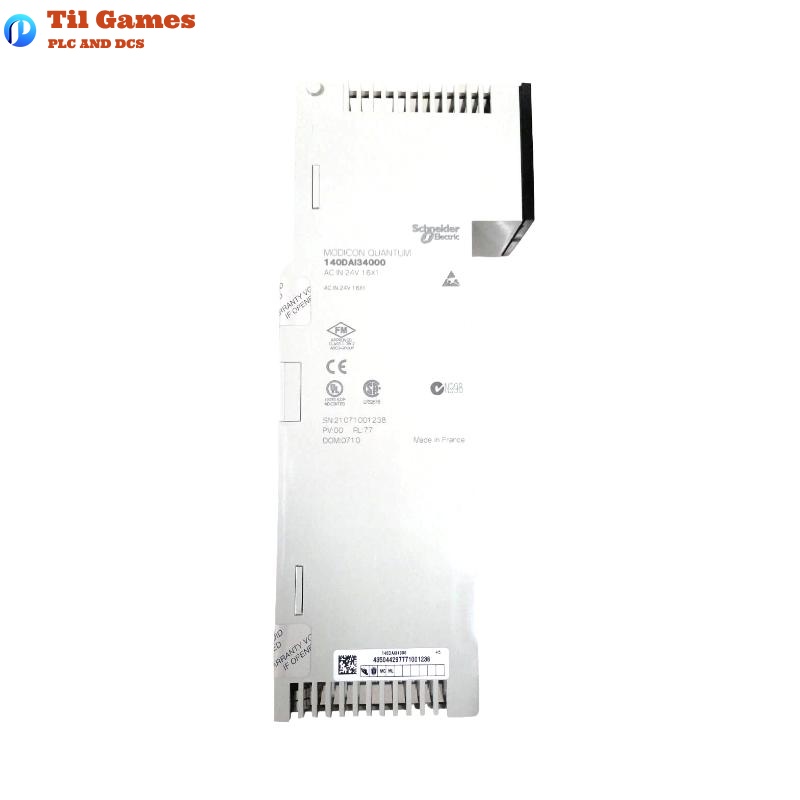

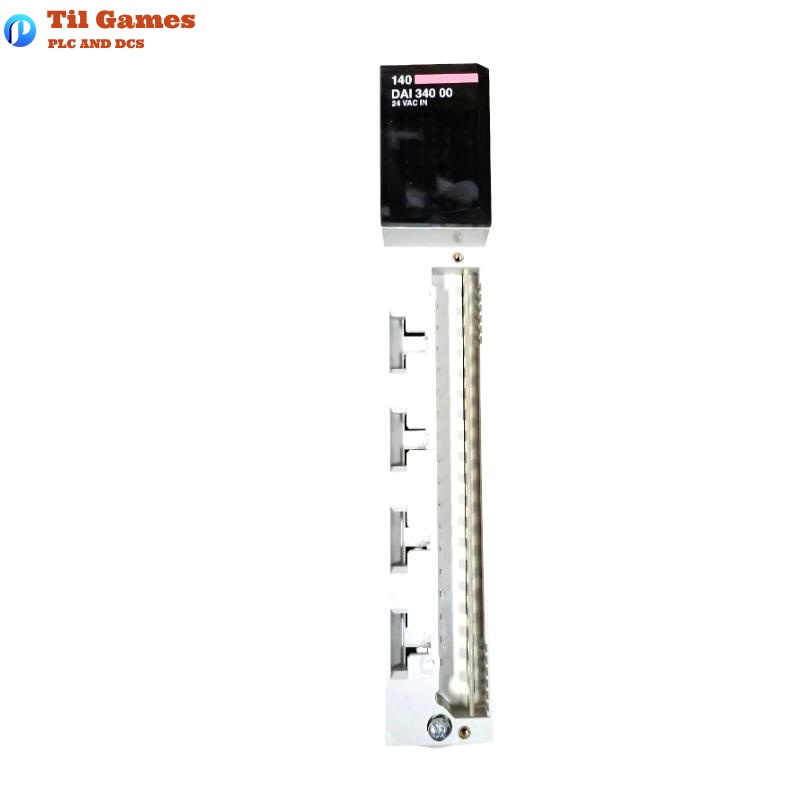

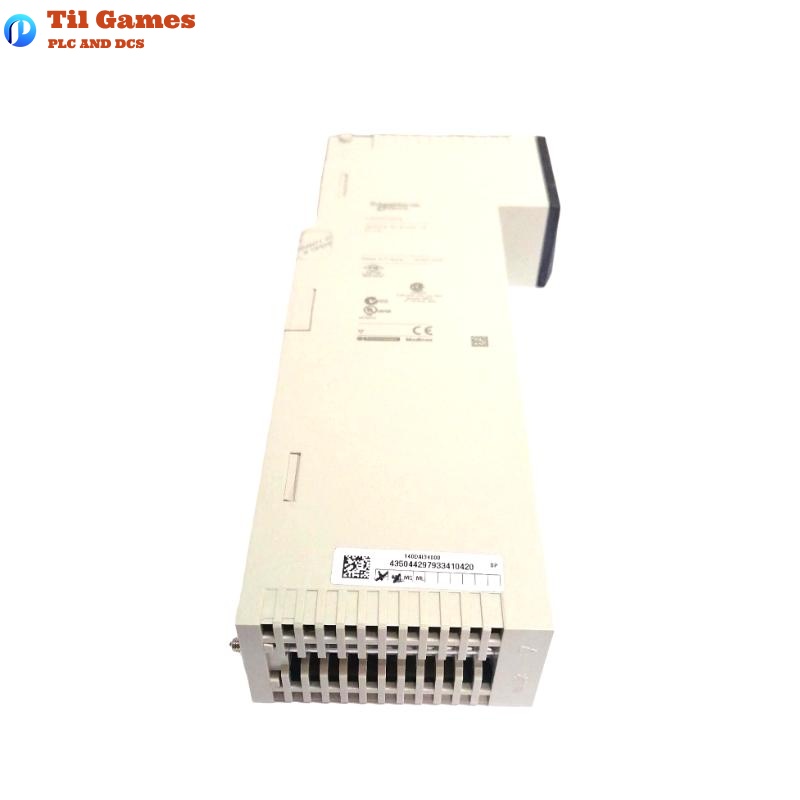

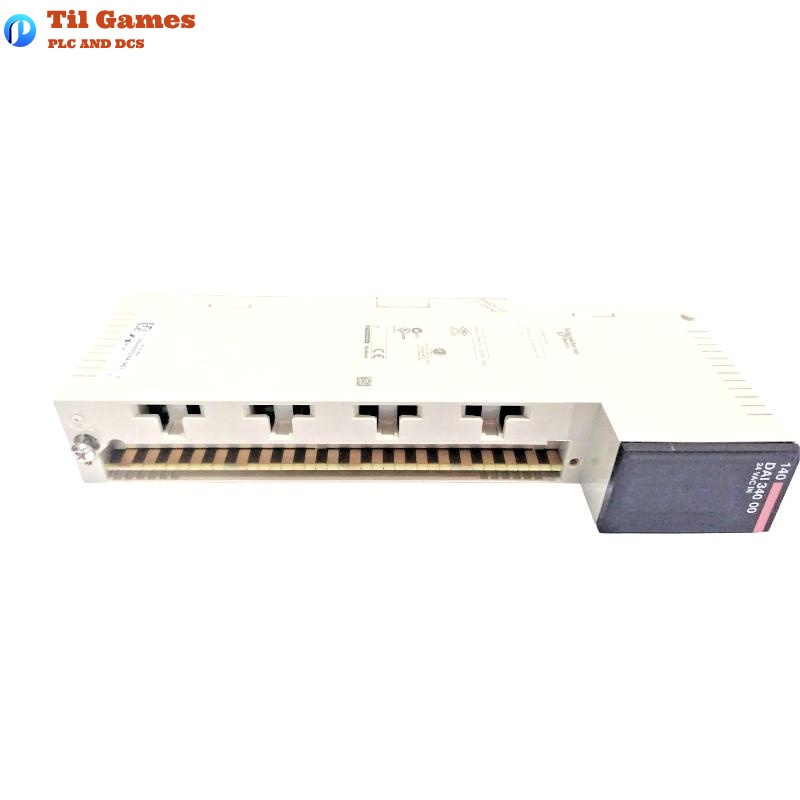

Technical Specifications
| Parameter | Details |
|---|---|
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | VAC discrete input module |
| Software Compatibility | Unity Pro, Concept, ProWORX 32 |
| Discrete Input Number | 16 |
| Group of Channels | 16 |
| Addressing Requirement | 1 input word |
| Discrete Input Voltage | 24 V AC |
| Input Current | 12 mA (57…63 Hz) 10.7 mA (47…53 Hz) |
| Voltage State 1 Guaranteed | 16…30 V AC (57…63 Hz) 18…30 V AC (47…53 Hz) |
| Voltage State 0 Guaranteed | 0…6 V AC (57…63 Hz) 0…5 V AC (47…53 Hz) |
| Input Impedance | 2600 Ohm capacitive (57…63 Hz) 3100 Ohm capacitive (47…53 Hz) |
| Network Frequency Limits | 47…63 Hz |
| Maximum Leakage Current | 1.9 mA |
| Absolute Maximum Input | 30 V continuous 32 V for 10 s 50 V for 1 cycle |
| Response Time | Off-On: 4.9…0.75 ms x line cycle On-Off: 7.3…12.3 ms |
| Isolation Between Channels | 1780 Vrms for 1 minute |
| Isolation Between Channel and Bus | 1780 Vrms for 1 minute |
| Bus Current Requirement | 180 mA |
| Maximum Power Dissipation | 5.5 W |
| Local Signaling | 1 green LED (bus communication) 1 red LED (external fault) 16 green LEDs (input status) |
| Marking | CE |
| Module Format | Standard |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg (0.7 lb) |
| Protective Treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508, CSA C22.2 No 142 |
| Certifications | FM Class 1 Division 2, cUL |
| ESD Resistance | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Field Resistance | 9.1 V/m (10 V/m), 80…2000 MHz (IEC 801-3) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% non-condensing |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
FAQ
FAQ
Q1: What is the input voltage supported by this module?
A1: The 140DAI34000C module supports 24 V AC input voltage.
Q2: How many discrete input channels are available?
A2: The module provides 16 discrete input channels.
Q3: Which programming software is compatible with this module?
A3: It is compatible with Unity Pro, Concept, and ProWORX 32.
Q4: What is the input response time?
A4: The Off-On response is 4.9…0.75 ms per line cycle; On-Off is 7.3…12.3 ms.
Q5: Does the module include status indicators?
A5: Yes, it includes 16 green LEDs for input status, one green LED for bus communication, and one red LED for external faults.
Q6: What is the operating temperature range for this module?
A6: The module operates within 0 to 60 °C (32 to 140 °F).
Q7: Does the module have ESD protection?
A7: Yes, it features ESD protection of 4 kV contact and 8 kV air, per IEC 801-2.
Q8: What are the dimensions and weight of the module?
A8: The module measures 103.9 × 40.3 × 250 mm and weighs 0.3 kg.
