Technical Specifications
| Item | Specification |
|---|---|

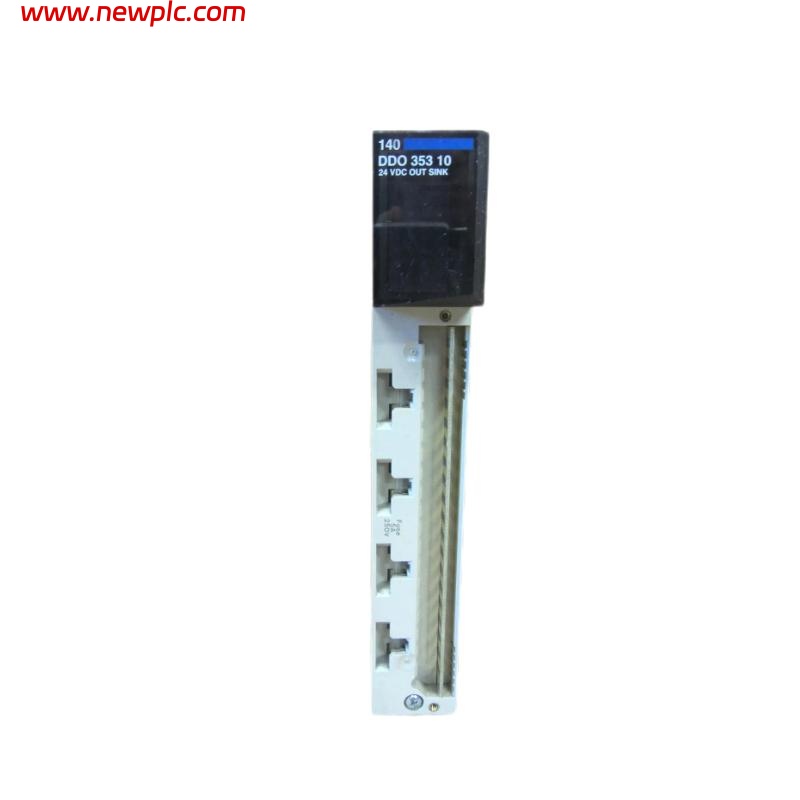

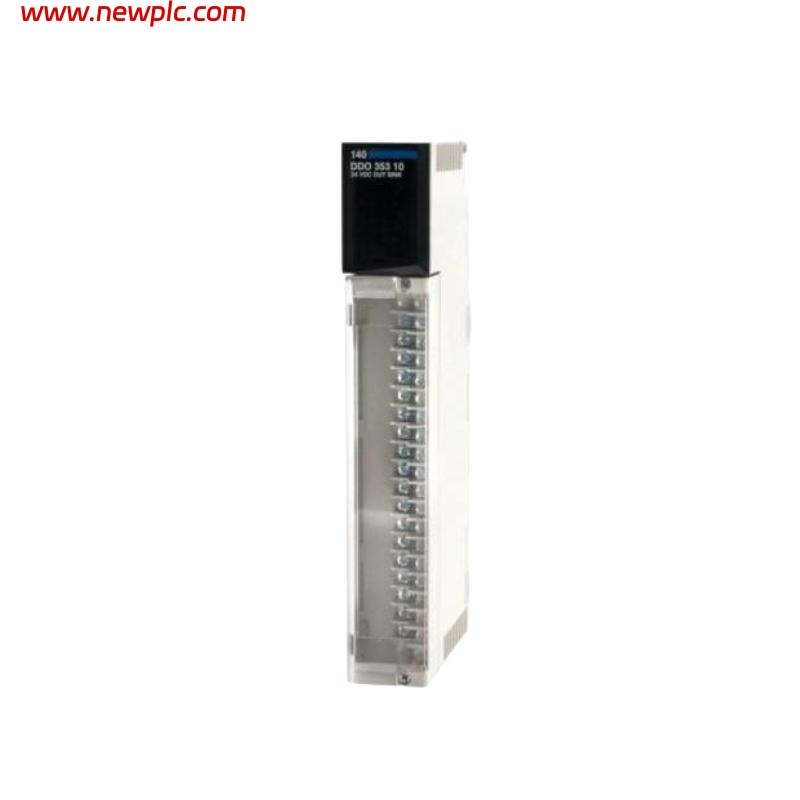

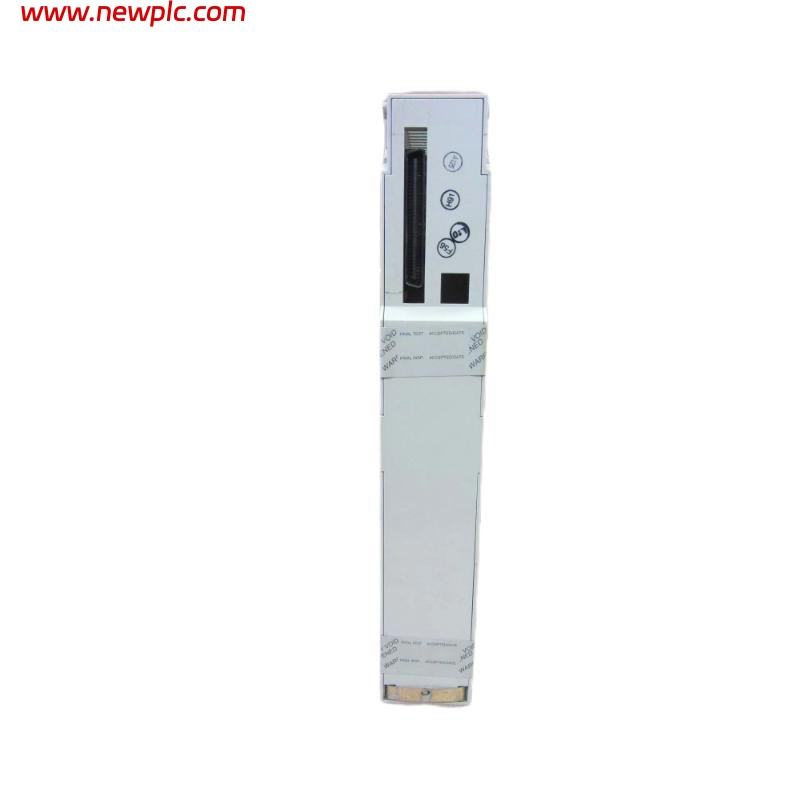

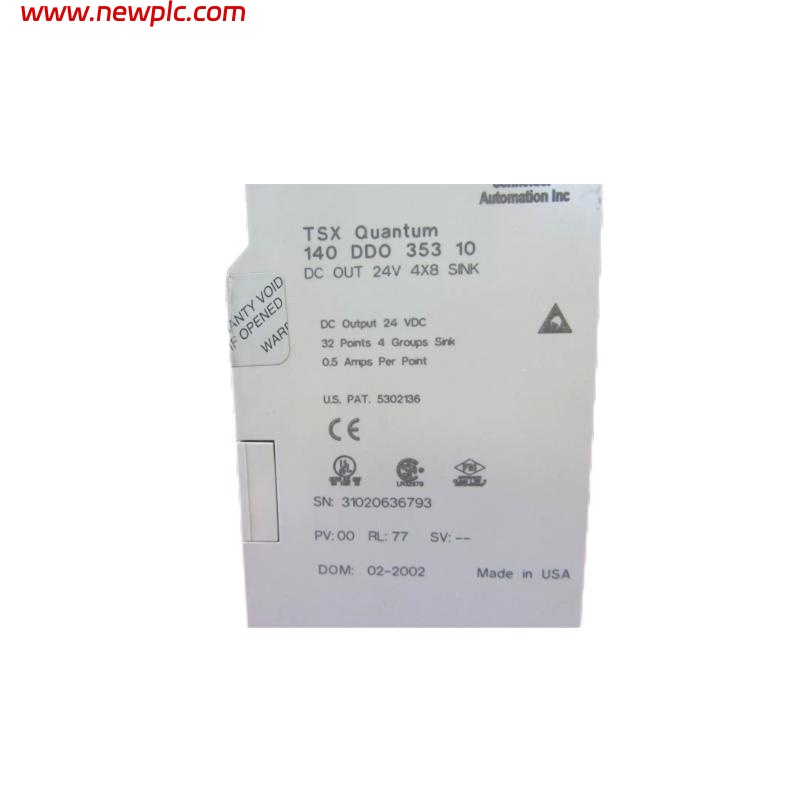

| Model | Schneider 140DD035310 |
| Type | DC Discrete Output Module |
| Product Category | PLC Output Module |
| Product Family | Modicon Quantum automation platform |
| Function | Provides DC discrete output signals for industrial control |
| Number of Output Channels | 3 outputs |
| Output Voltage Range | 10–60 V DC |
| Maximum Load Current | 3 A per output |
| Total Load Current | 3 A (shared across channels) |
| Output Logic | Positive logic (sourcing) |
| Response Time | Standard industrial discrete output response |
| Status Indication | LED indicators for each output channel |
| Isolation | Electrical isolation between channels and backplane |
| Protection Features | Internal protection for short circuit and overcurrent |
| Mounting Method | Rack or DIN rail via compatible Quantum base |
| Housing Material | Industrial‑grade plastic and metal contacts |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | Approx. 47 mm × 45 mm × 120 mm |
| Weight | Approximately 0.13 kg |
FAQ
FAQ
Q1: What is the main function of the 140DD035310 module?
It provides three discrete DC output channels for controlling field devices like relays, solenoids, or indicators in industrial systems.
Q2: How many outputs are available on the 140DD035310?
The module has 3 discrete DC output channels.
Q3: What voltage range does the module support?
It supports an output voltage range of 10–60 V DC.
Q4: What is the maximum current per output channel?
Each output channel can handle up to 3 A of load current.
Q5: What type of output logic does this module use?
It uses positive logic (sourcing), meaning outputs source current to energized devices.
Q6: Does the 140DD035310 provide status indication?
Yes, it includes LED indicators that show the ON/OFF status of each output channel.
Q7: Where is this module typically used?
It is used in industrial automation systems as part of the Modicon Quantum PLC configuration to drive discrete loads.
Q8: What are the physical dimensions and weight of the 140DD035310?
The module measures approximately 47 mm × 45 mm × 120 mm and weighs about 0.13 kg.
