Technical Specifications
| Item | Specification |
|---|---|

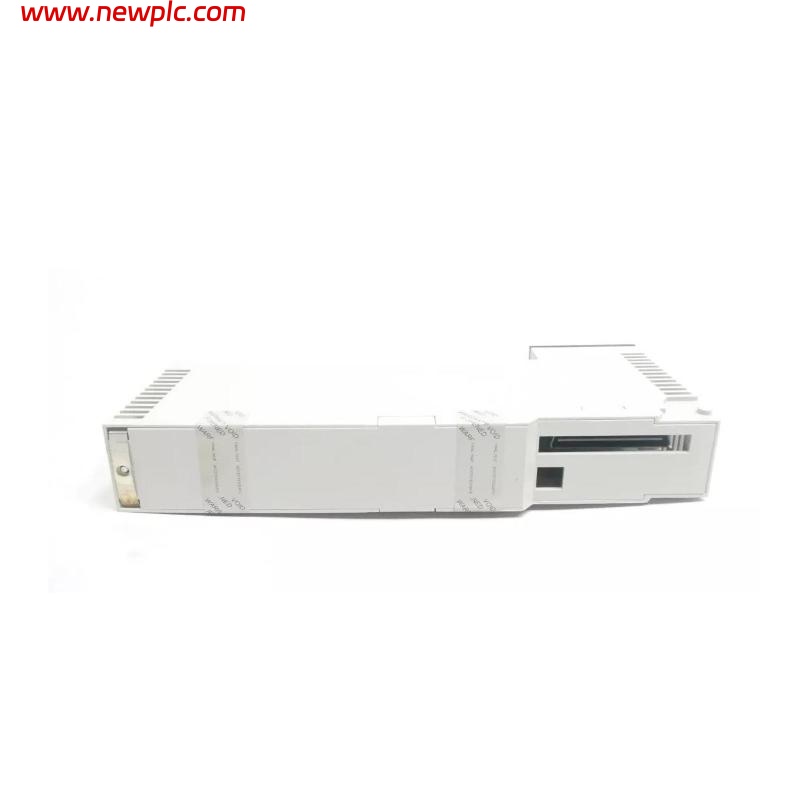

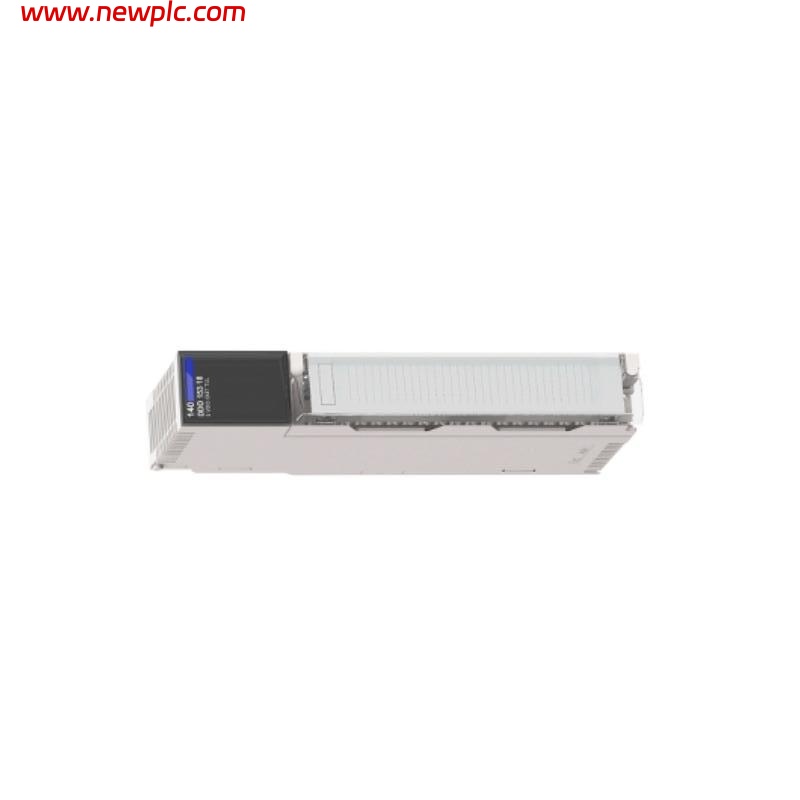

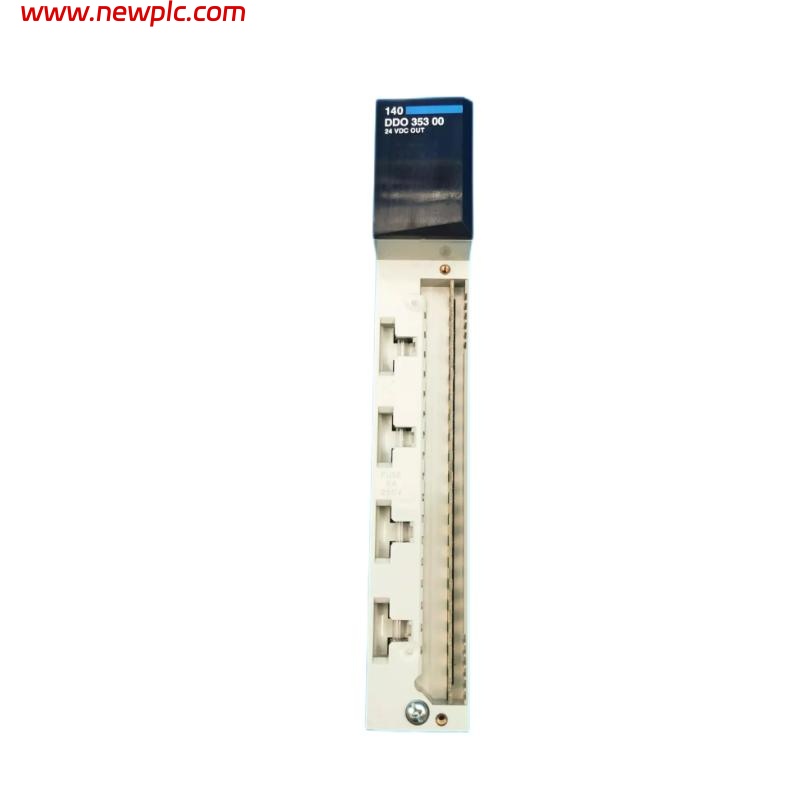

| Model | Schneider 140DD035300 |
| Type | DC Discrete Output Module |
| Product Category | PLC Output Module |
| Product Family | Modicon Quantum automation platform |
| Function | Provides DC discrete output signals for industrial control |
| Number of Output Channels | 3 outputs |
| Output Voltage Range | 10–60 V DC |
| Maximum Load Current | 3 A per output |
| Total Load Current | 3 A (shared) |
| Output Logic | Positive logic (sourcing) |
| Response Time | Typical industrial discrete response |
| Status Indication | LED indicators for each output channel |
| Isolation Ratings | Electrical isolation between channels and backplane |
| Protection Features | Internal protection for short circuit and overcurrent |
| Mounting Method | Rack or DIN rail via compatible Quantum base |
| Housing Material | Industrial‑grade plastic and metal contacts |
| Operating Temperature Range | 0 °C to +60 °C |
| Storage Temperature Range | –40 °C to +85 °C |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | Approx. 47 mm × 45 mm × 120 mm |
| Weight | Approximately 0.12 kg |
FAQ
FAQ
Q1: What is the primary function of the 140DD035300?
It provides discrete DC outputs that can switch field devices such as relays, contactors, or indicators in industrial automation systems.
Q2: How many output channels does this module have?
It has 3 discrete DC output channels.
Q3: What voltage range does this output module support?
It supports an output voltage range of 10–60 V DC.
Q4: What is the maximum load current per output?
Each output can handle up to 3 A of load current.
Q5: What type of logic does the module use?
It uses positive logic (sourcing) outputs, sourcing current to loads when active.
Q6: Does the 140DD035300 provide status indication?
Yes, it has LED indicators for each output channel to show whether the output is active.
Q7: What are the physical dimensions and weight of this module?
The module measures approximately 47 mm × 45 mm × 120 mm and weighs about 0.12 kg.
Q8: In what temperature conditions can this module operate?
It operates reliably from 0 °C up to +60 °C, with storage capability from –40 °C to +85 °C.
