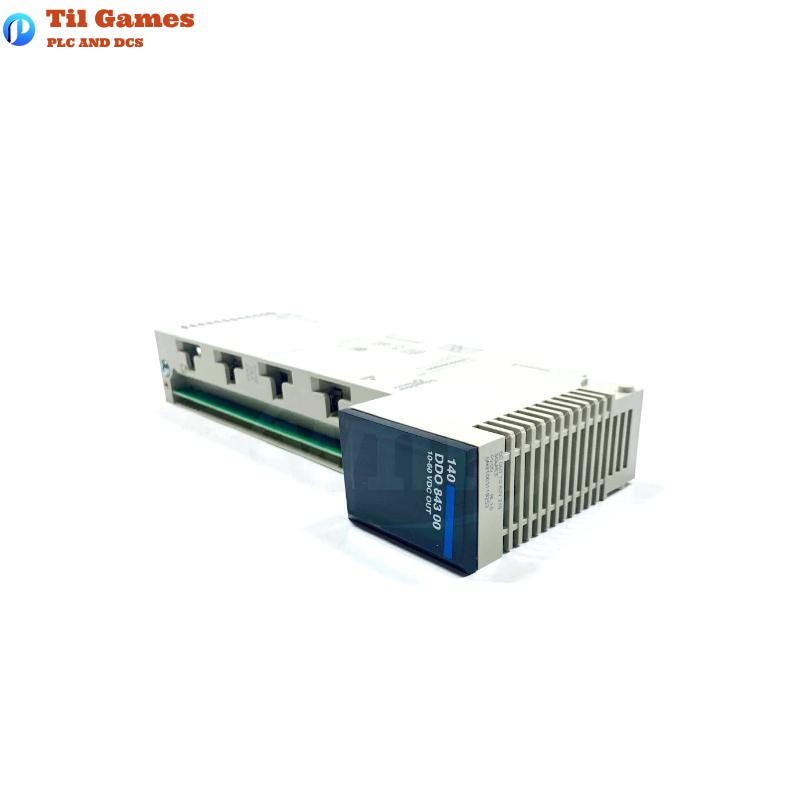

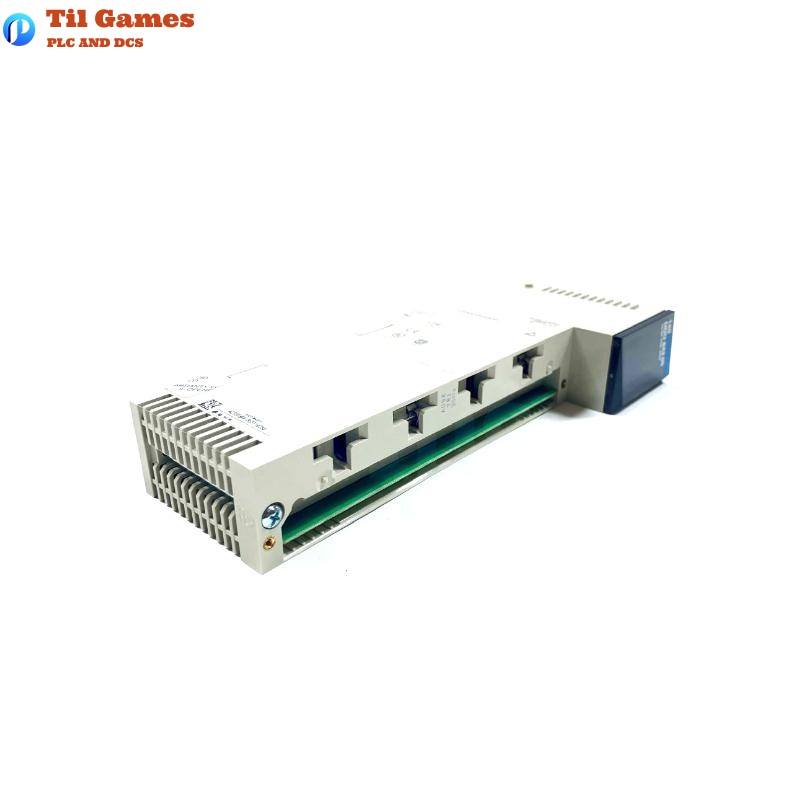

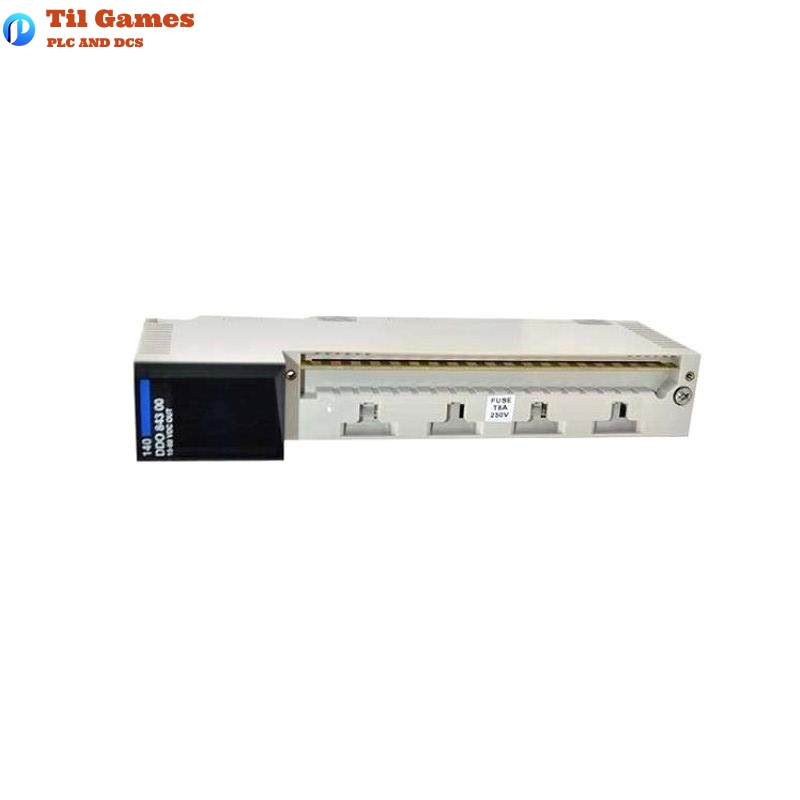

Schneider 140DDO84300 Discrete Output Module

Frequently Asked Questions (FAQ)

Q1: How many output channels does the 140DDO84300 module support?
A1: It supports 16 discrete outputs, organized into two groups of 8 channels.

Q2: Is the output logic sourcing or sinking?
A2: The module uses sourcing (positive logic) output.

Q3: What is the supported output voltage range?
A3: The operating voltage range is 10 to 60 V DC, with an absolute maximum of 72 V.

Q4: What is the maximum load current per group?
A4: Each group supports up to 6 A, with a module total of 12 A.

Q5: Does the module include output protection?
A5: Yes, it includes internal fuses rated at 8 A per group.

Q6: What is the response time for output switching?
A6: It is ≤ 1 millisecond for both OFF-to-ON and ON-to-OFF transitions.

Q7: What level of ESD protection does the module provide?
A7: It withstands 4 kV contact discharge and 8 kV air discharge per IEC 801-2.

Q8: What is the maximum operating altitude?
A8: The module is rated to operate at altitudes up to 5000 meters.
