Technical Specifications
| Item | Specification |
|---|---|

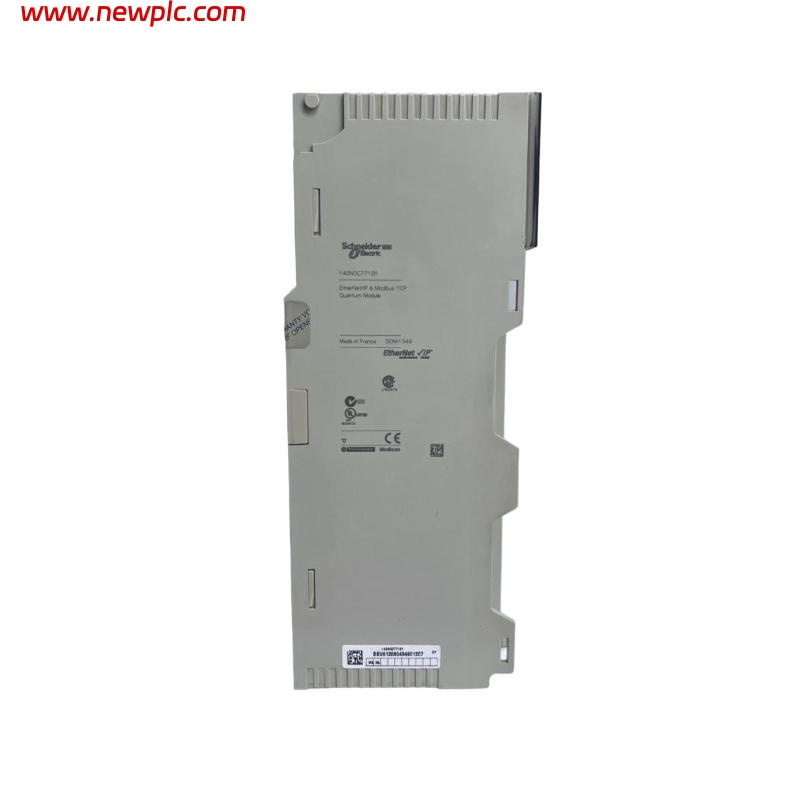

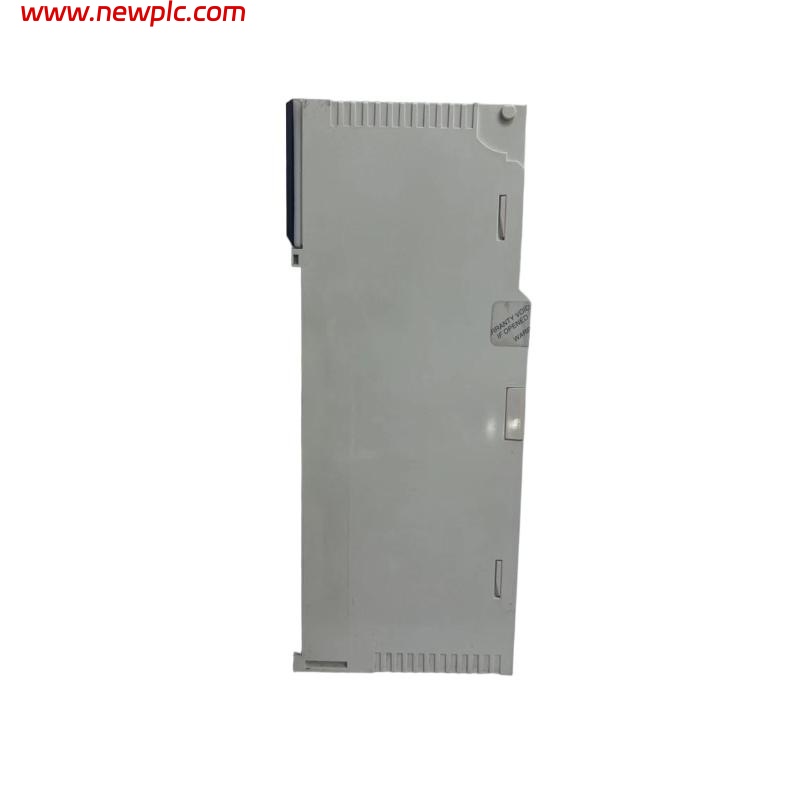

| Model | 140NOC77101 |
| Brand | Schneider Electric |
| Type | Ethernet Communication Module |
| Purpose | Provides communication between Modicon controllers and Ethernet networks |
| Supported Protocols | Modbus TCP/IP, Ethernet/IP |
| Data Transfer Rate | 10/100 Mbps |
| Network Interface | RJ45 port × 1 |
| Supply Voltage | 24 V DC |
| Supply Current | ≤ 200 mA |
| Operating Temperature | 0 ~ +60 ℃ |
| Storage Temperature | -20 ~ +70 ℃ |
| Mounting Type | DIN rail installation |
| Dimensions | Package dimensions: 50 x 165 x 315 mm |
| Weight | 0.345 kg |
| Compatible Products | Modicon M340 / M580 series controllers |
FAQ
FAQ
Q1: What is the primary purpose of this module?
It is used for data communication between Modicon controllers and Ethernet networks.
Q2: Which communication protocols does it support?
Supports Modbus TCP/IP and Ethernet/IP protocols.
Q3: What type of network interface does it have?
Equipped with one RJ45 port for Ethernet connection.
Q4: What is the data transfer rate?
Supports 10/100 Mbps adaptive speed.
Q5: What is the operating temperature range?
Operating temperature is 0 ~ +60 ℃.
Q6: What are the power requirements and current consumption?
Supply voltage is 24 V DC; current ≤ 200 mA.
Q7: How is the module installed?
Supports DIN rail installation.
Q8: What are typical applications for this module?
Used for Ethernet communication and remote networking of controllers in industrial automation systems.
