Technical Specifications
| Parameter | Specification |
|---|---|

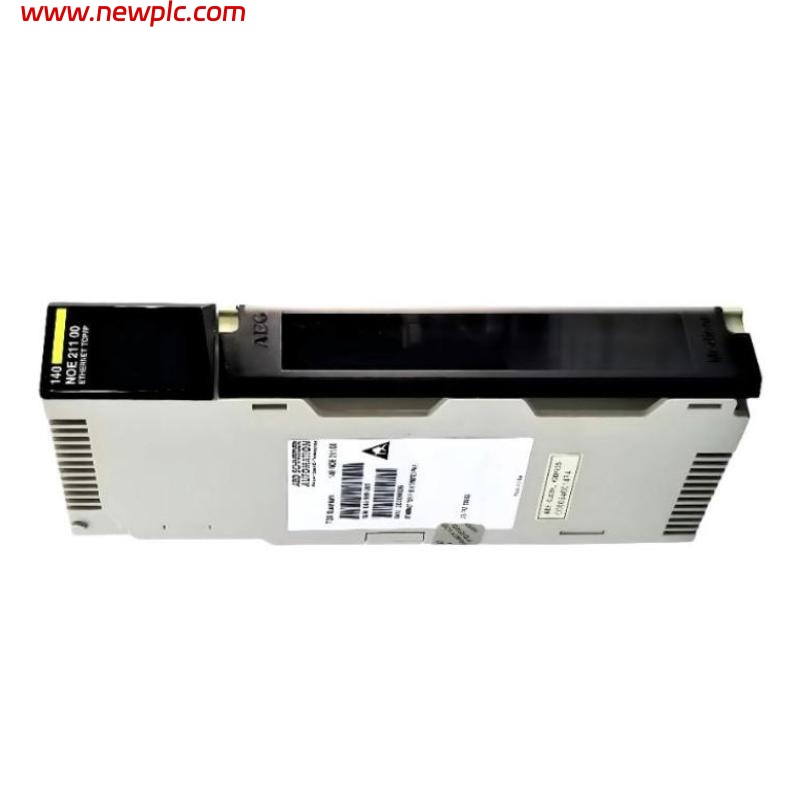

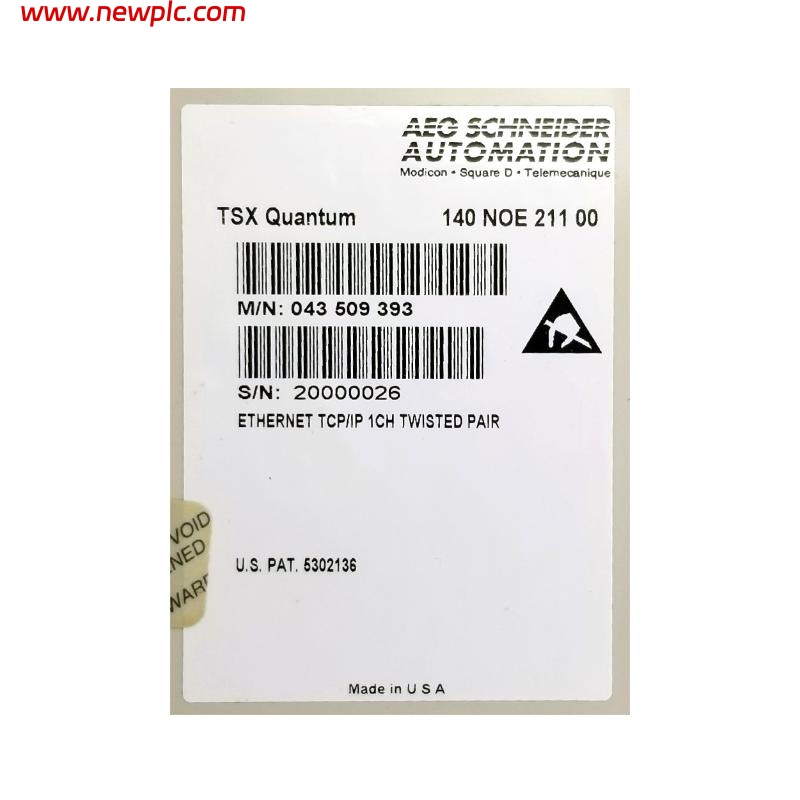

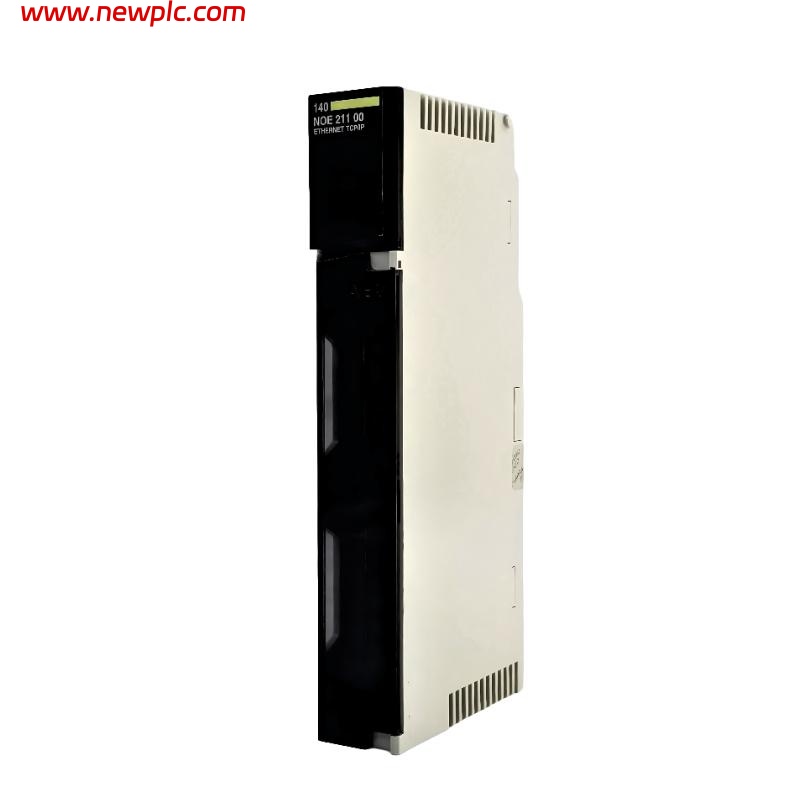

| Model | Schneider 140NOE21100C |
| Type | Ethernet Communication Module |
| Function | Provides industrial Ethernet communication for control and automation systems |
| Network Protocols | Ethernet/IP, Modbus TCP, PROFINET |
| Data Transfer Rate | 100 Mbps |
| Input Voltage | 24 VDC nominal |
| Communication Ports | 2 RJ-45 Ethernet ports |
| Redundancy Support | Ring and mesh network topology |
| Diagnostics | Network status LEDs, error detection, logging |
| Configuration | Compatible with Schneider Unity Pro or EcoStruxure Control Expert |
| Isolation | Optical and galvanic isolation between network and module circuits |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Panel or DIN rail mount |
| Compliance | CE, UL, and RoHS certified |
| Dimensions (HxWxD) | 103.9 × 40.3 × 250 mm |
| Weight | 0.5 kg |
FAQ
FAQ
Q1: What is the primary function of the Schneider 140NOE21100C?
A1: The 140NOE21100C enables industrial Ethernet communication, facilitating reliable data exchange between controllers, I/O modules, and human-machine interfaces in automation systems.
Q2: Which network protocols does this module support?
A2: It supports Ethernet/IP, Modbus TCP, and PROFINET, ensuring compatibility with a wide variety of industrial devices and networks.
Q3: How many Ethernet ports are available on the module?
A3: The module includes two RJ-45 Ethernet ports, which can be used for redundant or independent network connections.
Q4: Does the module support network redundancy?
A4: Yes, it supports ring and mesh network topologies, maintaining continuous communication even in the event of a single link failure.
Q5: What diagnostic features does the 140NOE21100C provide?
A5: It offers network status LEDs, error detection, and logging functions to monitor communication health and troubleshoot potential network issues efficiently.
Q6: How is the module configured or managed?
A6: The module is compatible with Schneider’s Unity Pro or EcoStruxure Control Expert software, allowing easy network configuration, monitoring, and management.
Q7: What protection measures are included to ensure network reliability?
A7: Optical and galvanic isolation is provided between network circuits and the module, safeguarding against electrical noise, surges, and potential faults.
Q8: What environmental conditions can the 140NOE21100C operate in?
A8: The module is designed for industrial use, operating within 0°C to 55°C and 5% to 95% non-condensing humidity, suitable for standard automation environments.
