Technical Specifications
| Item | Specification |
|---|---|

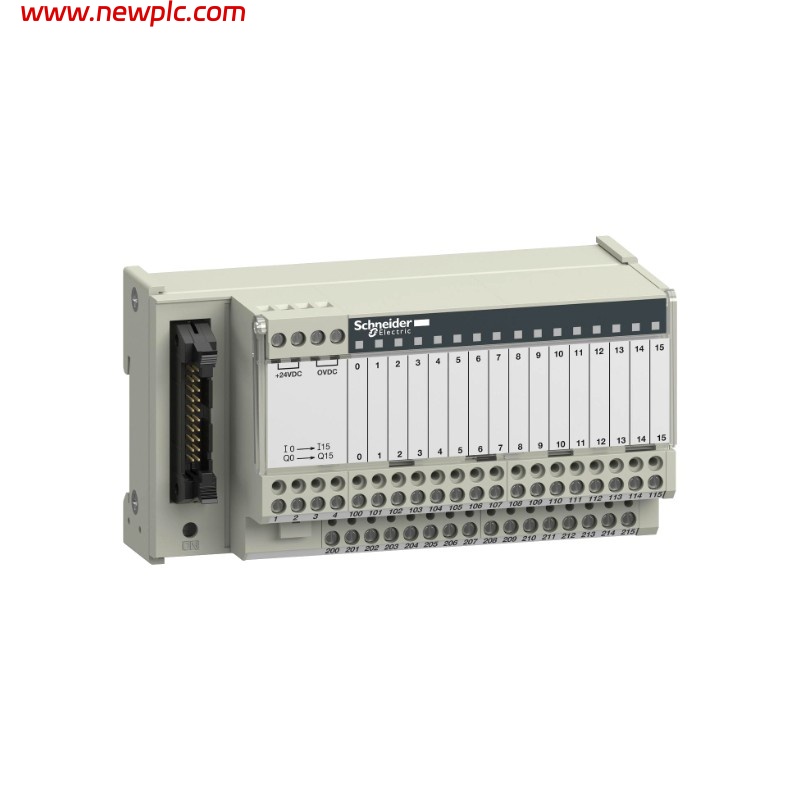

| Model | Schneider ABE7H16R21 |
| Type | Passive Connector Subbase |
| Number of Channels | 16 |
| Terminals per Channel | 2 screw terminals |
| Rated Supply Voltage | 19–30 V DC |
| Maximum Supply Current | 1.8 A |
| Current per Channel | 0.5 A |
| Rated Insulation Voltage | 2000 V |
| Operating Temperature | –5 °C to +60 °C |
| Storage Temperature | –40 °C to +80 °C |
| Protection Rating | IP2x |
| Connection Type | Screw terminals, supports multiple wire sizes (solid and stranded) |
| Dimensions | 125 x 70 x 67 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: How many input or output channels does this subbase support?
A1: It supports 16 input or output channels, each with 2 screw terminals.
Q2: Does it have status LEDs?
A2: Yes, each channel has an LED status indicator, and there is a power indicator LED.
Q3: What is the supply voltage range?
A3: Rated voltage is 19–30 V DC.
Q4: What is the maximum current per channel?
A4: 0.5 A per channel, with a total maximum supply current of 1.8 A.
Q5: Is it suitable for industrial environments?
A5: Yes, it operates at –5 °C to +60 °C and has an IP2x protection rating.
Q6: What cable sizes are supported by the terminals?
A6: Supports a range of wire sizes, both solid and stranded, 1 × 0.09–1.5 mm².
Q7: How is it mounted?
A7: Can be mounted on a standard 35 mm DIN rail or fixed to a panel with screws.
Q8: Will replacing the subbase affect the system?
A8: It is designed for plug-and-play replacement; quick replacement is possible, but it is recommended to operate under power-off conditions for safety.
