Technical Specifications
| Item | Specification |
|---|---|

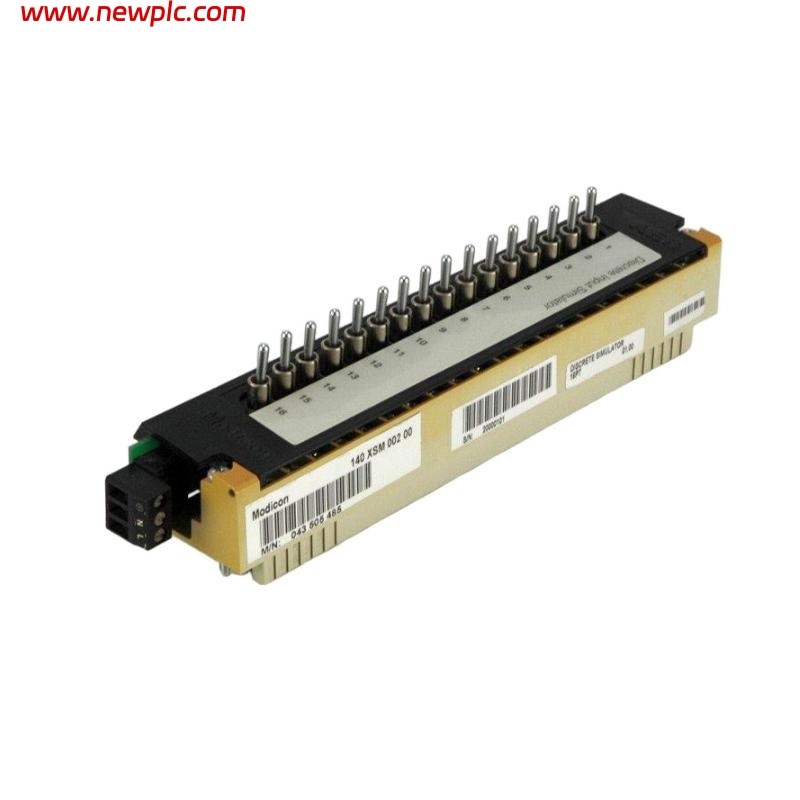

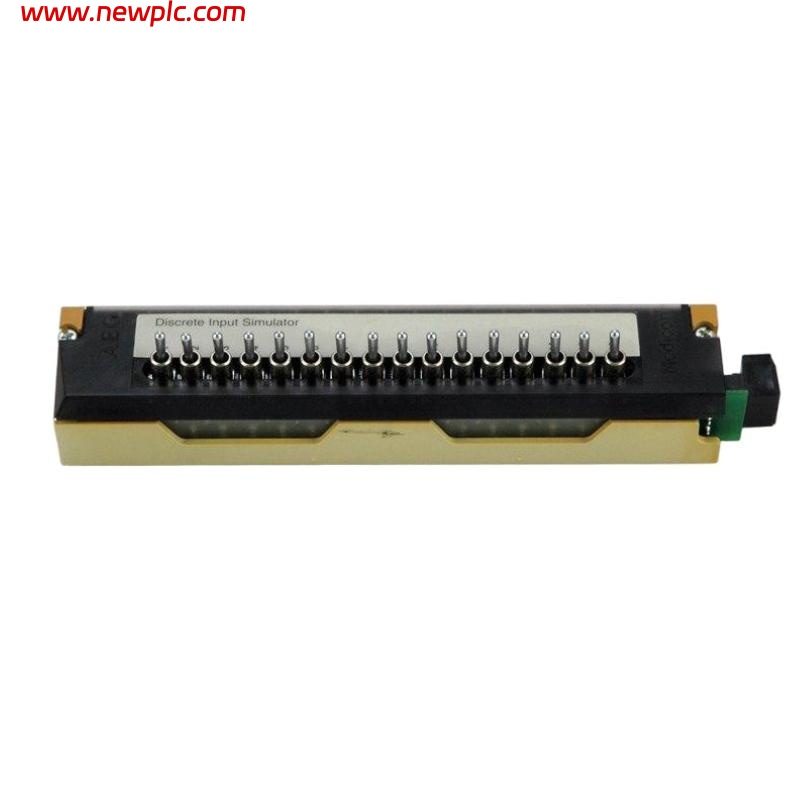

| Model | Schneider 140XSM00200 |
| Product Type | Discrete Input Simulator |
| Series | Modicon / 140 Series |
| Function | Simulates digital input signals for testing and validation of PLC systems without actual field devices |
| Input Simulation Channels | 16 simulated discrete inputs |
| Input Voltage | 24 V DC nominal |
| Input Current | 5 mA per channel typical |
| Output Type | Digital logic signals compatible with PLC input modules |
| Response Time | <5 ms per channel |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Mounting Type | DIN rail or backplane compatible |
| LED Indicators | Status LEDs for each simulated input channel |
| Dimensions | 35 x 147 x 116 mm |
| Weight | 0.35 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Application | Used in PLC system testing, simulation, and troubleshooting for discrete input channels |
| Certifications | CE, UL |
FAQ
FAQ
Q1: What is the main function of the 140XSM00200 module?
A1: It simulates digital input signals for testing PLC systems without actual field devices.
Q2: How many simulated input channels does it have?
A2: 16 simulated discrete input channels.
Q3: What are the input voltage and current for simulation?
A3: 24 V DC nominal voltage, 5 mA typical current per channel.
Q4: What type of output signals does it provide?
A4: Digital logic signals compatible with PLC input modules.
Q5: What is the response time?
A5: Less than 5 ms per channel (typical).
Q6: Does it provide isolation protection?
A6: Yes, channel-to-channel and channel-to-backplane isolation.
Q7: Does the module have status indicators?
A7: Yes, each channel has a status LED.
Q8: What should be noted during installation?
A8: Ensure secure DIN rail or backplane mounting, prevent static discharge, and check LED indicators for proper operation.
