Technical Specifications
| Item | Specification |
|---|---|

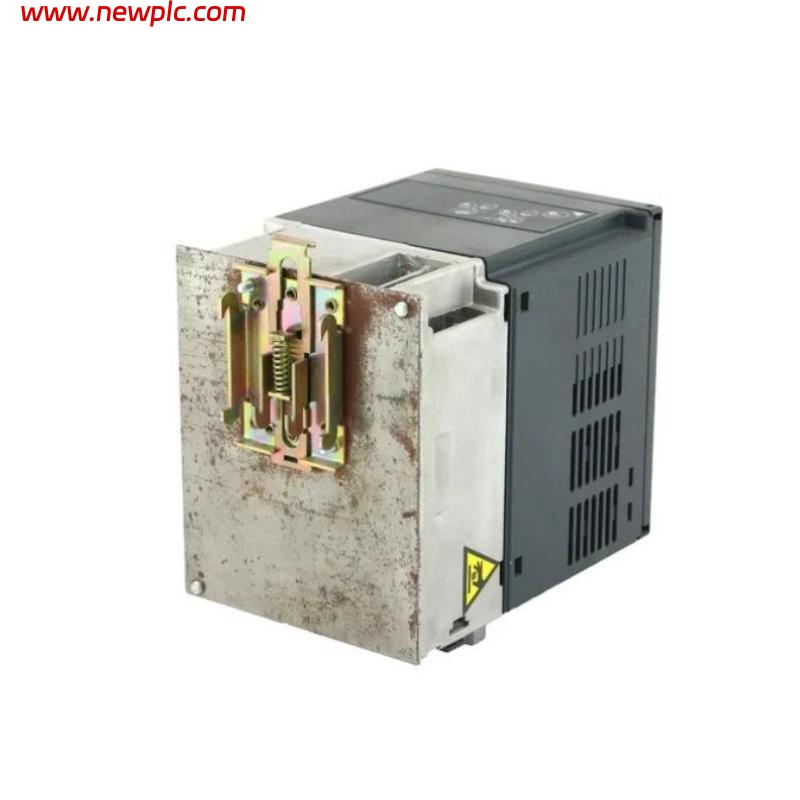

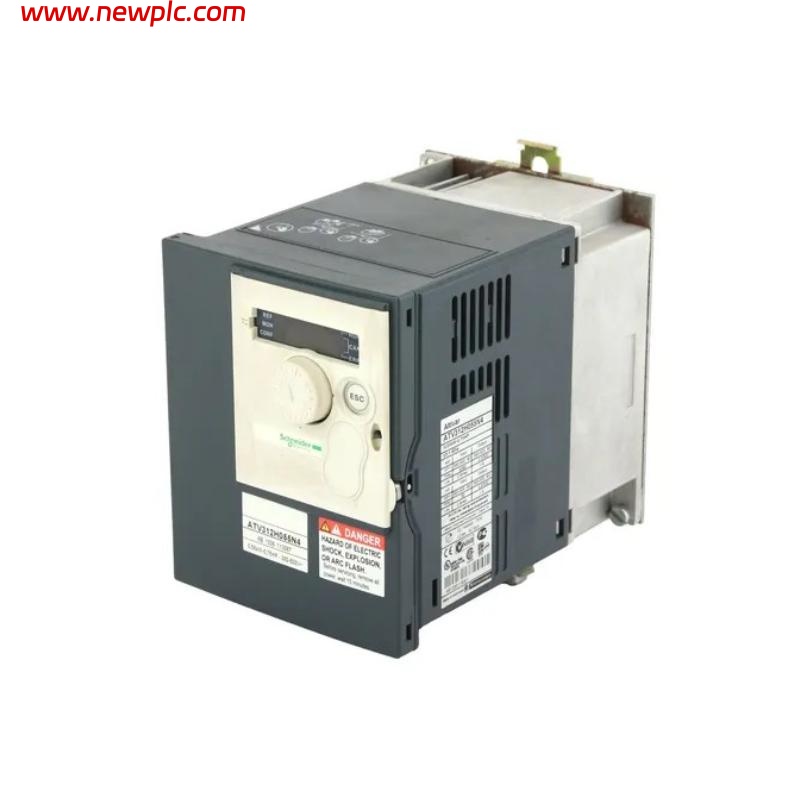

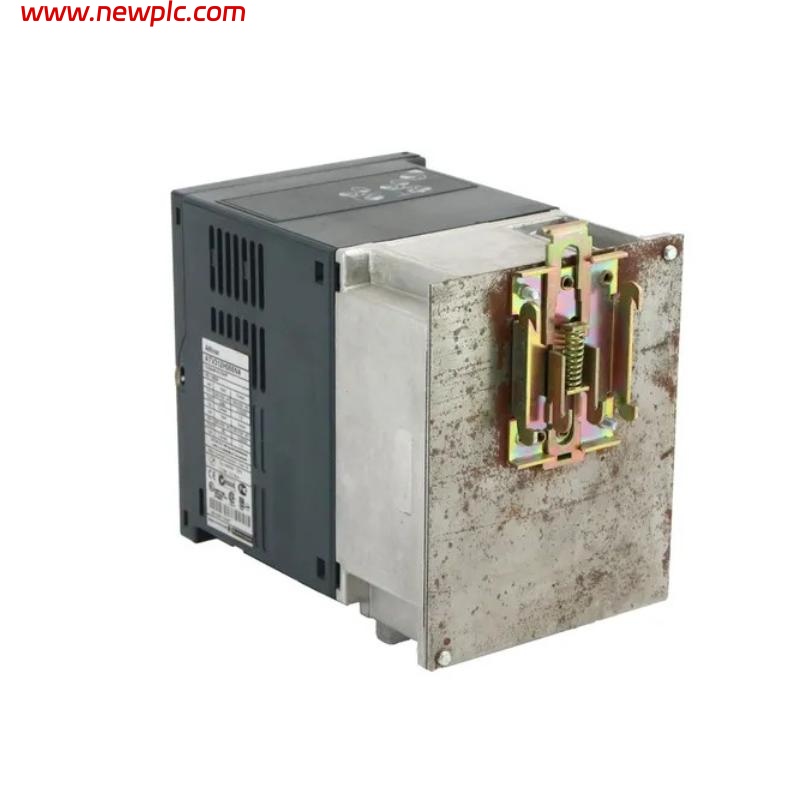

| Model | Schneider ATV312H055N4 |
| Product Type | Variable Speed Drive (VSD) |
| Series | Altivar 312 / ATV312 |
| Function | Controls speed and torque of three-phase AC motors for industrial automation and energy savings |
| Motor Power | 55 kW (75 HP) |
| Input Voltage | 380–480 V AC, 3-phase |
| Output Voltage | 0–480 V AC, 3-phase |
| Input Frequency | 50/60 Hz |
| Output Frequency | 0–500 Hz |
| Rated Current | 108 A |
| Control Type | V/F, V/F with Slip Compensation, Sensorless Vector Control |
| Protection Features | Overload, overcurrent, overvoltage, undervoltage, motor stall, short-circuit |
| Communication | Modbus RTU, CANopen, optional Ethernet/IP or Profibus (with adapters) |
| Mounting Type | Wall mount / enclosure compatible |
| Cooling | Forced air (built-in fan) |
| Dimensions | 143 x 107 x 152 mm |
| Weight | 1.8 kg |
| Operating Temperature | -10°C to +50°C (derating above 40°C) |
| Storage Temperature | -40°C to +70°C |
FAQ
FAQ
Q1: What is the main function of the ATV312H055N4?
A1: It controls the speed and torque of three-phase AC motors for industrial automation and energy savings.
Q2: What motor power is supported?
A2: Supports 55 kW (75 HP) three-phase motors.
Q3: What are the input and output voltage ranges?
A3: Input voltage 380–480 V AC, output voltage 0–480 V AC.
Q4: Which control modes are supported?
A4: V/F control, V/F with slip compensation, and sensorless vector control.
Q5: Does it have protection features?
A5: Yes, including overload, overcurrent, overvoltage, undervoltage, motor stall, and short-circuit protection.
Q6: Which communication protocols are supported?
A6: Built-in Modbus RTU, CANopen, with optional Ethernet/IP or Profibus via adapters.
Q7: What is the mounting and cooling method?
A7: Wall mount or enclosure installation, forced air cooling via built-in fan.
Q8: What is the operating temperature range?
A8: -10°C to +50°C (derating above 40°C).
