Technical Specifications
| Parameter | Description |
|---|---|

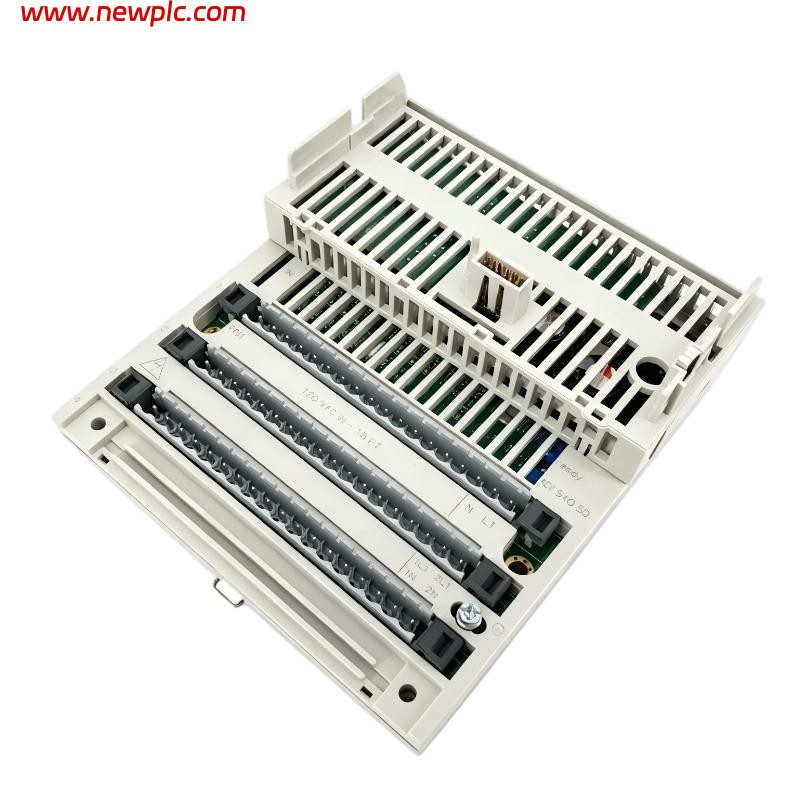

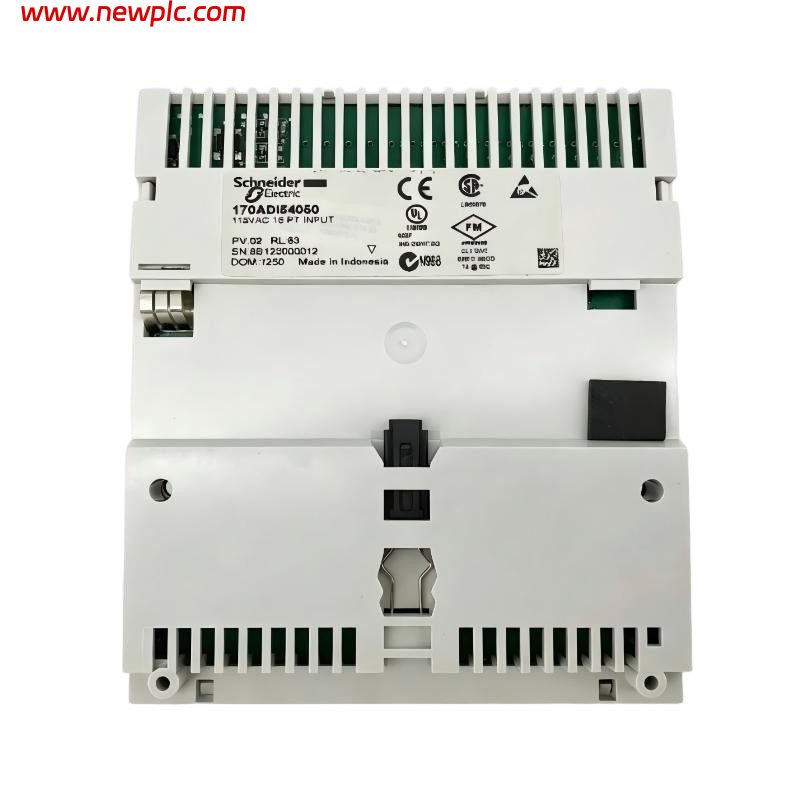

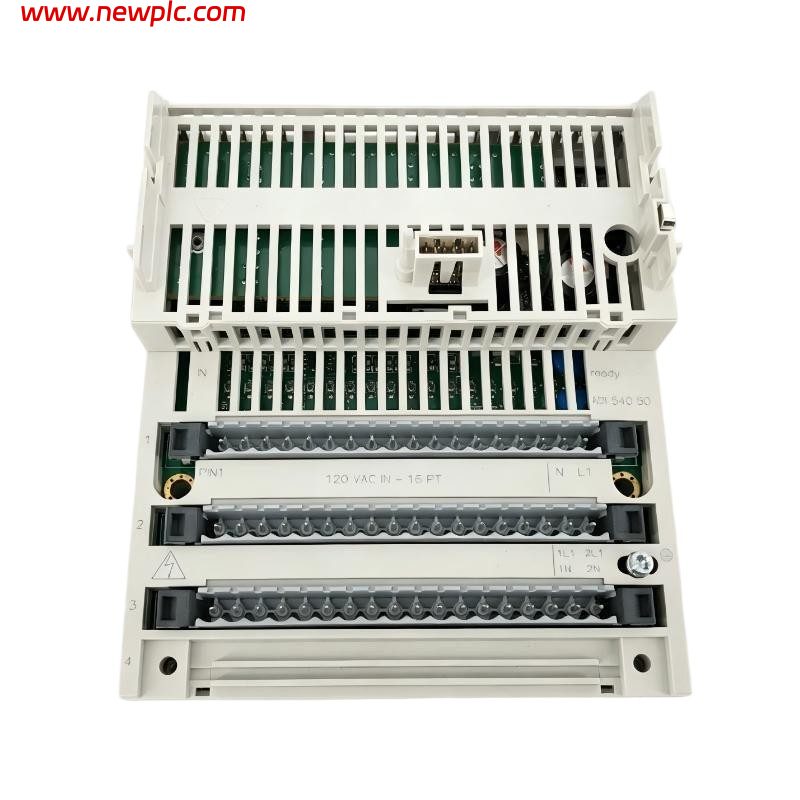

| Product Name | Schneider Electric 170ADI54050 |
| Part Number | 170ADI54050 |
| Product Type | Discrete Input Module (Modicon Momentum Series) |
| Manufacturer | Schneider Electric |
| Range | Modicon Momentum automation platform |
| Function | Receives and processes AC digital input signals from field devices into PLC logic |
| Application | Industrial automation / distributed I/O systems / Modicon Momentum PLC architecture |
| Input Type | AC discrete input |
| Input Voltage | 100–120 V AC |
| Number of Channels | 16 inputs |
| Channel Configuration | 2 groups of 8 inputs |
| Input Logic | Positive logic (IEC 61131-2 Type 2) |
| Input Voltage Range | 85–132 V AC |
| Frequency Range | 47–63 Hz |
| Input Current (ON state) | ≥ 10 mA |
| Input Current (OFF state) | ≤ 2 mA |
| Input Resistance | ~7.5 kΩ (60 Hz) / 9.5 kΩ (50 Hz) |
| Response Time | ~10 ms (ON), ~35 ms (OFF) |
| Isolation | 1780 V AC (channel-to-bus and group isolation) |
| Status Indication | 16 LED indicators (per channel) |
| Power Consumption | ~125 mA |
| Mounting Type | Momentum base / rack or wall-mounted modular system |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% RH non-condensing |
| Dimensions (W × H × D) | 125 × 141.5 × 47.5 mm |
| Weight | ~0.28 kg |
FAQ
FAQ
Q1: What is Schneider 170ADI54050 used for?
A1: It is used to convert 120 V AC field signals from switches, sensors, and devices into digital inputs for PLC systems.
Q2: Is 170ADI54050 a module or a cable?
A2: It is a discrete input module in the Modicon Momentum PLC system.
Q3: How many inputs does it have?
A3: It provides 16 AC discrete input channels.
Q4: What voltage does it support?
A4: It supports 100–120 V AC input signals.
Q5: What is its system compatibility?
A5: It is used in Schneider Modicon Momentum automation platforms.
Q6: What is its response time?
A6: Approximately 10 ms ON and 35 ms OFF at 60 Hz.
Q7: What are its physical dimensions?
A7: 125 × 141.5 × 47.5 mm.
Q8: What is its weight?
A8: Approximately 0.28 kg.
