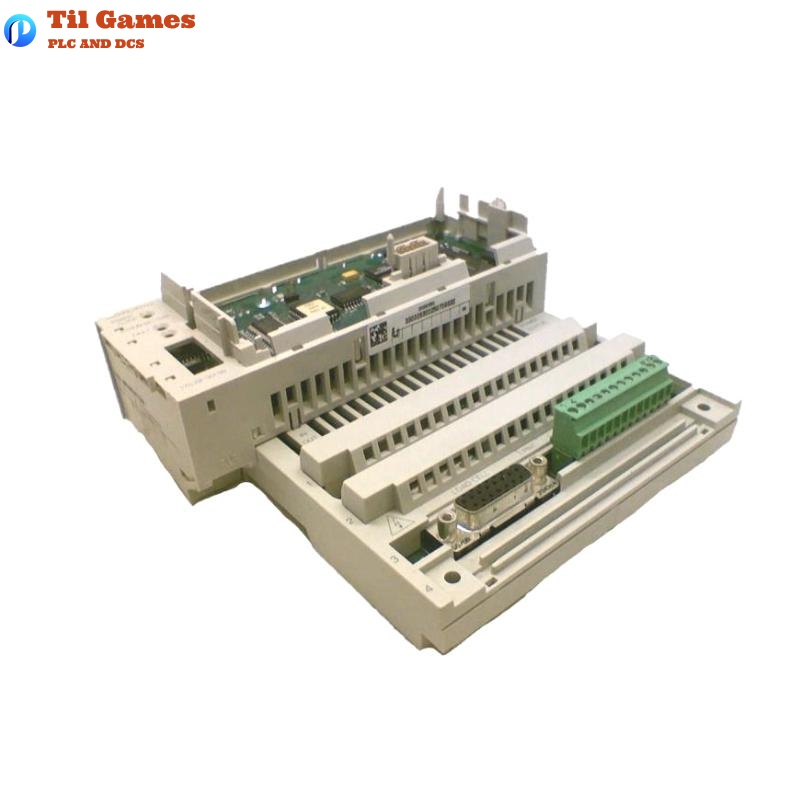

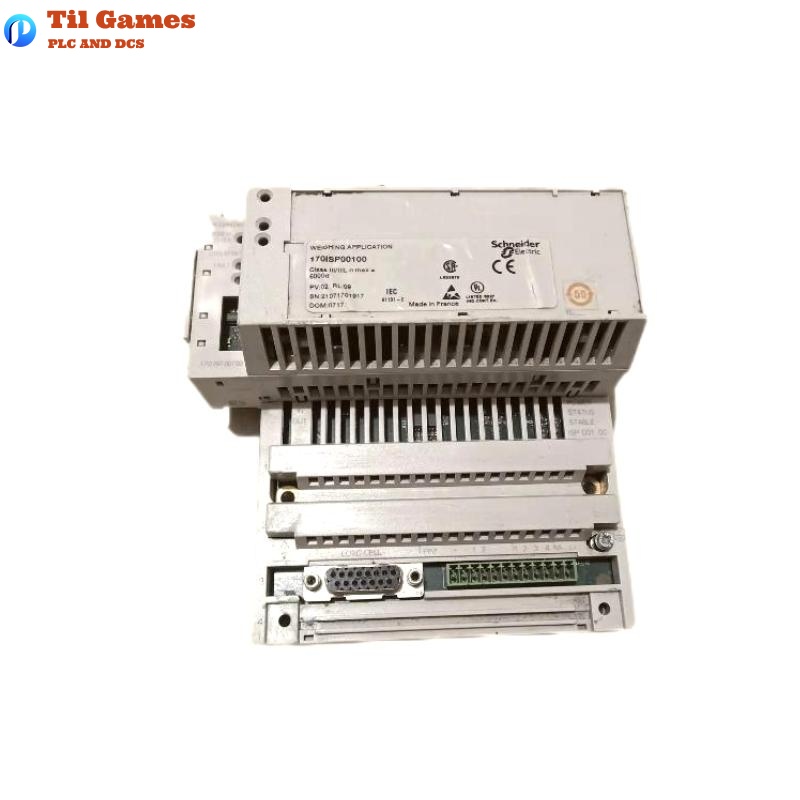

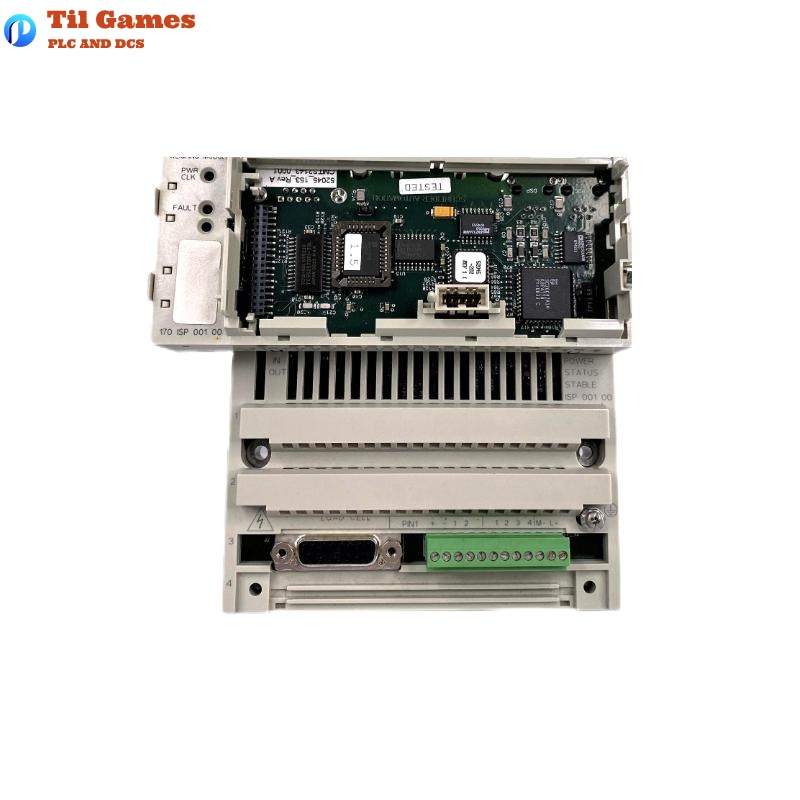

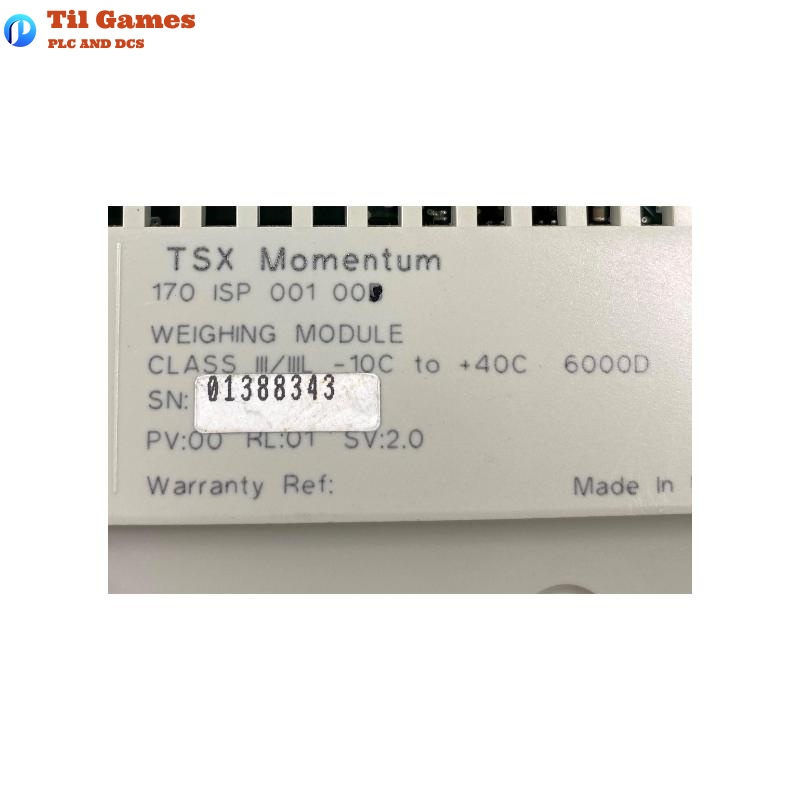

Technical Specifications – Schneider 170ISP00100 Weighing Module
| Parameter | Technical Data |
|---|---|
| Product Model | 170ISP00100 |
| Product Type | Weighing Module |
| Series | Modicon Momentum |
| Signal Type | Analog Input |
| Function | Industrial weighing and weight measurement |
| Input Signal Range | Typically millivolt-level (load cell) |
| Input Channels | 1 channel weighing input |
| Communication Port | Connects to Momentum base unit |
| Isolation | Supported |
| Power Supply | Supplied by Momentum base unit |
| Dimensions | 125 x 95 x 40 mm |
| Weight | 0.322 kg |
| Operating Temp. | 0°C to 60°C |
| Storage Temp. | -40°C to 85°C |
| Protection Rating | IP20 |
| Installation | Vertical mounting recommended (DIN rail) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of load cells does the 170ISP00100 support?
A1: It supports strain gauge load cells with mV/V output.
Q2: Does the module have electrical isolation?
A2: Yes, it provides electrical isolation between analog input and the system bus.
Q3: Does it require an external power source?
A3: No, it is powered through the Momentum base unit.
Q4: Is the module multi-channel?
A4: No, it only supports a single weighing input channel.
Q5: Which Momentum modules are compatible with 170ISP00100?
A5: It works with 170 series I/O modules, base units, and communication modules.
Q6: How is the module mounted?
A6: It is mounted on a DIN rail, vertical orientation is recommended.
Q7: What industrial protocols does it support?
A7: Protocol support depends on the connected base module (e.g., Modbus, Ethernet).
Q8: Does the module require calibration?
A8: Yes, zero and span calibration must be performed during initial setup or sensor replacement.
