Technical Specifications
| Parameter | Description |
|---|---|
| Range of Product | Modicon Momentum automation platform |

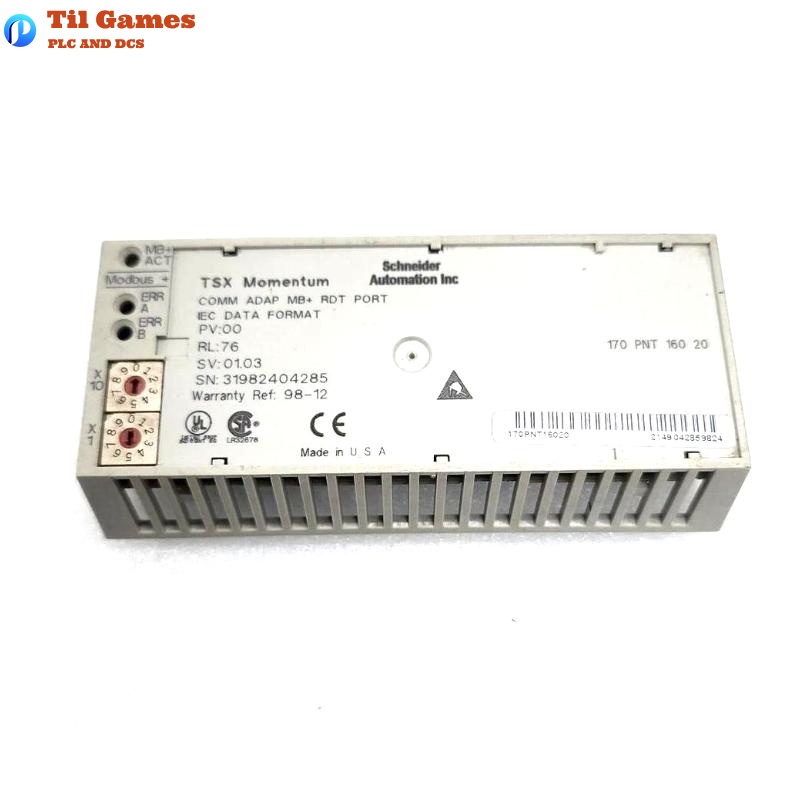

| Product or Component Type | Modbus Plus communication adaptor |
| Bus Manager PLC | Quantum |
| Structure Type | Industrial |
| Communication Port Protocol | Modbus Plus |
| Method of Access | Token bus, Peer-to-peer |
| Transmission Rate | 1 Mbit/s |
| Transmission Support Medium | Twisted pair |
| Redundancy | Yes |
| Topology | Multidrop, device connecting by extension or tap-off cable |
| Number of Devices per Segment | 0…31 per segment, 0…63 for all segments |
| Maximum Cable Distance | 5000 m (16404.2 ft) with repeater |
| Data Format | IEC 61131-2 |
| Fail State | Forcing to state zero |
| Full Scale Value | Fallback to zero |
| Maintain Value | Yes |
| Supply | From I/O base |
| Marking | CE |
| Local Signalling | 1 green LED (MB + ACT), 2 red LEDs (ERR A and ERR B) |

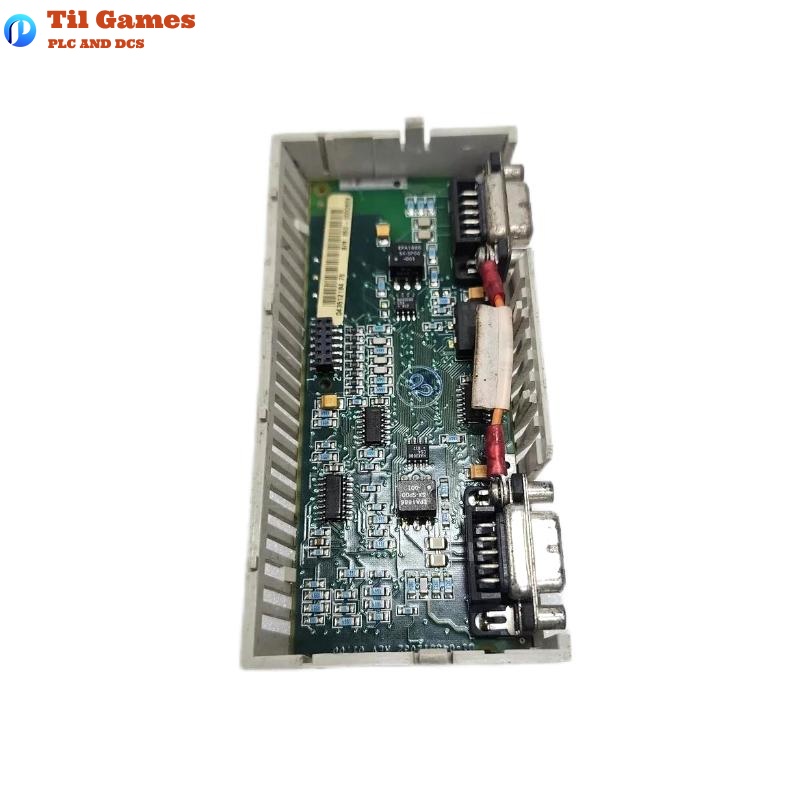

| Electrical Connection | 2 x SUB-D 9 connectors (for Modbus Plus and redundant network) |
| Product Certifications | CSA, UL |
| Standards | FM Class 1 Division 2 |
| Protective Treatment | TC |
| Electrostatic Discharge Resistance | 4 kV contact, 8 kV air (IEC 801-2) |
| Electromagnetic Field Resistance | 10 V/m, 80–1000 MHz (IEC 801-3) |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 95% without condensation |
| Operating Altitude | ≤ 5000 m (16404.2 ft) |
| Dimensions (W × H × D) | 54 × 178 × 258 mm |
| Weight | 0.091 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of communication protocol does the 170PNT16020 adaptor use?
A1: It uses the Modbus Plus protocol for high-speed peer-to-peer communication.
Q2: How many devices can be connected on a single segment?
A2: Up to 31 devices per segment, and up to 63 devices across all segments.
Q3: Is the adaptor capable of supporting redundant communication?
A3: Yes, it includes a redundant port for Modbus Plus network.
Q4: What is the data transmission speed of the module?
A4: It supports a transmission rate of 1 Mbit/s.
Q5: What happens when the system enters a fail state?
A5: The module forces the outputs to state zero.
Q6: What are the environmental operating conditions for the 170PNT16020?
A6: It operates in temperatures from 0 to 60 °C and humidity up to 95% without condensation.
Q7: How is the unit powered?
A7: It receives power from the I/O base.
Q8: What type of connector is used for network communication?
A8: It uses two SUB-D 9 connectors — one for the main and one for the redundant Modbus Plus network.
