Technical Specifications
| Parameter | Details |
|---|---|
| Product Range | Modicon Momentum Automation Platform |

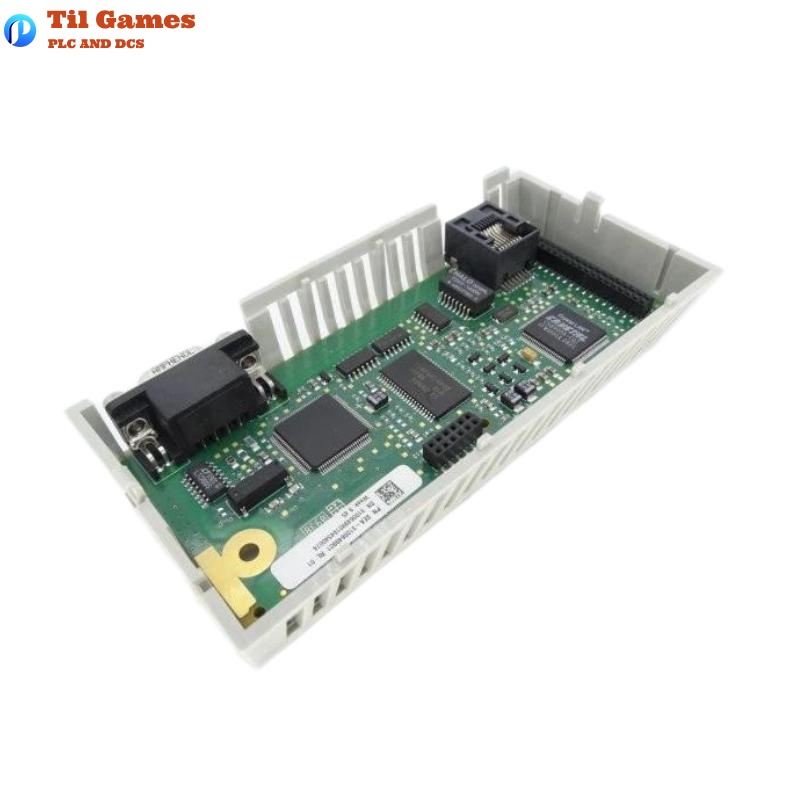

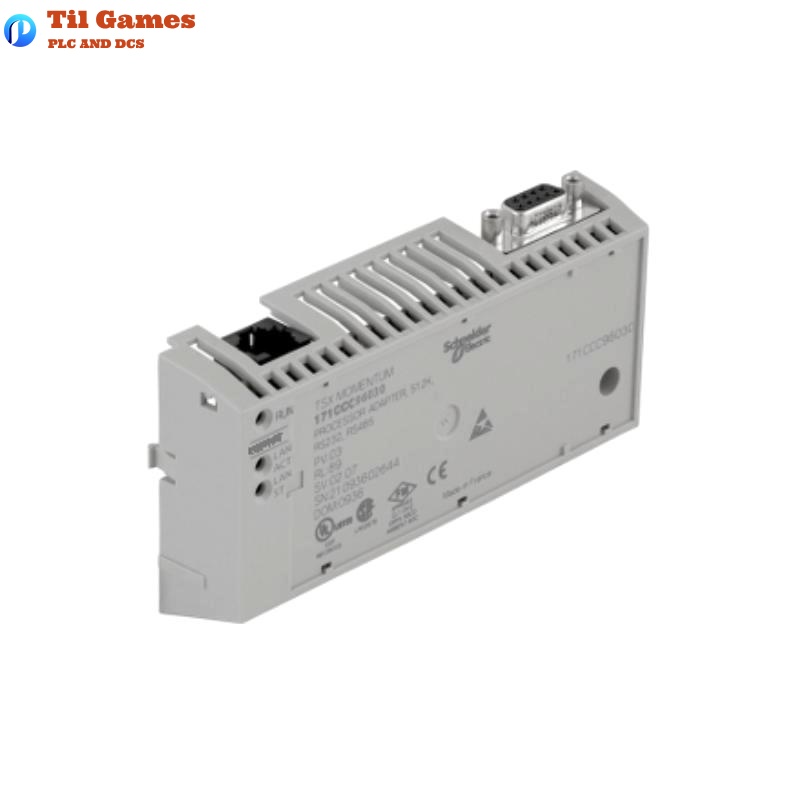

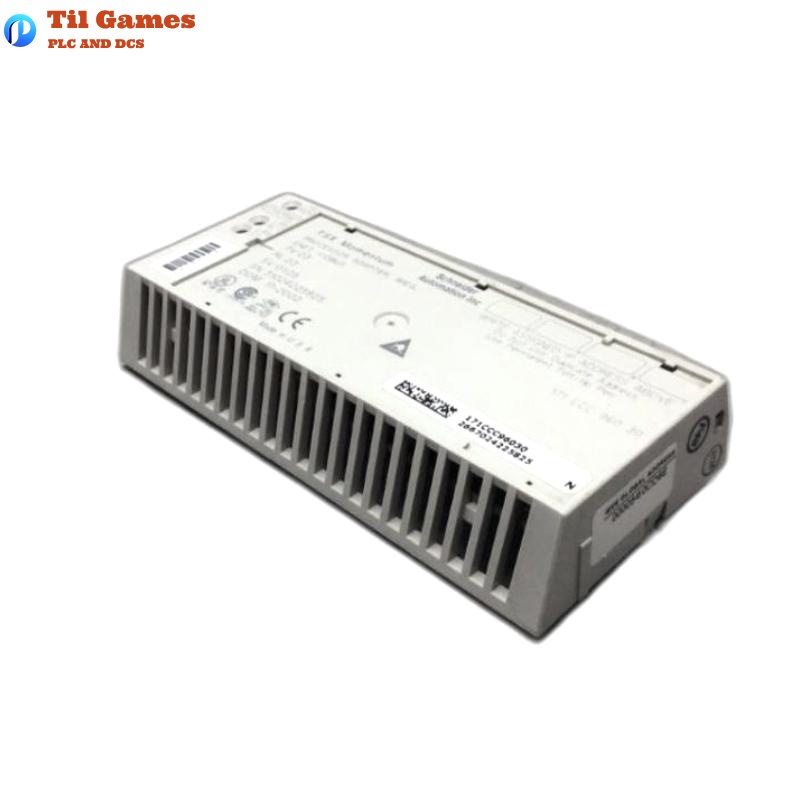

| Product Type | M1/M1E Processor Adaptor |
| Processor Name | X86 based (INTEL or AMD) IEC Executive |
| Clock Frequency | 50 MHz |
| Rated Supply Voltage [Us] | 5.0 V DC ±5% |
| Power Supply | Supplied by Momentum I/O base |
| Communication Protocol | Ethernet |
| Number of Ports | 1 × I/O Bus, 1 × Ethernet |
| Communication Features | I/O Scanning, Modbus TCP Messaging, Ethernet Services |
| Supported Software | Concept V2.6, Modsoft ≥ V2.5, ProWORX NxT V2.0, ProWORX 32 |
| Transparent Ready | Yes |
| Program Memory (LL984) | 18 kB |
| Program Memory (IEC) | 200 kB |
| Data Memory | 24 kB |
| Flash Memory | 1 MB |
| RAM | 544 kB |
| Discrete I/O Processing | 8192 Inputs / 8192 Outputs |
| Register I/O Capacity | 26048 Inputs / 26048 Outputs |
| I/O Capacity Limit | 8192 bits max |
| I/O Words/Drop (Concept) | 128 |
| I/O Words/Drop (ProWORX) | 80 |
| Instruction Execution Time | 1 ms per 1K instruction |
| Word Length | 16-bit |
| Supported Features | Web Services, Data Editor, Rack Viewer, Web Page Loader |
| Material | Lexan |
| Dimensions | 54 × 178 × 258 mm |
| Net Weight | 0.042 kg |
| Protective Treatment | TC |
| Operating Temperature | 0…60°C (32…140°F) |
| Storage Temperature | -40…85°C (-40…185°F) |
| Relative Humidity | 5–96%, non-condensing |
| Operating Altitude | ≤ 2000 m |
| Shock Resistance | ≤ 15 g peak, 11 ms half sine wave |
| Vibration Resistance | 1 g, 0.75 mm double amplitude |
| Marking | CE |
| Certifications | UL, cUL, FM Class 1 Division 2, NEMA Type 250 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What programming software is compatible with 171CCC96030?
A1: It supports Concept V2.6, Modsoft V2.5 or higher, ProWORX NxT V2.0, and ProWORX 32.
Q2: What communication protocols are supported?
A2: It supports Ethernet, including Modbus TCP and I/O Scanning services.
Q3: What is the program memory size?
A3: 18 kB for LL984 and 200 kB for IEC applications.
Q4: Does it support web-based functions?
A4: Yes, it includes web services, data editor, and web page loader tools.
Q5: What is the maximum number of discrete I/Os it can handle?
A5: Up to 8192 inputs and 8192 outputs.
Q6: How is the unit powered?
A6: Power is supplied via the Momentum I/O base at 5.0 V DC ±5%.
Q7: What material is the product made of?
A7: It is made of Lexan plastic, known for its strength and heat resistance.
Q8: What certifications does the product hold?
A8: It is certified by UL, cUL, FM Class 1 Division 2, and meets NEMA Type 250 standards.
