Technical Specifications
| Parameter | Value |
|---|---|

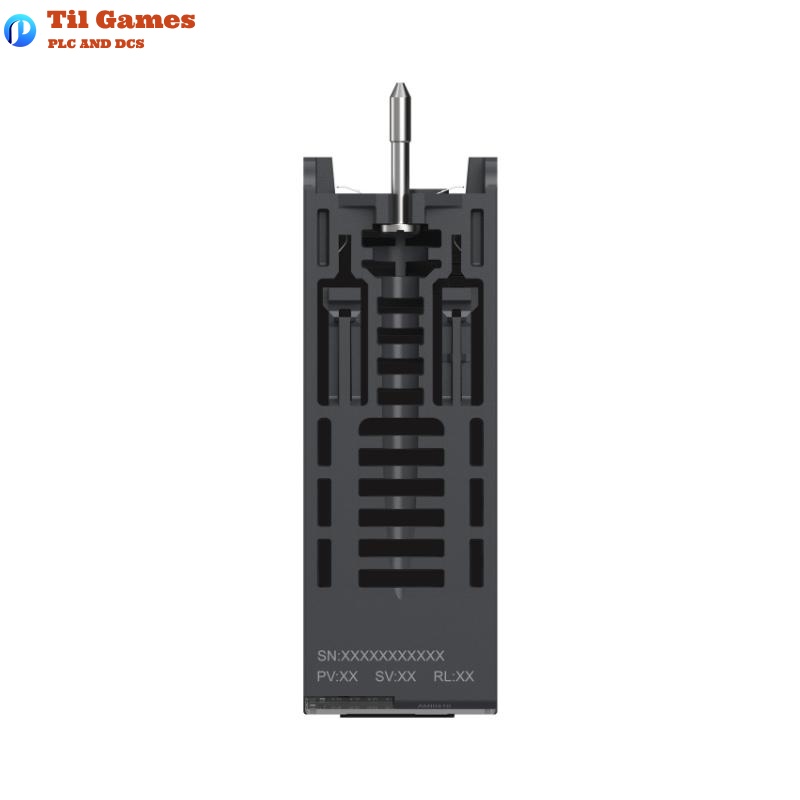

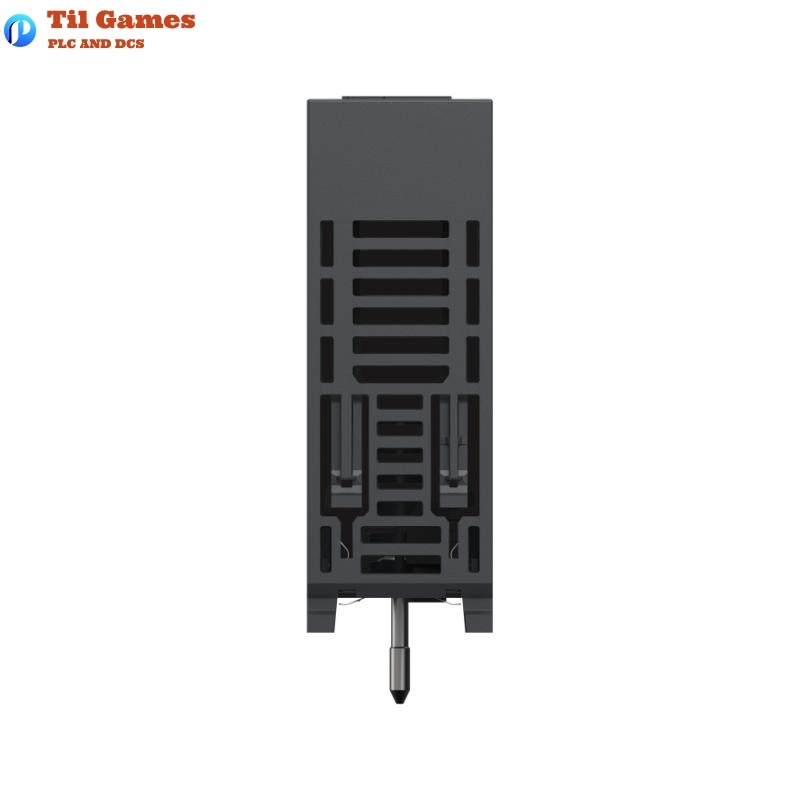

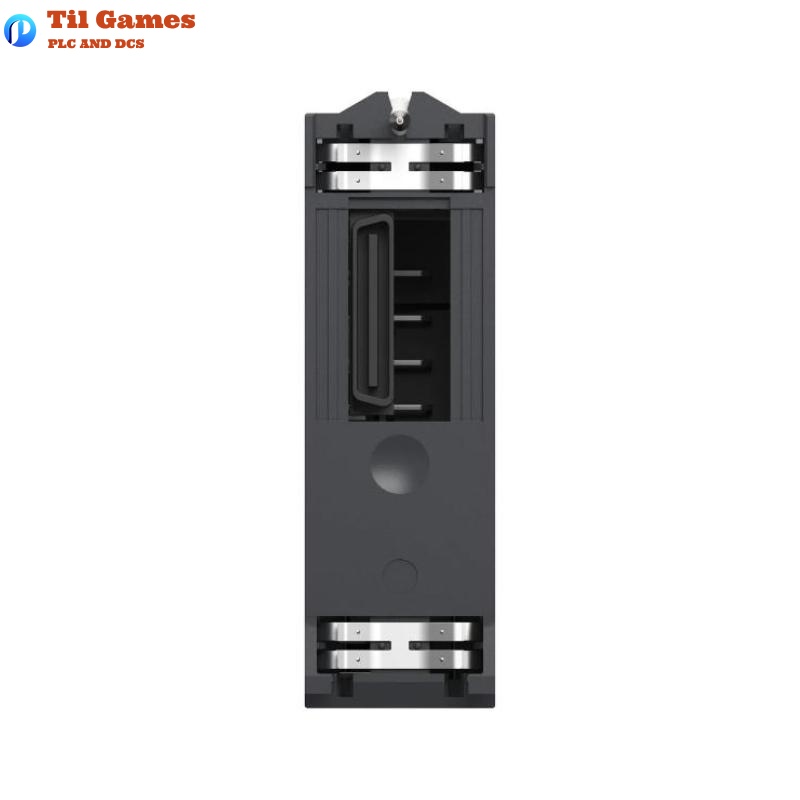

| Product Type | High Level Analog Input Module |
| Analog Inputs | 4 isolated channels |
| Input Types | Voltage: ±10 V, ±5 V, 0…10 V, 0…5 V, 1…5 V |
| Current: ±20 mA, 0…20 mA, 4…20 mA | |
| Analog/Digital Conversion | 24 bits |
| Input Resolution | 16 bits |
| Input Impedance | 10 MΩ (voltage), 250 Ω + 3.6~50 Ω (current) |
| Input Overload Protection | ±30 V (voltage), ±90 mA (current) |
| Accuracy @ 25°C | Voltage: ≤0.075% FS, Current: ≤0.15% FS |
| Accuracy @ 0–60°C | Voltage: ≤0.1% FS, Current: ≤0.3% FS |
| Temperature Drift | Voltage: 15 ppm/°C, Current: 30 ppm/°C |
| Crosstalk Attenuation | ≥80 dB |
| Common Mode Rejection | ≥90 dB |
| Conversion Value | -32768 to +32767 |
| Maximum Measurement Range | Voltage: ±11.4 V, Current: 0–30 mA |
| Isolation Voltage | 300 V DC (between channels), 1400 V DC (channel/ground/bus) |
| Recalibration | Internal |
| Filter Type | First-order digital filter |
| Fast Read Cycle Time | 1 ms + 1 ms × number of channels used |
| Nominal Read Cycle Time | 5 ms (4 channels) |
| MTBF | 1,200,000 hours |
| Power Supply | 24 VDC and 3.3 VDC |
| Power Consumption | 0.82 W typ / 1.30 W max (24 VDC), 0.32 W typ / 0.48 W max (3.3 VDC) |
| Current Consumption | 150 mA (3.3 VDC), 45 mA (24 VDC) |
| Operating Temperature | 0…60°C (32…140°F) |
| Storage Temperature | -40…85°C (-40…185°F) |
| Relative Humidity | 5…95% (non-condensing up to 55°C) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| IP Rating | IP20 |
| Electrical Connection | 20-way removable terminal block |
| Status Indicators | RUN (Green), ERR (Red), I/O (Red), Channel Diagnosis LEDs |
| Dimensions (W x H x D) | 33 × 104 × 93 mm |
| Weight | 0.15 kg |
| Certifications | CE, CSA, UL, EAC, RCM, Merchant Navy |
| Compliance Standards | EN/IEC 61010-2-201, EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the BMXAMI0410 module support?
A1: It supports both voltage and current signals, including ±10 V, 0–10 V, 4–20 mA, and others.
Q2: Are the input channels isolated from each other?
A2: Yes, all four input channels are individually isolated.
Q3: What is the resolution of the analog inputs?
A3: The module provides a 16-bit resolution with 24-bit internal A/D conversion.
Q4: How accurate is the module under typical conditions?
A4: At 25°C, voltage accuracy is ±0.075% of full scale, and current accuracy is ±0.15% of full scale.
Q5: What is the isolation voltage of this module?
A5: The module provides 300 VDC isolation between channels and 1400 VDC isolation to ground and bus.
Q6: What kind of terminal connection does it use?
A6: It uses a 20-way removable terminal block for easy wiring.
Q7: How many slots does it occupy in the rack?
A7: The module occupies a single slot in the Modicon X80 rack.
Q8: What is the supported operating temperature range?
A8: It operates in ambient temperatures from 0°C to 60°C.
