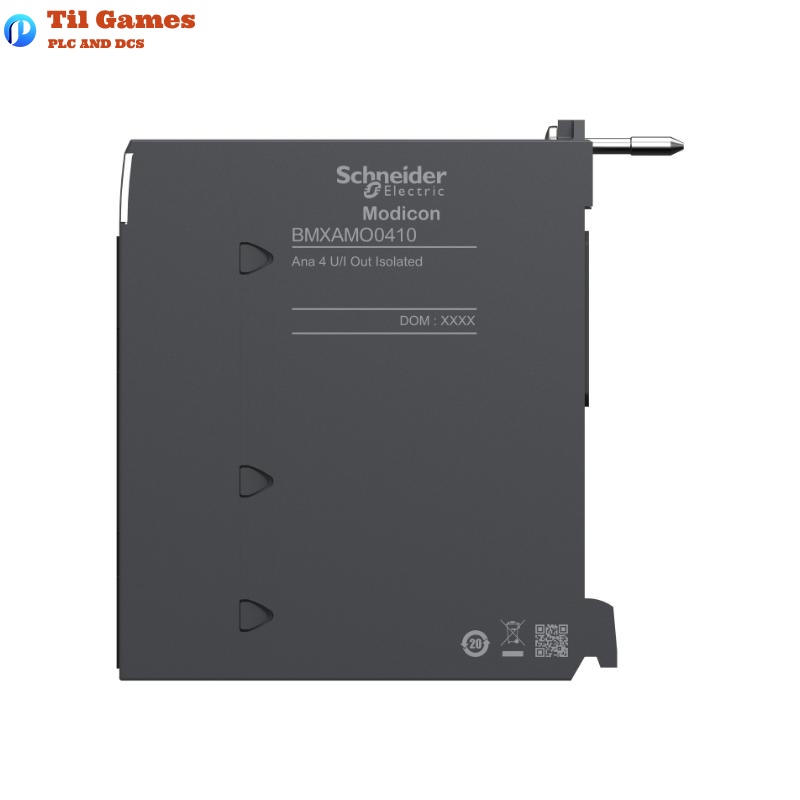

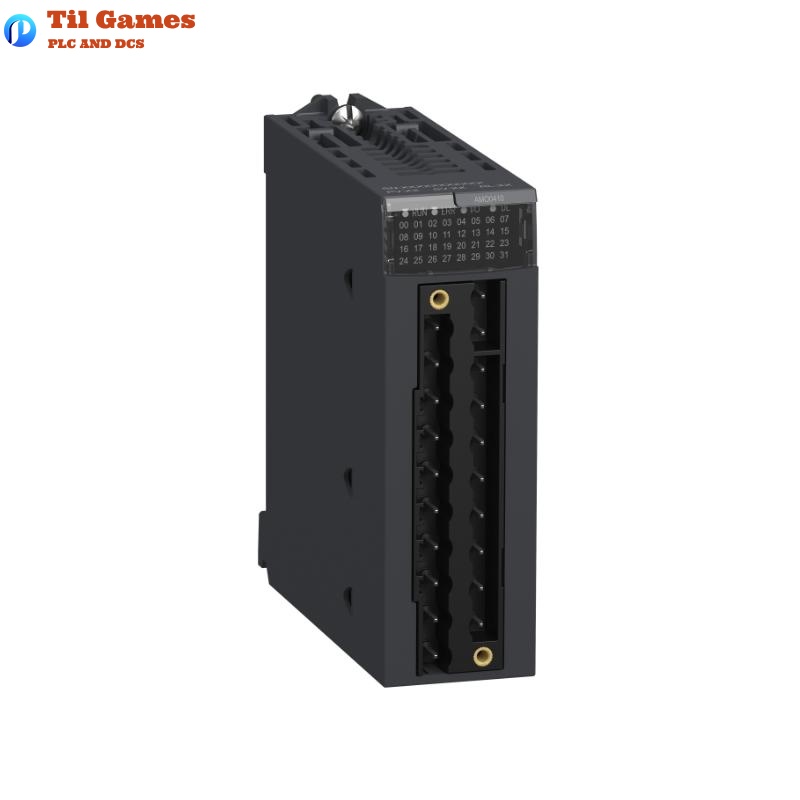

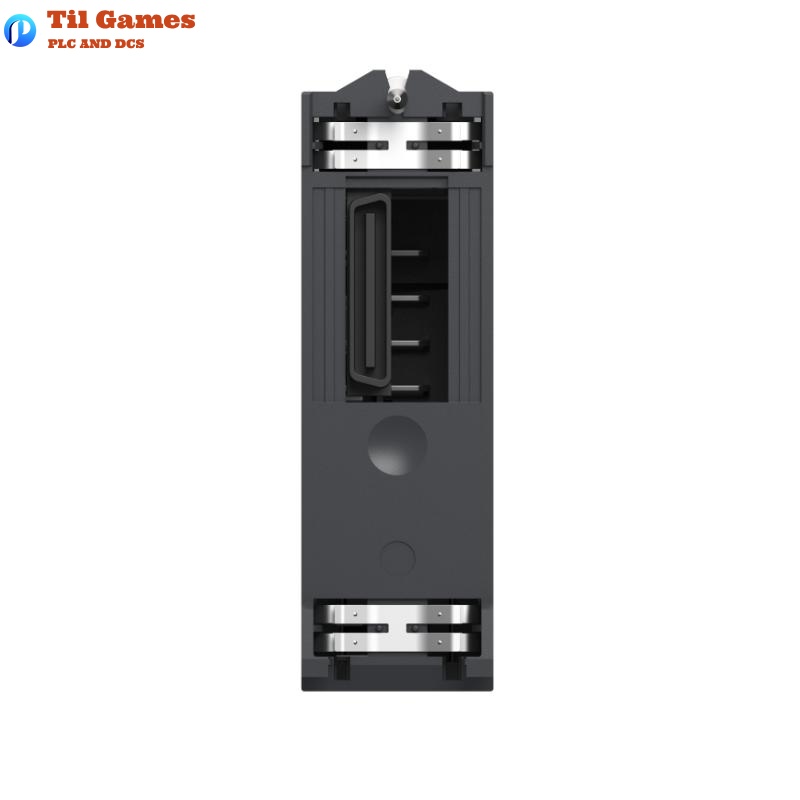

Technical Specifications

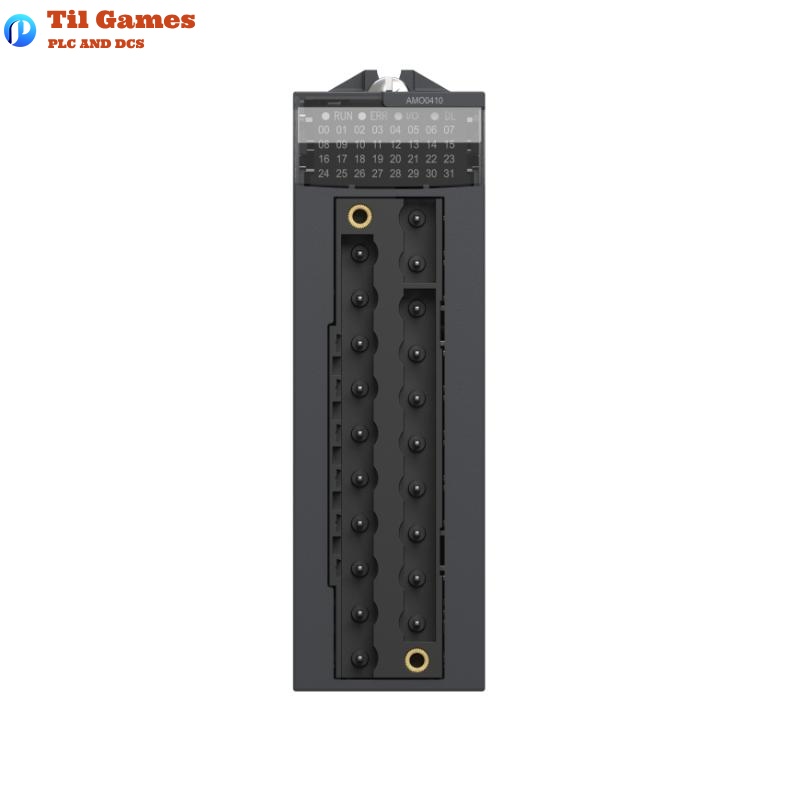

| Parameter | Value |
|---|---|
| Product Range | Modicon X80 |
| Product Type | Analog Output Module (Isolated High Level) |
| Analog Output Channels | 4 channels |
| Output Signal Types | Current: 0…20 mA, 4…20 mA; Voltage: ±10 V |
| Output Resolution | 15 bits + sign |
| Power Supply | Internal via rack |
| Electrical Connection | 20-way connector |
| Channel Isolation | Yes; 1400 VDC (channel-ground, channel-bus), 750 VDC (channel-channel) |
| Measurement Error | ≤ 0.2% full scale (0…60°C); 0.1% full scale (25°C) |
| Temperature Drift | 45 ppm/°C (all output types) |
| Common Mode Rejection | 100 dB |
| Minimum Crosstalk Atten. | 80 dB |
| Load Impedance | ±10 V ≥ 1000 Ω; 0/4…20 mA ≤ 500 Ω |
| Fault Detection | Open circuit (0/4…20 mA), Short circuit (±10 V) |
| Conversion Time | ≤ 1 ms |
| Max Output Range | 0…21 mA (current), ±10.5 V (voltage) |
| Fallback Mode | Configurable / Predefined |
| MTBF | 1,000,000 hours |
| Status LEDs | RUN (green), Per-channel (green), ERR (red), I/O (red) |
| Power Consumption | 3 W / 3.6 W (24 V DC); 0.45 W / 0.51 W (3.3 V DC) |
| Current Consumption | 150 mA (3.3 V DC); 140 mA (24 V DC) |
| Storage Temperature | -40…85°C |
| Operating Temperature | 0…60°C |
| Relative Humidity | 5…95% (non-condensing, up to 55°C) |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Altitude | 0…2000 m (normal), 2000–5000 m (with derating) |
| Protection Rating | IP20 |
| Certifications | CE, RCM, CSA, EAC, UL, Merchant Navy |
| Compliance Standards | EN/IEC 61010-2-201, EN/IEC 61131-2, EN 61000-6-2, EN 61000-6-4 |
| Dimensions (W × H × D) | 93 × 33 × 104 mm |
| Weight | 0.15 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What output signal types are supported by BMXAMO0410?
A1: It supports current outputs of 0–20 mA and 4–20 mA, and voltage output of ±10 V.
Q2: Are the output channels electrically isolated?
A2: Yes, isolation exists between channels, ground, and the communication bus.
Q3: What is the output resolution of this module?
A3: It provides 15-bit resolution plus a sign bit, ensuring high output precision.
Q4: Does the module have LED indicators?
A4: Yes, it includes LEDs for RUN status, channel diagnostics, error, and I/O.
Q5: What is the operating temperature range of the module?
A5: It operates from 0°C to 60°C and can be stored between -40°C and 85°C.
Q6: What are the physical dimensions of the module?
A6: The dimensions are 93 mm × 33 mm × 104 mm. Allow clearance during installation.
Q7: What is the MTBF of the BMXAMO0410 module?
A7: The MTBF is 1,000,000 hours, making it suitable for reliable long-term operation.
Q8: What certifications and standards does this module comply with?
A8: It complies with CE, UL, CSA, RCM, EAC standards and conforms to IEC/EN directives.
