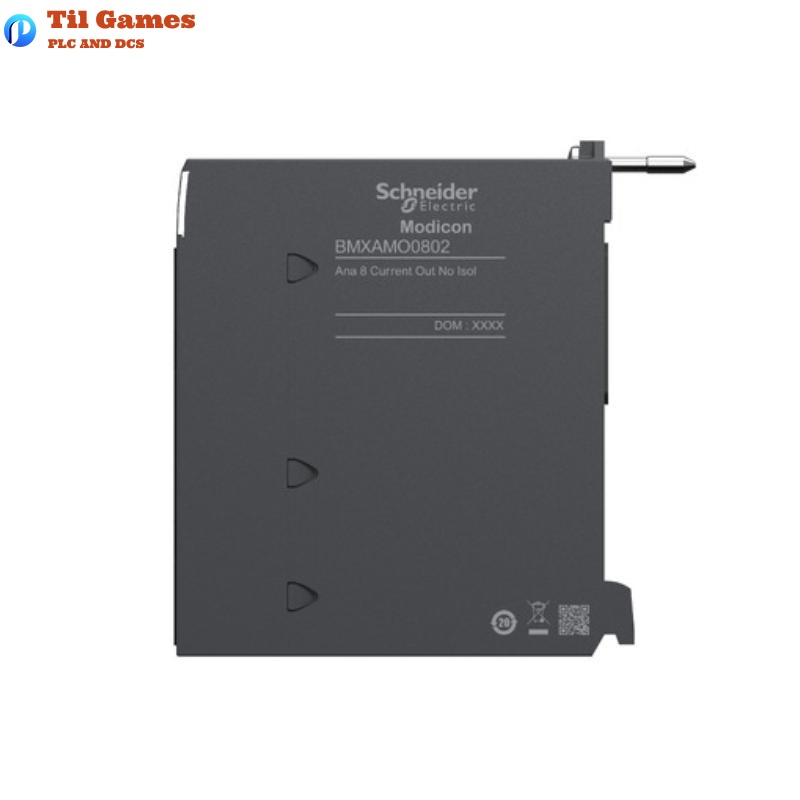

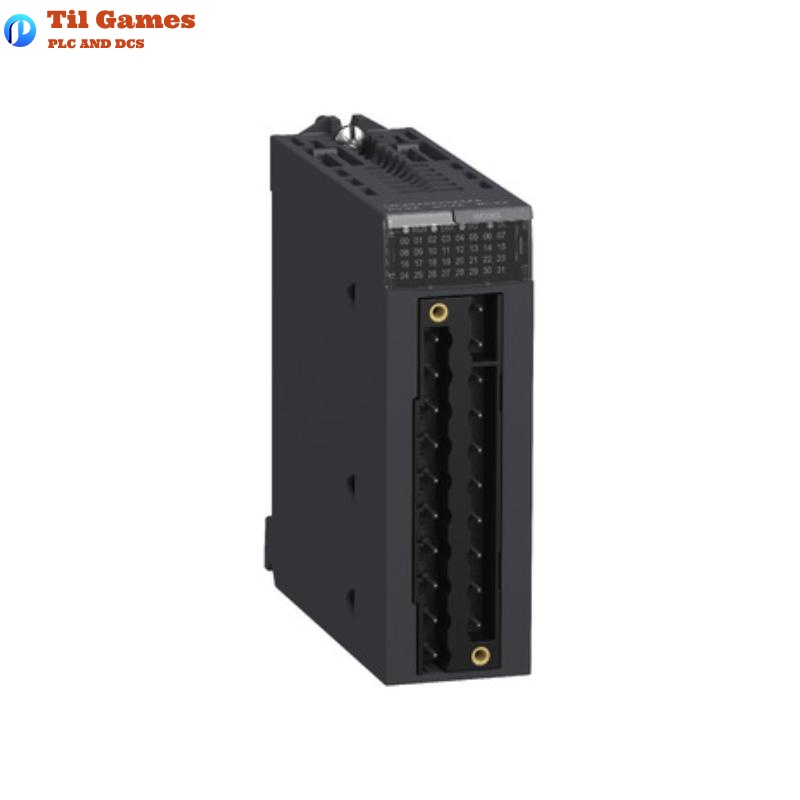

Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Analog Output Module |
| Product Range | Modicon X80 |
| Module Function | High-level analog output, non-isolated |
| Number of Outputs | 8 |
| Output Type | Current: 0…20 mA, 4…20 mA |
| Resolution | 16 bits |
| Measurement Error | ≤ 0.25% FS (0–60 °C), 0.1% FS (25 °C) |
| Conversion Time | ≤ 4 ms |
| Output Load | ≤ 350 Ohm (0…20 mA, 4…20 mA) |
| Detection | Open circuit (4–20 mA), short circuit (0–20 mA) |
| Crosstalk Attenuation | ≥ 80 dB |
| Common Mode Rejection | ≥ 80 dB |
| Isolation Voltage | 1400 V DC (channel-to-ground, channel-to-bus) |
| Fallback Mode | Configurable / Predefined |
| Power Supply | Internal via rack |
| Power Consumption (Typical) | 3.6 W @ 24 V DC; 0.35 W @ 3.3 V DC |
| Power Consumption (Maximum) | 3.9 W @ 24 V DC; 0.48 W @ 3.3 V DC |
| Current Consumption | 150 mA @ 3.3 V DC; 135 mA @ 24 V DC |
| LED Indicators | RUN (Green), ERR (Red), I/O (Red), 1 per channel |
| MTBF | 1,500,000 hours |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% @ 55 °C, non-condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Operating Altitude | 0–2000 m; up to 5000 m with derating |
| Electrical Connection | 20-way connector |
| Degree of Protection | IP20 |
| Certifications | CE, UL, CSA, EAC, RCM, Merchant Navy |
| Compliance | EN/IEC 61010-2-201, EN/IEC 61131-2, UL, CSA |
| Dimensions | 93 x 33 x 104 mm |
| Net Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the output resolution of the BMXAMO0802 module?
A1: The module provides 16-bit resolution for accurate analog signal output.
Q2: Does the BMXAMO0802 offer channel-to-channel isolation?
A2: No, this module is non-isolated between channels.
Q3: What type of analog outputs does this module support?
A3: It supports current outputs in the range of 0…20 mA and 4…20 mA.
Q4: What is the power supply requirement for this module?
A4: It operates using internal power supplied via the rack.
Q5: What is the conversion time for analog output signals?
A5: The conversion time is less than or equal to 4 milliseconds.
Q6: Can the module detect open or short circuit conditions?
A6: Yes, it can detect open circuit in 4–20 mA mode and short circuit in 0–20 mA mode.
Q7: What standards does this module comply with?
A7: It complies with EN/IEC 61010-2-201, EN/IEC 61131-2, UL, and CSA.
Q8: Is this module suitable for harsh environments?
A8: It supports -40 to +85 °C storage, up to 95% humidity (non-condensing), and is vibration/shock resistant.
