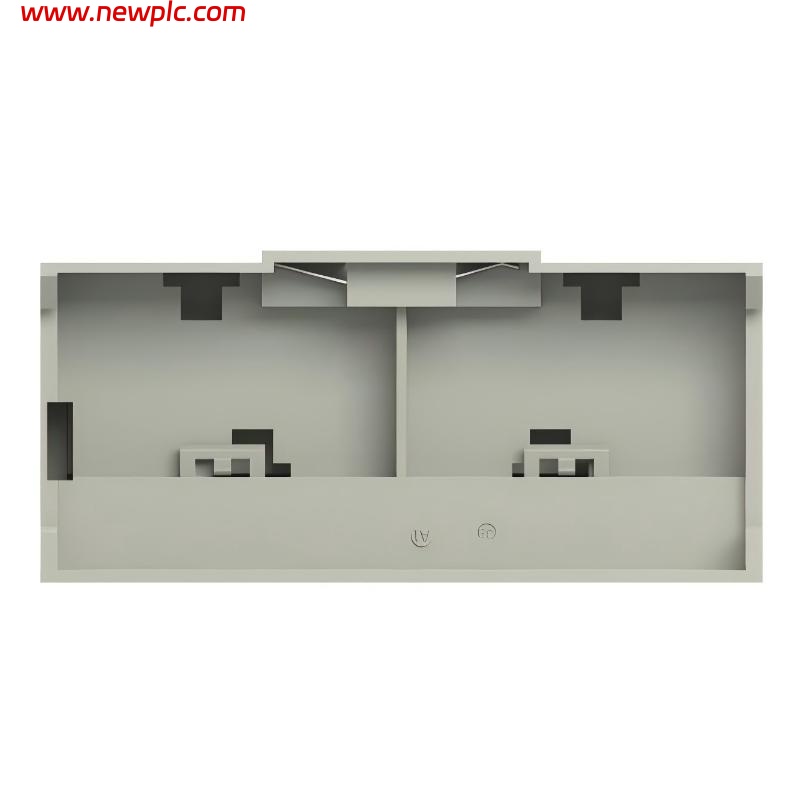

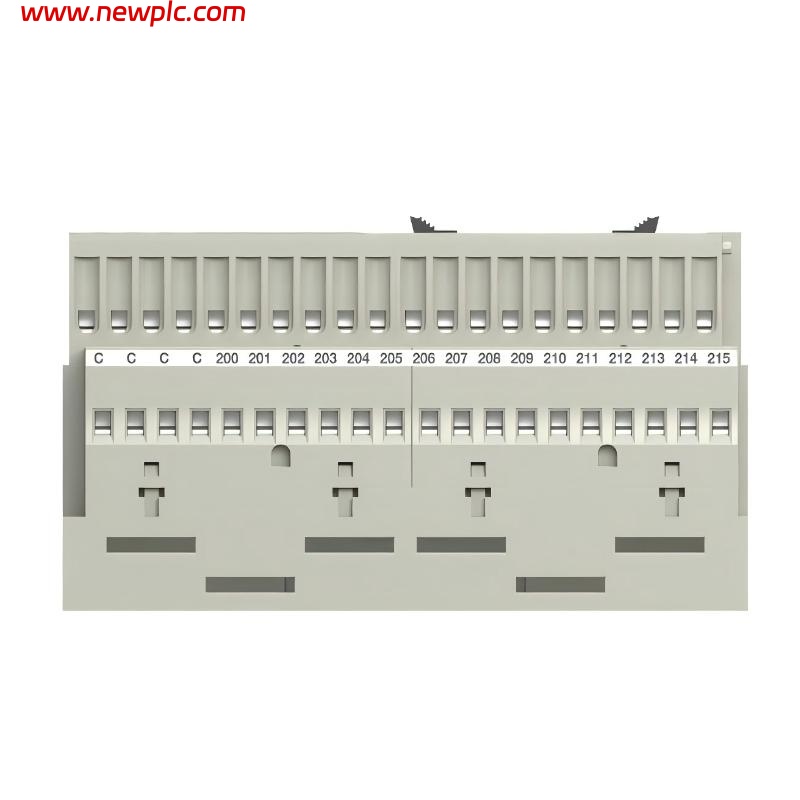

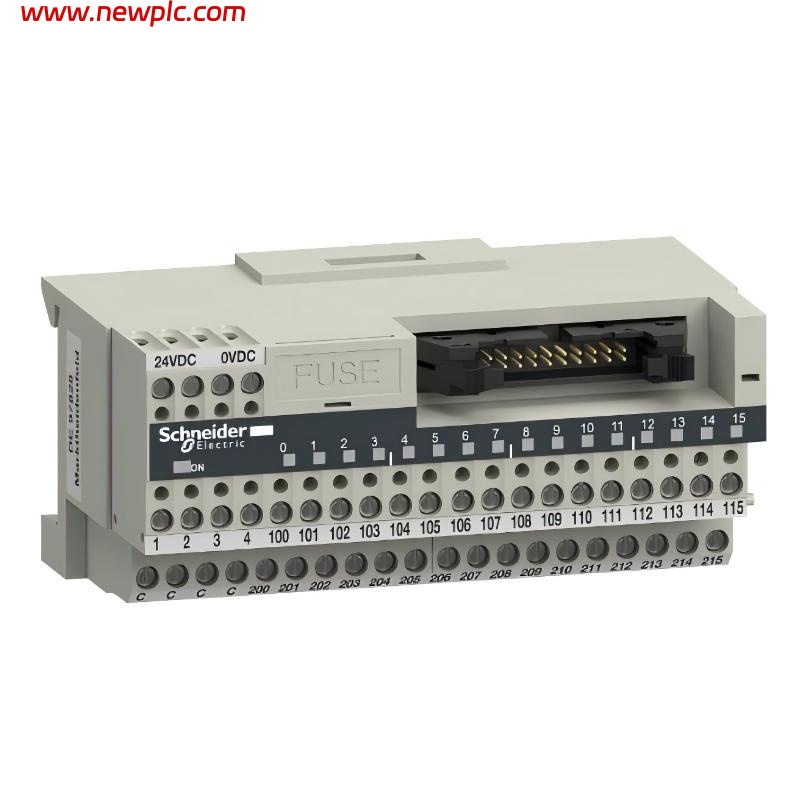

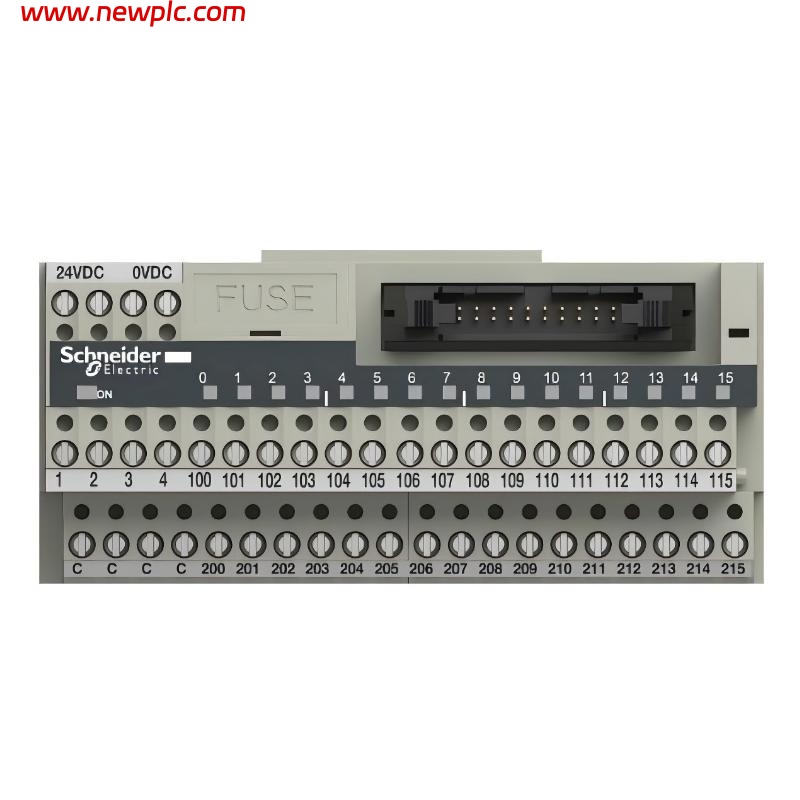

Schneider ABE7H16C21 Passive Connection Sub Base

FAQ

Q1: What is the main purpose of the ABE7H16C21 passive sub-base?
A1: It serves as a wiring interface, allowing field devices to connect cleanly to Schneider ABE7 modules.

Q2: Does this sub-base include any active electronic components?
A2: No, it is a passive base with terminals only and performs no signal conditioning.

Q3: What type of terminal connection does it use?
A3: It uses screw-type terminals suitable for secure industrial wiring.

Q4: Is the sub-base compatible with relay or solid-state modules?
A4: Yes, it accepts ABE7 plug-in interface modules regardless of relay or electronic type.

Q5: Can it be installed on any standard DIN rail?
A5: It is designed for standard industrial DIN rails commonly used in control cabinets.

Q6: Does the sub-base support mixed wiring for different field devices?
A6: Yes, each channel is independent and can be wired to various field signals as needed.

Q7: Is any configuration required after installation?
A7: No configuration is needed; it functions as a passive wiring interface immediately upon installation.

Q8: Can this sub-base help reduce wiring complexity in large panels?
A8: Yes, it centralizes connections and simplifies routing between field devices and automation hardware.
