Technical Specifications
| Parameter | Description |
|---|---|

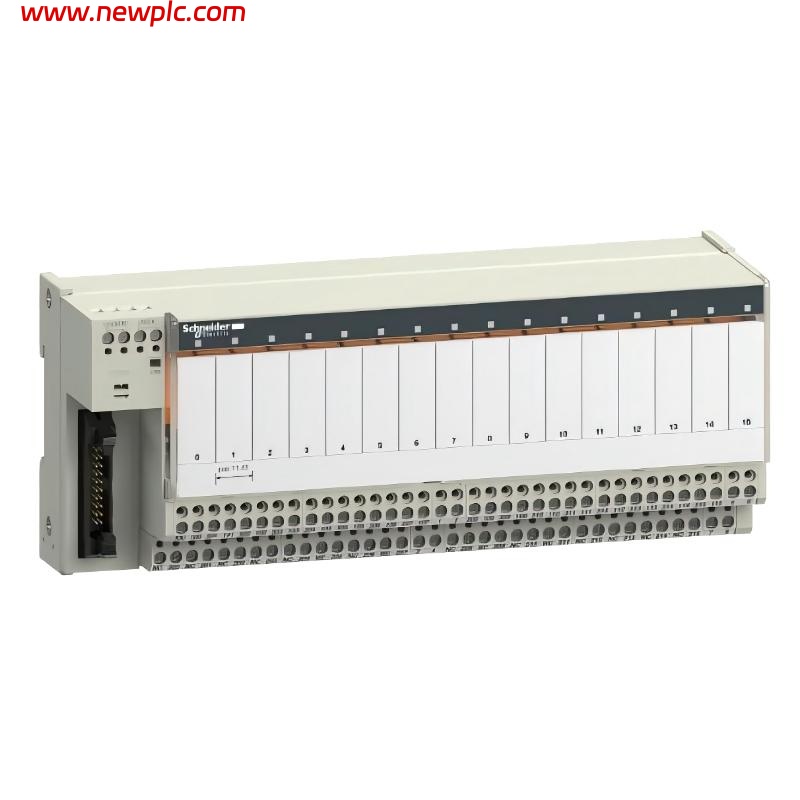

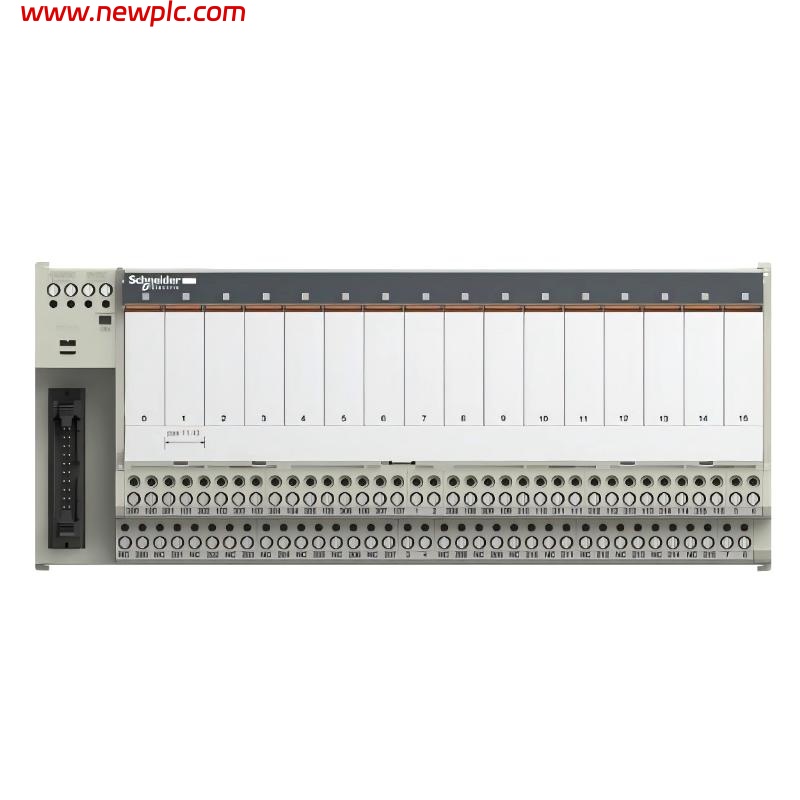

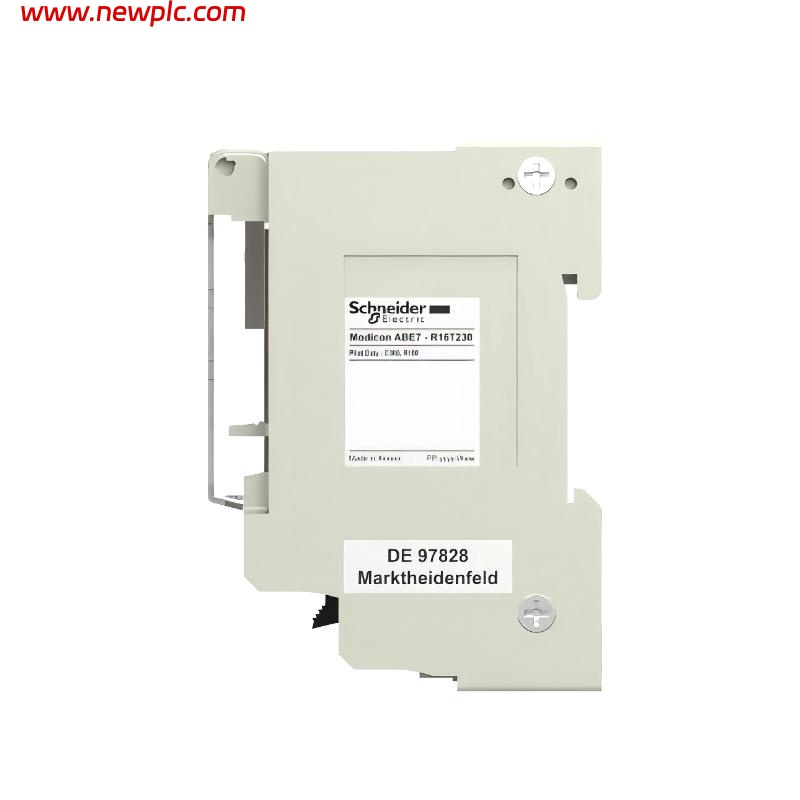

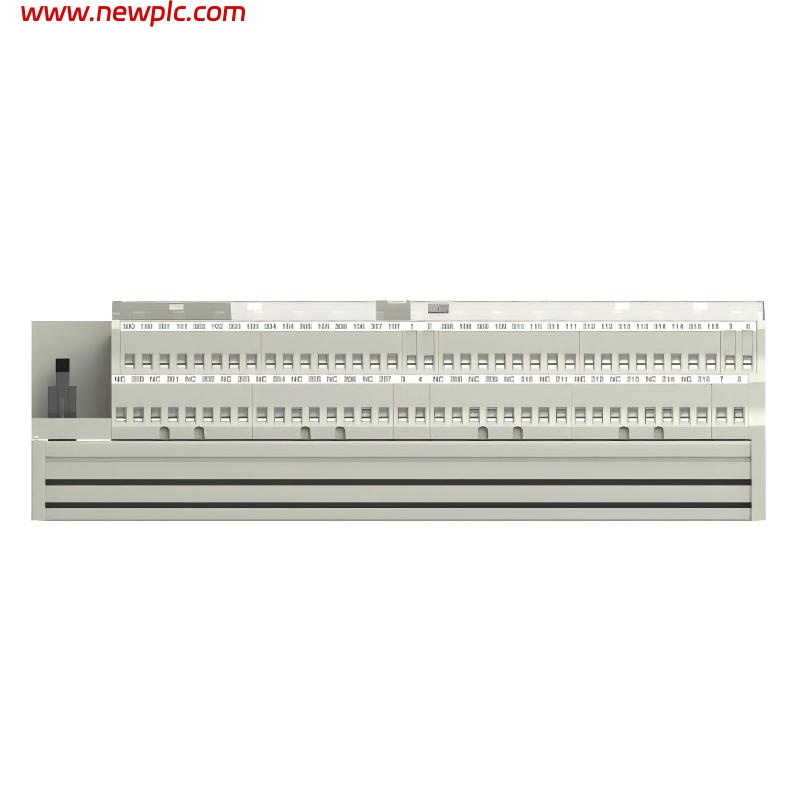

| Product Type | Sub-Base with Plug-In Electromechanical Relay |
| Model | ABE7R16T230 |
| Relay Type | Plug-in electromechanical relay interface |
| Number of Channels | 16-channel relay interface sub-base |
| Rated Control Voltage | 230 V AC (relay coil voltage for this model series) |
| Contact Type | SPDT relay contacts (plug-in type) |
| Output Function | Discrete signal switching for automation and control |
| Terminal Type | Screw-clamp terminals |
| Indicators | LED indicators for each relay position |
| Output Isolation | Electrically isolated outputs for stable operation |
| Mounting Method | DIN rail mounting |
| Application | Industrial control panels, PLC interfacing, signal distribution |
| Dimensions | 221 × 73 × 88 mm |
| Weight | 0.775 kg |
FAQ
FAQ
Q1: What is the function of the ABE7R16T230 sub-base?
A1: It provides a relay interface using plug-in electromechanical relays, enabling discrete signal switching in automation systems.
Q2: Does this model use plug-in relays for easy maintenance?
A2: Yes, relays can be plugged in and replaced quickly without rewiring.
Q3: Are LED indicators available for each relay channel?
A3: Yes, each channel includes an LED to display relay operation status.
Q4: What type of terminals are provided on this sub-base?
A4: Screw-clamp terminals are used for secure and reliable wiring.
Q5: Is this module compatible with DIN rail installation?
A5: Yes, it mounts directly onto standard DIN rails.
Q6: Can the ABE7R16T230 be connected to PLC output modules?
A6: Yes, it is designed for signal interfacing with PLCs and other automation devices.
Q7: What relay contact configuration does this sub-base support?
A7: It supports SPDT relay contacts.
Q8: Does this device provide electrical isolation for each relay channel?
A8: Yes, each channel is electrically isolated to improve system safety and stability.
