Technical Specifications
| Parameter | Description |
|---|---|

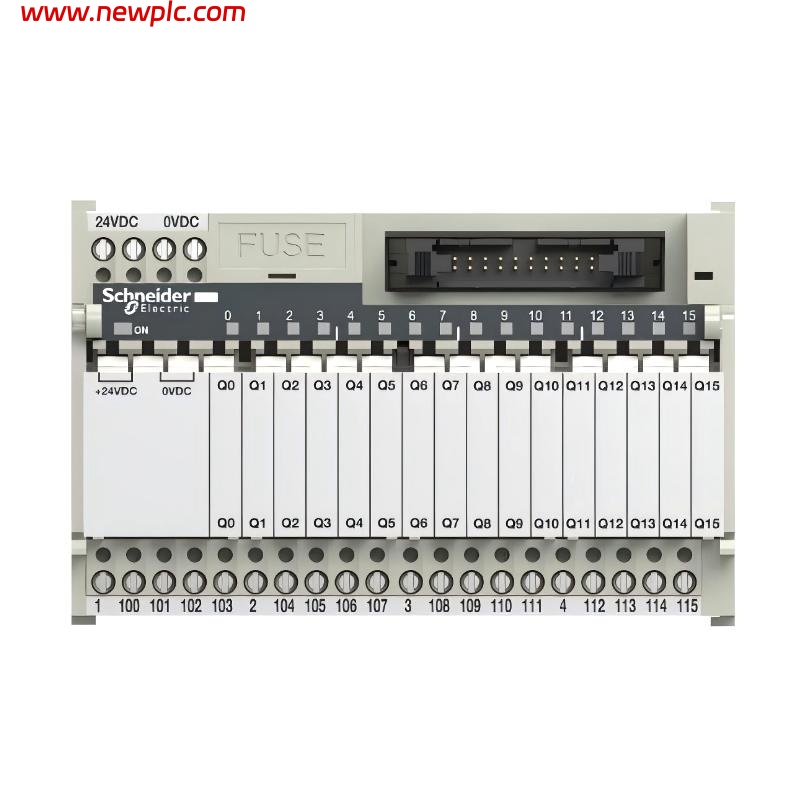

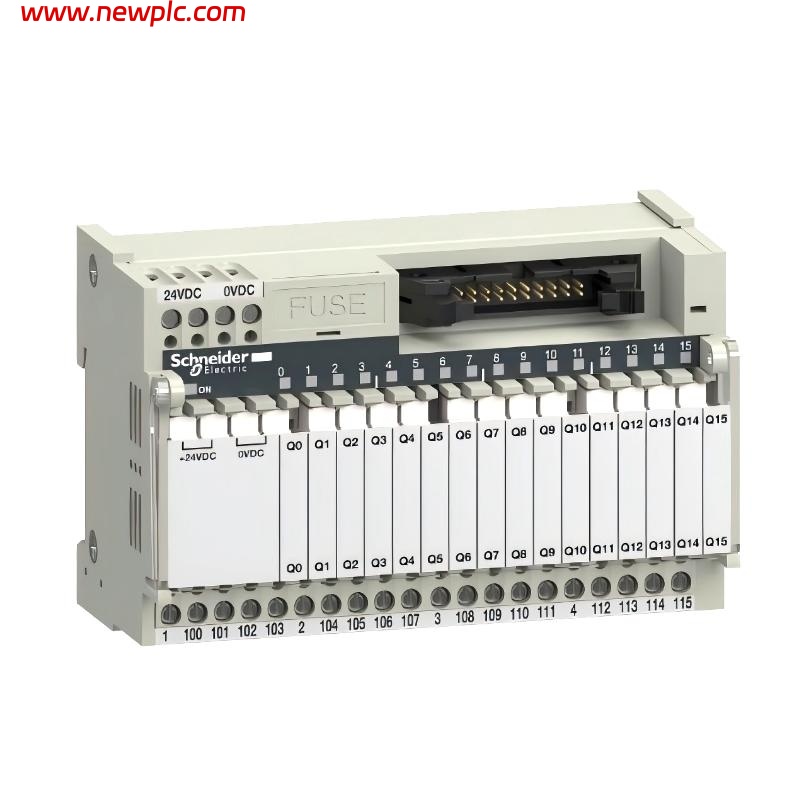

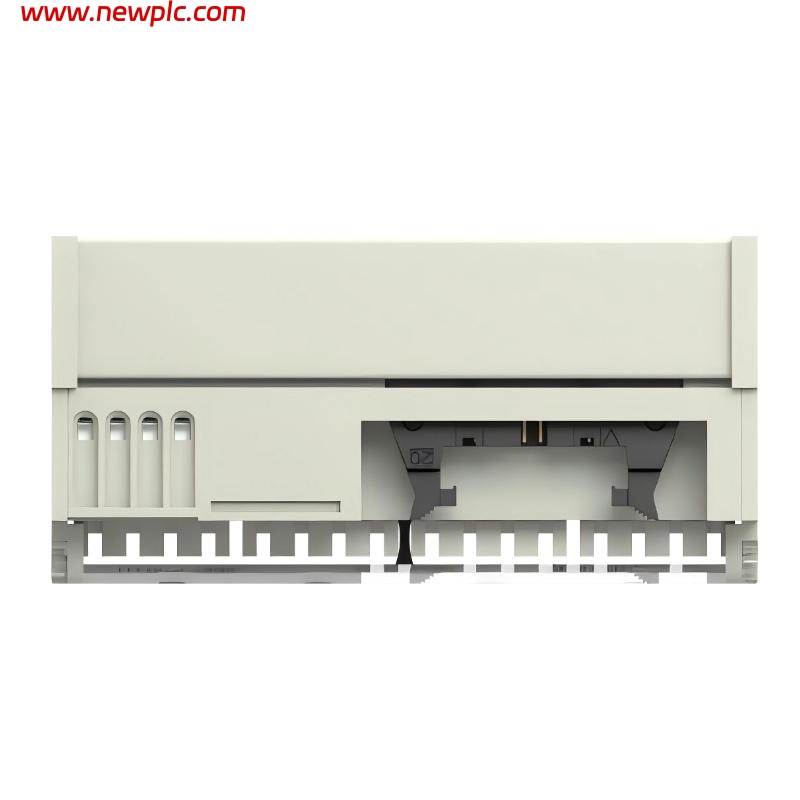

| Product Type | Sub-Base with Plug-In Electromechanical Relay |
| Model | ABE7R16T111 |
| Relay Type | Plug-in electromechanical relay interface |
| Number of Channels | 16-channel relay interface sub-base |
| Contact Type | SPDT relay contacts (plug-in type) |
| Rated Control Voltage | 24 V DC (typical coil voltage for compatible relays) |
| Output Function | Discrete signal switching for automation I/O |
| Terminal Type | Screw-clamp terminals |
| Indicators | LED indicators for each relay position |
| Output Isolation | Electrically isolated channels for reliable operation |
| Mounting Method | DIN rail mounting |
| Application | PLC I/O distribution, signal interfacing, panel wiring |
| Dimensions | 110 × 63 × 89 mm |
| Weight | 0.6 kg |
FAQ
FAQ
Q1: What is the main function of the ABE7R16T111 sub-base?
A1: It provides a relay interface with plug-in relays for discrete signal switching in control and automation systems.
Q2: Are the relays on this model removable?
A2: Yes, it uses plug-in electromechanical relays, allowing easy replacement and maintenance.
Q3: Does each relay channel include an LED indicator?
A3: Yes, each channel has its own LED for monitoring relay activation.
Q4: What type of terminals does this sub-base use?
A4: It uses screw-clamp terminals designed for secure wiring.
Q5: Is the module suitable for DIN rail installation?
A5: Yes, it is designed to mount directly onto standard DIN rails.
Q6: Can this sub-base be connected to PLC output modules?
A6: Yes, it is intended for signal interfacing with PLCs and other control devices.
Q7: What relay contact configuration is supported?
A7: It supports SPDT plug-in relay contacts.
Q8: Does the module provide channel-to-channel electrical isolation?
A8: Yes, each relay channel is electrically isolated for safe and stable operation.
