Technical Specifications
| Parameter | Description |
|---|---|

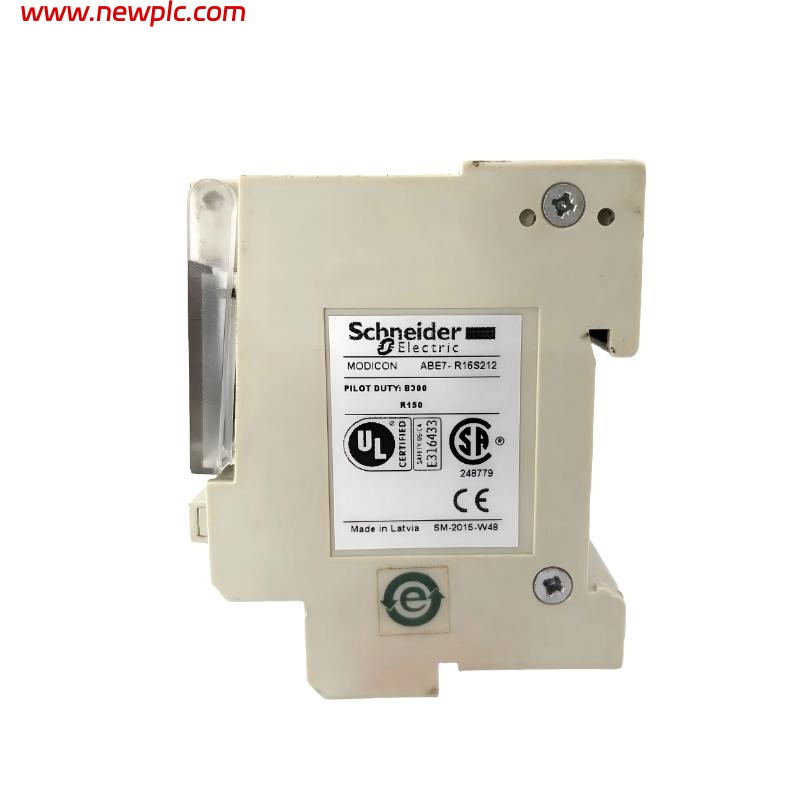

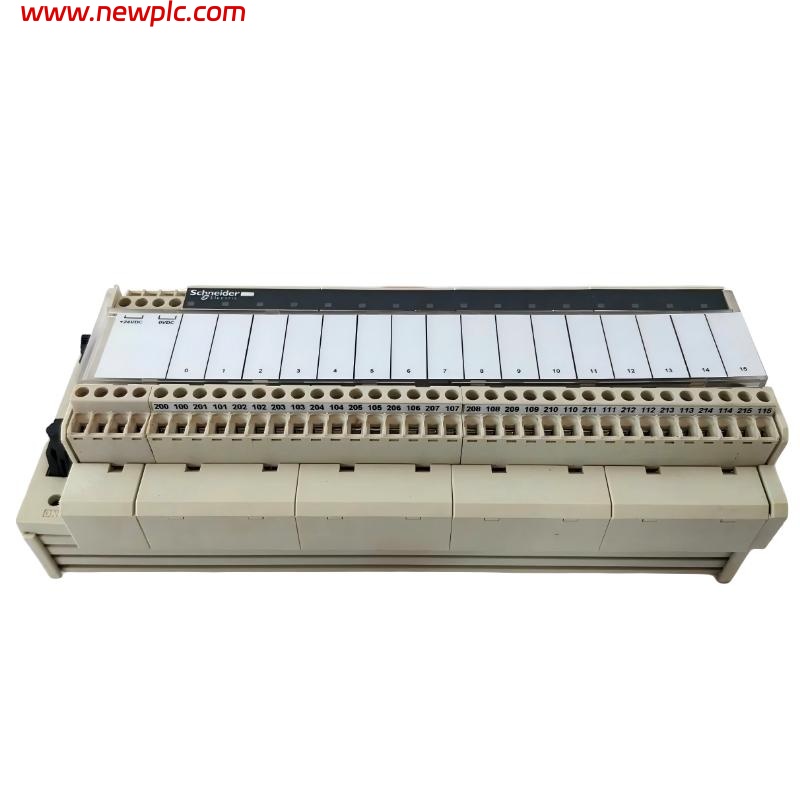

| Product Type | Electromechanical Relay Sub Base |
| Model | ABE7R16S212 |
| Relay Type | Soldered relay interface base for industrial automation |
| Number of Channels | 16-channel relay interface |
| Contact Type | SPDT electromechanical relay contacts |
| Rated Control Voltage | 24 V DC (typical for compatible relay coils) |
| Output Switching | Designed for discrete signal switching in control systems |
| Terminal Type | Screw-clamp terminals |
| Indicators | Individual LED indicators for each relay channel |
| Mounting Method | DIN rail mounting |
| Compatibility | Supports Schneider interface and distributed I/O architectures |
| Electrical Isolation | Reinforced insulation for reliable channel separation |
| Application | PLC signal expansion, machine automation, wiring interface |
| Dimensions | 206 × 77 × 71 mm |
| Weight | 0.4 kg |
FAQ
FAQ
Q1: What is the purpose of the ABE7R16S212 relay sub base?
A1: It serves as a relay interface module that provides reliable discrete signal switching for automation equipment.
Q2: Does each relay channel include its own LED indicator?
A2: Yes, each of the 16 channels is equipped with an LED indicator for status monitoring.
Q3: What type of connection terminals does the unit use?
A3: The unit features screw-clamp terminals for secure and stable wiring.
Q4: Is this relay sub base compatible with DIN rail installation?
A4: Yes, it is designed for standard DIN rail mounting inside industrial control cabinets.
Q5: Can this module be paired with PLC outputs?
A5: Yes, it is commonly used with PLC output modules for signal interface and expansion.
Q6: What relay contact configuration does it support?
A6: It supports SPDT electromechanical relay contacts for discrete control.
Q7: Does the module provide isolation between channels?
A7: Yes, it includes reinforced insulation to ensure electrical isolation.
Q8: How can relay activity be monitored?
A8: Relay activity is indicated through LED indicators located on each channel.
