Technical Specifications
| Parameter | Description |
|---|---|

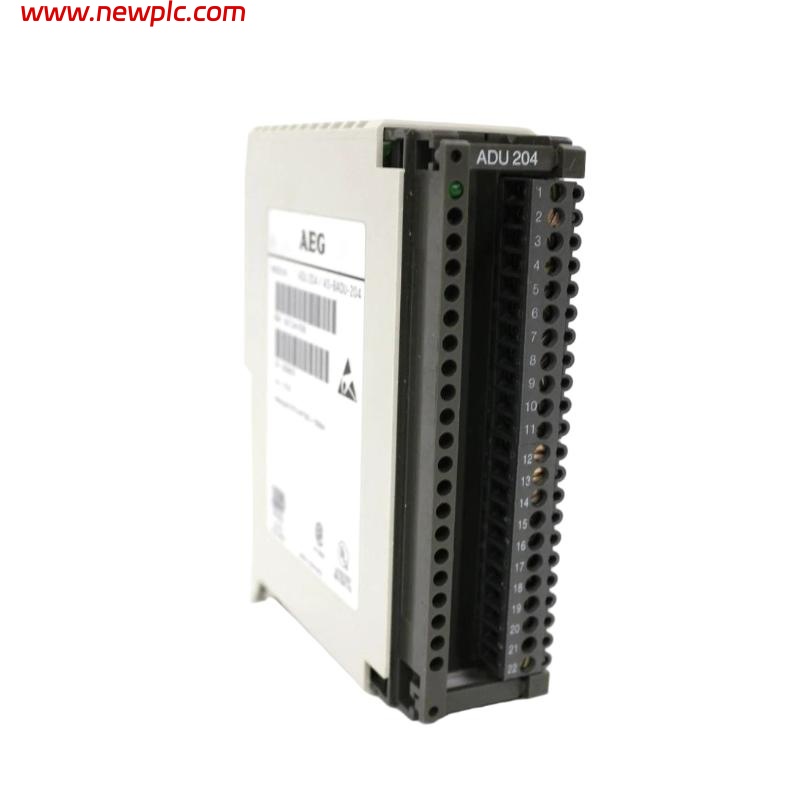

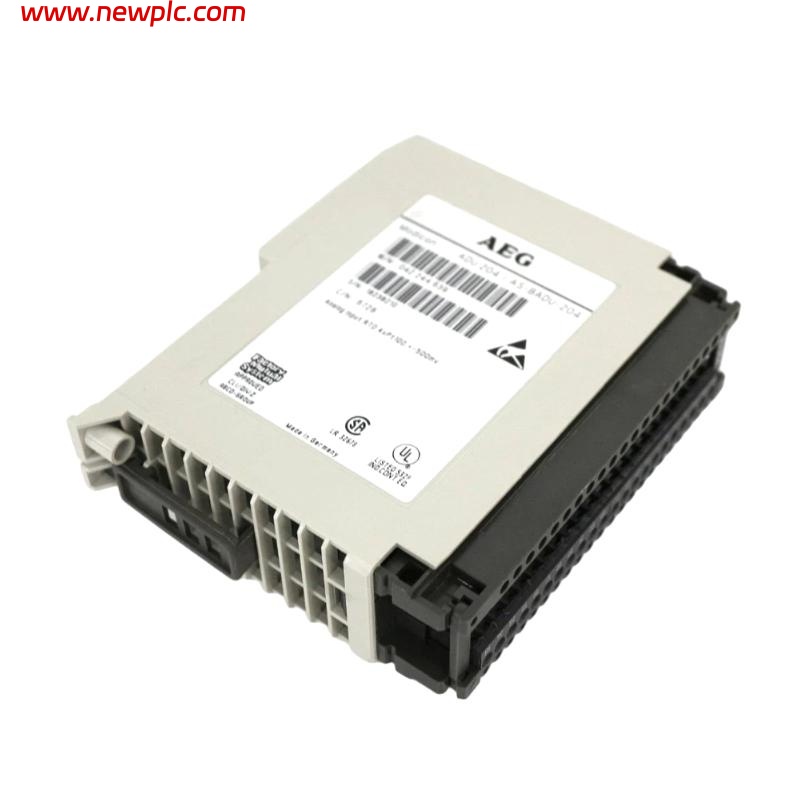

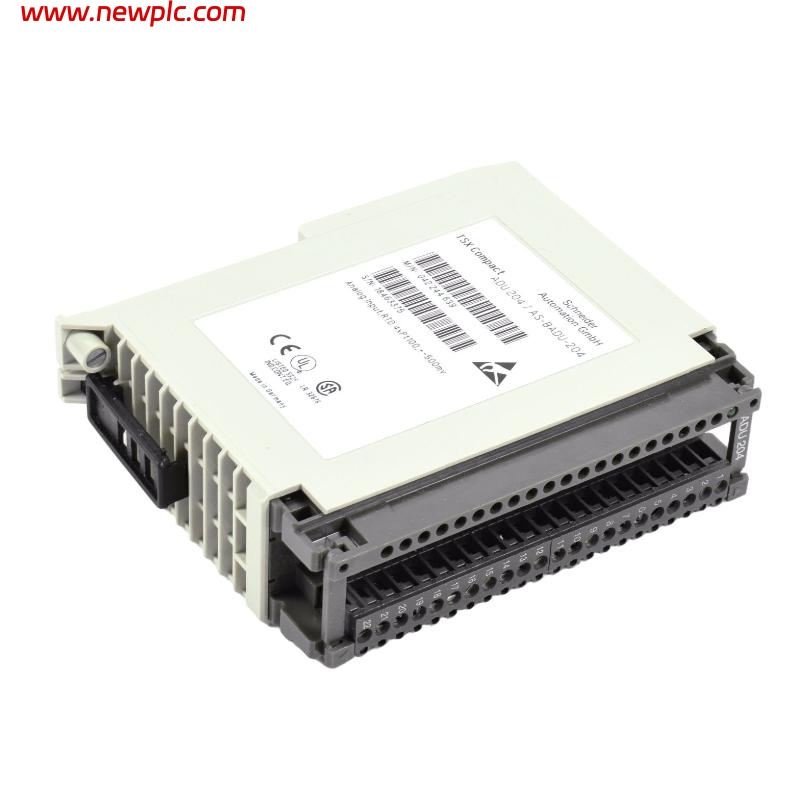

| Product Model | Schneider ADU 204 / AS-BADU-204 Analog Input Module |
| Function | Provides multi-channel analog signal acquisition for industrial control systems |
| Input Type | Analog (Voltage/Current depending on configuration) |
| Number of Input Channels | 4 isolated analog inputs |
| Input Signal Range | Typically 0–10 V / 4–20 mA (depending on module setup) |
| Resolution | 12-bit or 16-bit depending on system configuration |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Bus Compatibility | Schneider PLC systems using Modicon/Telemecanique architectures |
| Operating Voltage | Powered through backplane bus |
| Diagnostics | LED indicators for module and channel status |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | –40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (L × W × H) | 250 × 32 × 150 mm |
| Weight | 0.3 kg |
FAQ
FAQ
Q1: What types of analog signals does the ADU 204 module support?
A1: It supports standard industrial voltage and current signals such as 0–10 V and 4–20 mA, depending on system configuration.
Q2: How many input channels are available on this module?
A2: The module provides 4 isolated analog input channels.
Q3: Is channel isolation provided?
A3: Yes, the module offers channel-to-channel and channel-to-system isolation to ensure stable signal acquisition.
Q4: Which PLC platforms are compatible with the ADU 204 module?
A4: It is designed for use with Schneider Modicon and compatible Telemecanique control systems.
Q5: How is the module powered during operation?
A5: It receives operating power through the PLC backplane bus, requiring no external power supply.
Q6: Does the module include built-in diagnostics?
A6: Yes, LED indicators provide module status, channel status, and fault detection.
Q7: What is the typical resolution of its analog conversion?
A7: The module generally supports 12-bit or 16-bit resolution based on system capability.
Q8: What maintenance is recommended for reliable long-term operation?
A8: Recommended maintenance includes routine checks of wiring, ensuring clean terminal connections, and verifying signal integrity within each channel.
