Technical Specifications
| Parameter | Description |
|---|---|

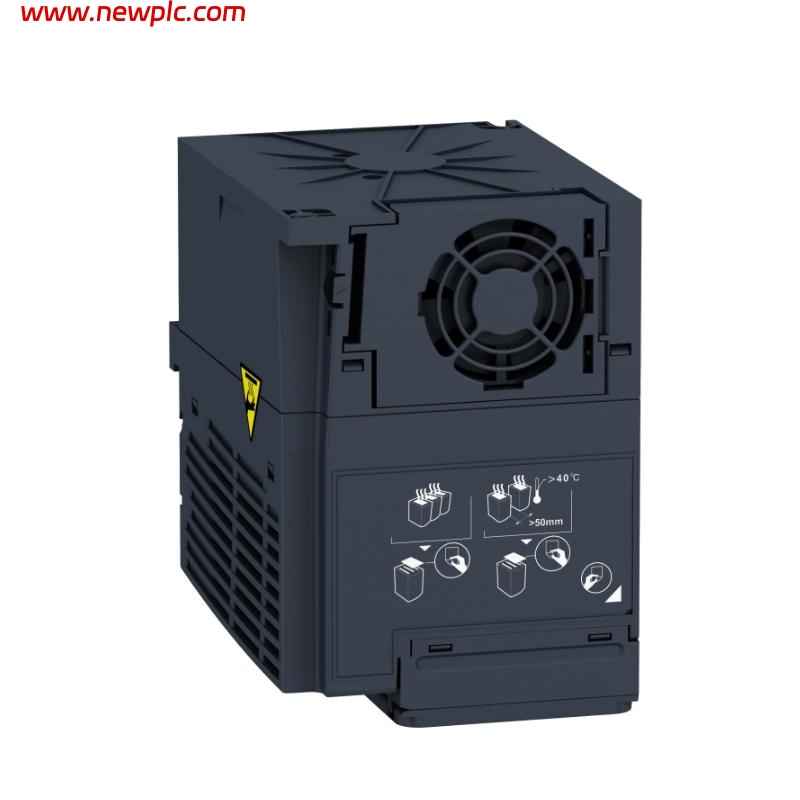

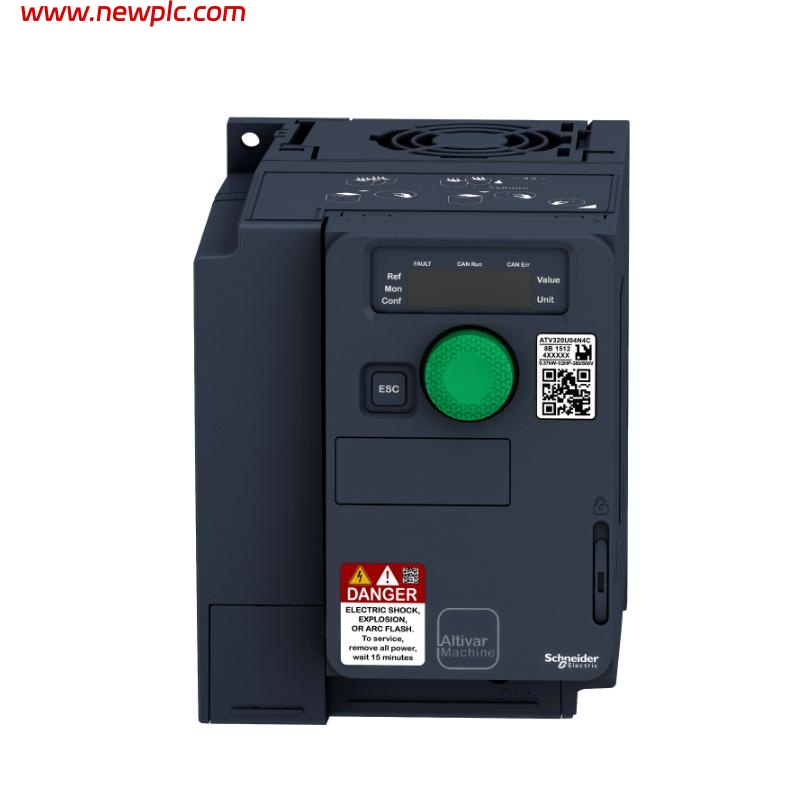

| Product Model | Schneider ATV320U11N4C Variable Speed Drive |
| Function | Controls the speed and torque of three-phase motors for industrial and machinery applications |
| Power Rating | 1.1 kW (1.5 HP) |
| Supply Voltage | 380–500 VAC, three-phase |
| Output Frequency Range | 0.1–599 Hz |
| Control Modes | V/F, Sensorless Vector Control (SVC), Torque Control |
| Overload Capacity | 150% for 60 s; 170% for 2 s |
| Communication Interfaces | Modbus, CANopen (integrated) |
| Digital Inputs | 5 programmable |
| Analog Inputs | 2 (voltage/current selectable) |
| Relay Outputs | 2 configurable |
| Protection Functions | Overcurrent, overheating, short circuit, undervoltage, motor overload |
| Operating Temperature | –10°C to +50°C (derating above 50°C) |
| Cooling Method | Integrated fan cooling |
| Mounting | Panel or DIN-rail depending on configuration |
| Dimensions (L × W × H) | 142 × 158 × 105 mm |
| Weight | 1.3 kg |
FAQ
FAQ
Q1: What type of motors can the ATV320U11N4C control?
A1: It supports three-phase asynchronous motors and some types of synchronous motors depending on configuration.
Q2: Does the drive support sensorless vector control?
A2: Yes, it includes full SVC capability for improved torque and speed stability.
Q3: Which communication protocols are integrated?
A3: Modbus and CANopen are built in, allowing easy integration into automation networks.
Q4: What is the maximum output frequency?
A4: The drive can operate up to 599 Hz to support a wide range of applications.
Q5: Does it include configurable inputs and outputs?
A5: Yes, it offers multiple digital and analog inputs along with relay outputs for flexible control.
Q6: What protective features are included?
A6: Built-in protections include overcurrent, overheating, short circuit, undervoltage, and motor overload protection.
Q7: How is the unit cooled during operation?
A7: The drive uses an integrated cooling fan to maintain stable thermal performance.
Q8: What applications commonly use this drive?
A8: It is widely used in conveyors, pumps, packaging machines, material handling systems, and general industrial machinery requiring reliable motor speed regulation.
