Technical Specifications
| Parameter | Description |
|---|---|

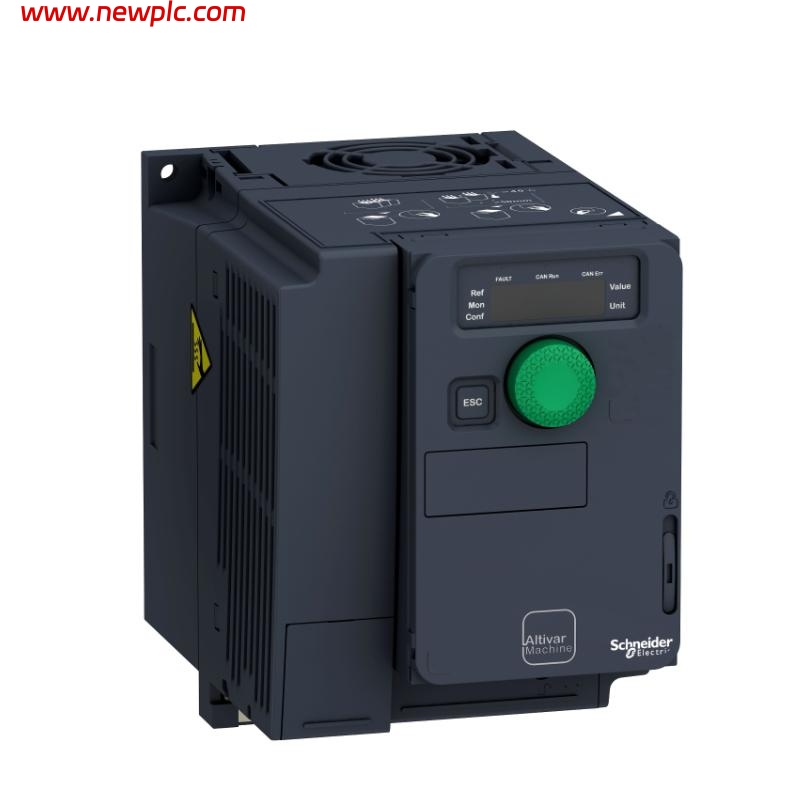

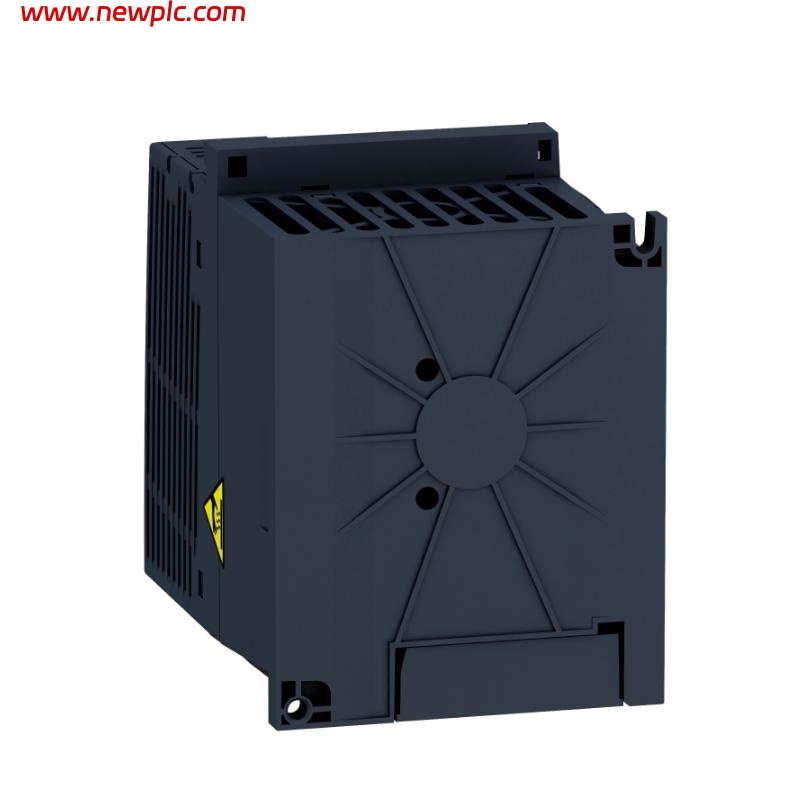

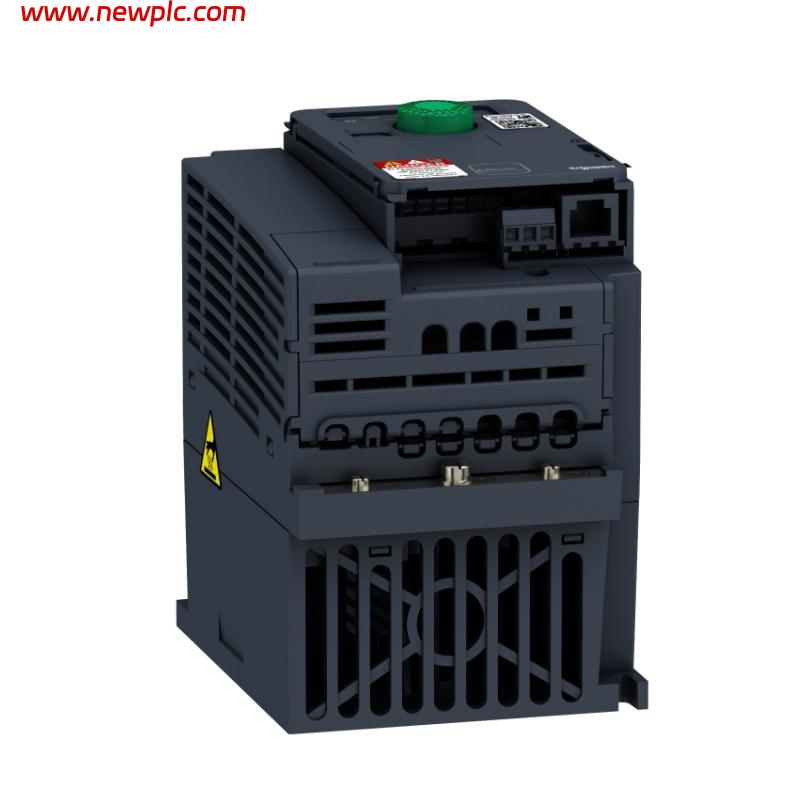

| Product Model | Schneider ATV320U15N4C Variable Speed Drive |
| Function | Controls the speed and torque of three-phase motors in industrial and machinery applications |
| Power Rating | 1.5 kW (2 HP) |
| Supply Voltage | 380–500 VAC, three-phase |
| Output Frequency Range | 0.1–599 Hz |
| Control Modes | V/F Control, Sensorless Vector Control (SVC), Torque Control |
| Overload Capacity | 150% for 60 s; 170% for 2 s |
| Communication Interfaces | Modbus and CANopen (integrated) |
| Digital Inputs | 5 programmable inputs |
| Analog Inputs | 2 (voltage/current selectable) |
| Relay Outputs | 2 configurable relay outputs |
| Protection Functions | Overcurrent, overheating, motor overload, short circuit, undervoltage |
| Operating Temperature | –10°C to +50°C (derating applies above 50°C) |
| Cooling Method | Integrated cooling fan |
| Mounting Method | Panel or DIN-rail depending on configuration |
| Dimensions (L × W × H) | 142 × 158 × 105 mm |
| Weight | 1.3 kg |
FAQ
FAQ
Q1: What type of motors can the ATV320U15N4C operate?
A1: It can operate three-phase asynchronous motors and certain synchronous motor types depending on system configuration.
Q2: Does this model support vector control?
A2: Yes, it supports Sensorless Vector Control (SVC) for high-performance torque and speed regulation.
Q3: Which communication protocols come built into the drive?
A3: The drive includes Modbus and CANopen as standard communication interfaces.
Q4: What is the maximum frequency output of the drive?
A4: It can deliver an output frequency up to 599 Hz.
Q5: How many programmable inputs are available?
A5: The drive includes 5 digital inputs and 2 analog inputs that can be freely configured.
Q6: What protection features are included?
A6: Integrated protections include overcurrent, overheating, short circuit, motor overload, and undervoltage protection.
Q7: How is thermal management handled?
A7: The drive uses an internal cooling fan to maintain thermal stability during operation.
Q8: What types of applications commonly use this drive?
A8: It is frequently used in pumps, conveyors, hoists, packaging machines, material-handling equipment, and general-purpose industrial motor control.
