Technical Specifications
| Parameter | Description |
|---|---|

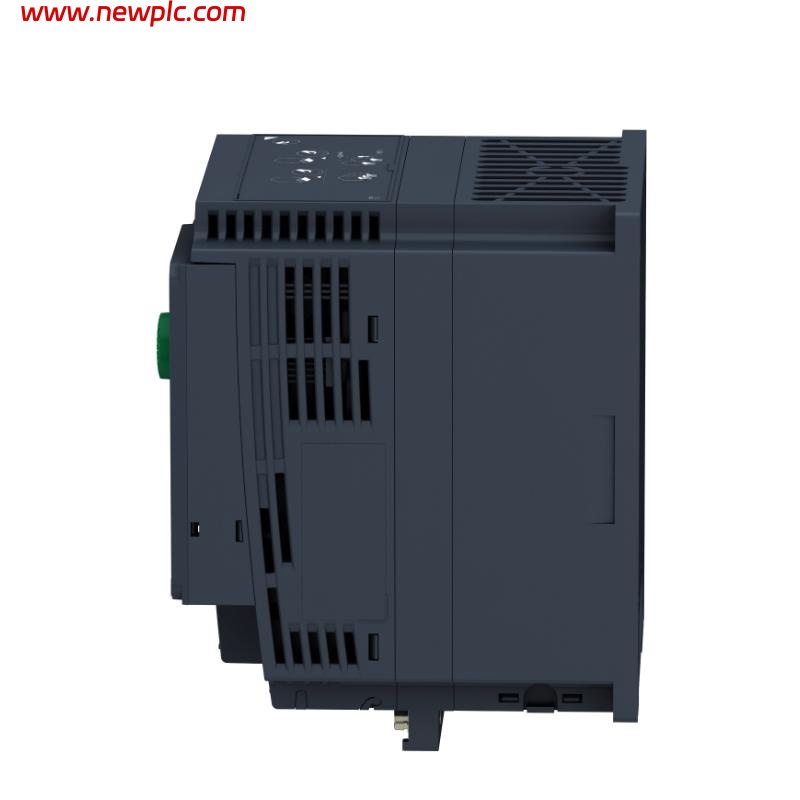

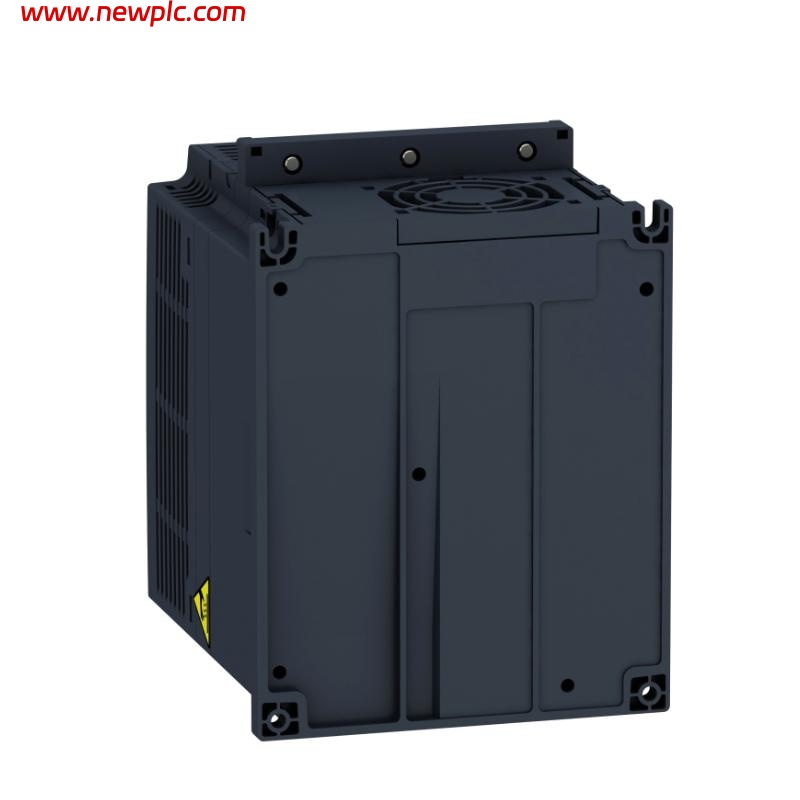

| Product Model | Schneider ATV320U30N4C Variable Speed Drive |
| Function | Provides motor speed and torque control for industrial three-phase motors |
| Power Rating | 3 kW (4 HP) |
| Supply Voltage | 380–500 VAC, three-phase |
| Output Frequency Range | 0.1–599 Hz |
| Control Modes | V/F Control, Sensorless Vector Control (SVC), Torque Control |
| Overload Capacity | 150% for 60 s; 170% for 2 s |
| Communication Interfaces | Modbus, CANopen (integrated) |
| Digital Inputs | 5 programmable digital inputs |
| Analog Inputs | 2 configurable analog inputs (voltage/current) |
| Relay Outputs | 2 programmable relay outputs |
| Protection Features | Overcurrent, overheating, short circuit, motor overload, undervoltage |
| Operating Temperature | –10°C to +50°C (derating above 50°C) |
| Cooling Method | Integrated cooling fan |
| Mounting Method | Panel or DIN-rail depending on configuration |
| Dimensions (L × W × H) | 140 × 158 × 184 mm |
| Weight | 2.1 kg |
FAQ
FAQ
Q1: What types of motors are compatible with the ATV320U30N4C?
A1: It supports three-phase asynchronous motors and certain synchronous motor types depending on setup.
Q2: Does this model support advanced motor control modes?
A2: Yes, it includes Sensorless Vector Control (SVC) and torque control for enhanced performance.
Q3: What communication systems are built into the drive?
A3: Modbus and CANopen are integrated for direct network connectivity.
Q4: What is the maximum output frequency this drive can provide?
A4: The unit can output up to 599 Hz.
Q5: How many programmable inputs and outputs are available?
A5: It includes 5 programmable digital inputs, 2 analog inputs, and 2 relay outputs.
Q6: What protection functions does the drive include?
A6: It features overcurrent, overheating, short circuit, motor overload, and undervoltage protection.
Q7: What cooling mechanism does the unit use?
A7: An internal cooling fan ensures stable temperature control during operation.
Q8: In what types of industrial applications is this drive typically used?
A8: It is commonly used in conveyors, pumps, compressors, packaging equipment, hoisting systems, and general machinery requiring precise motor speed regulation.
