Schneider ATS01N109FT Soft Starter

FAQ

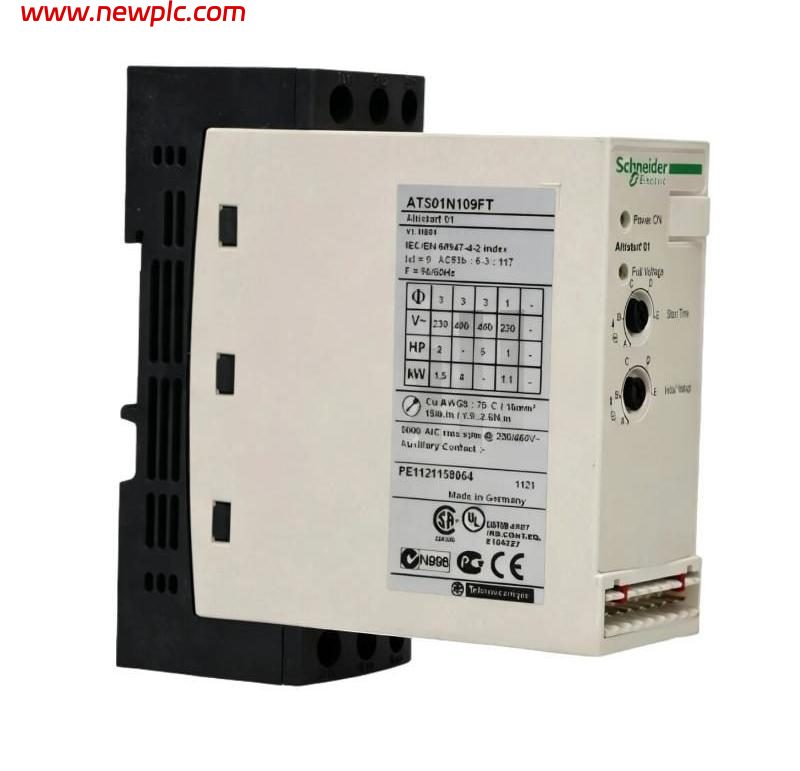

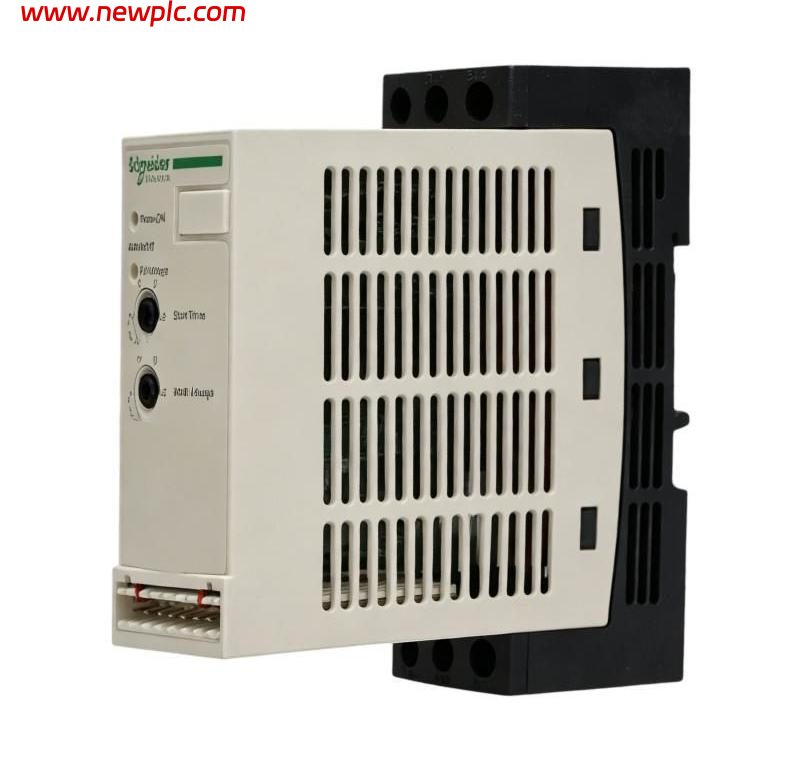

Q1: What is the Schneider Electric ATS01N109FT?
A: It is an Altistart 01 soft starter designed for asynchronous motor starting and simple machine applications.

Q2: What is the rated current?
A: The starter has a rated current of 9 A.

Q3: What supply voltage does it support?
A: It supports 110–480 VAC with a 50–60 Hz supply frequency.

Q4: What motor power can it control?
A: It supports up to 4 kW at 400 V three-phase, 1.5 kW at 230 V three-phase, or 1.1 kW at 230 V single-phase.

Q5: Does the ATS01N109FT have an integrated bypass?
A: Yes. The unit includes an integrated bypass function.

Q6: How is the motor started?
A: It uses a voltage-ramp starting method, with the starting time adjustable from 1 to 5 seconds.

Q7: What are the dimensions and weight?
A: The dimensions are approximately 124 × 45 × 131 mm, and the product weight is approximately 0.28 kg.

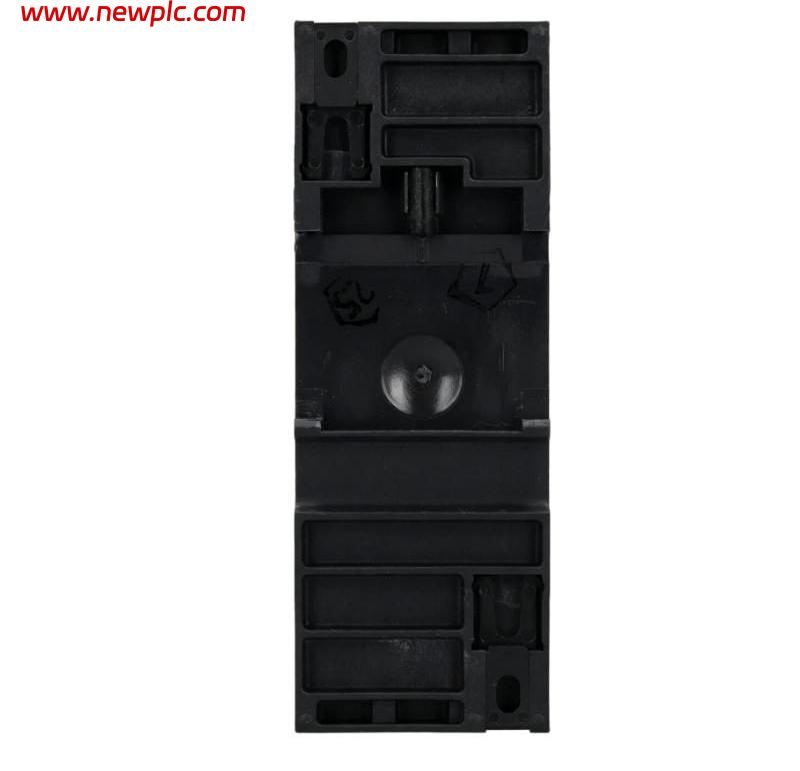

Q8: How can the ATS01N109FT be mounted?
A: It can be mounted on a symmetrical 35 mm DIN rail or by screw fixing.
