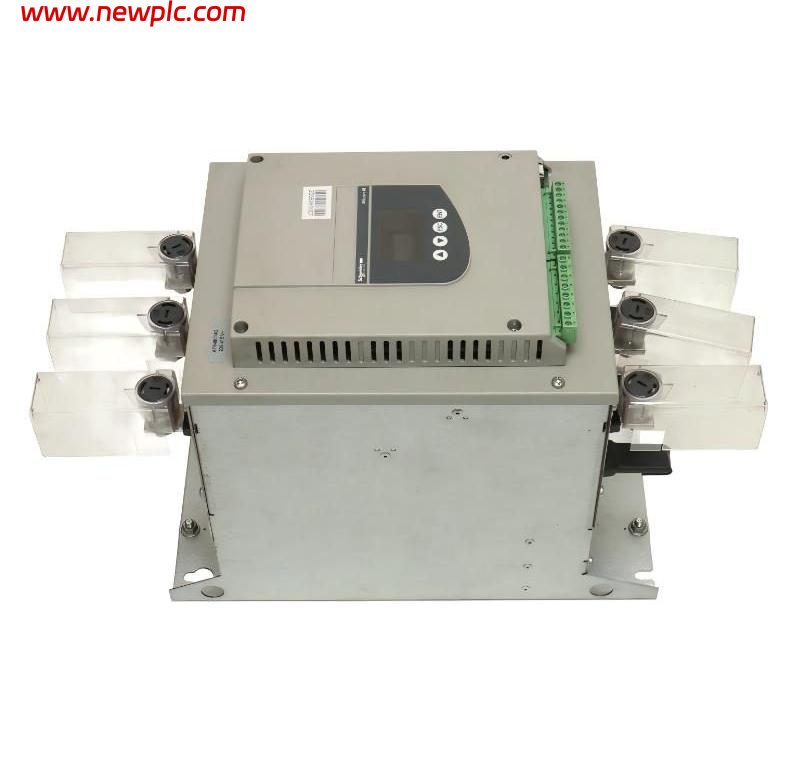

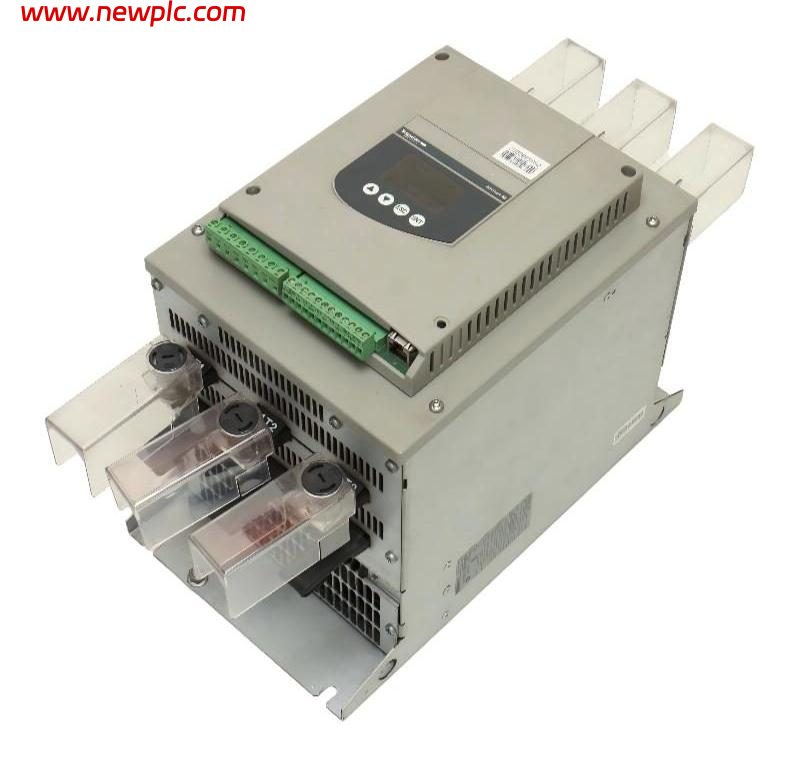

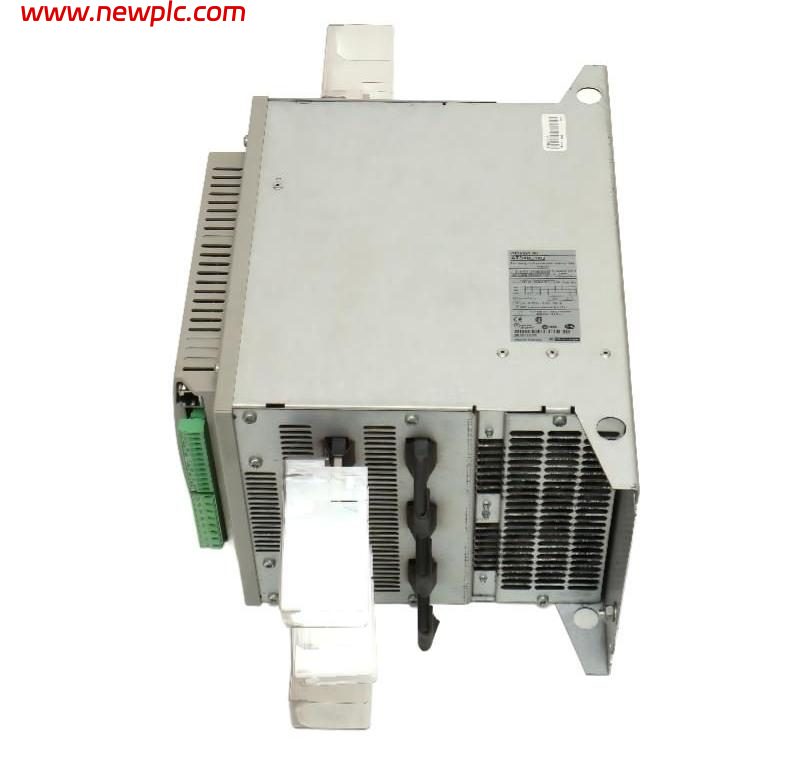

Schneider ATS48C14Q Soft Starter for Asynchronous Motor

FAQ

Q1: What is the Schneider Electric ATS48C14Q?
A: It is an Altistart 48 soft starter designed for asynchronous motor starting and stopping.

Q2: What is the rated current?
A: The rated current is 131 A.

Q3: What supply voltage does it support?
A: It is designed for 230–415 VAC three-phase applications.

Q4: What motor power range is supported?
A: Schneider specifies a motor power range of 30–110 kW, depending on the operating voltage and application conditions.

Q5: Does the ATS48C14Q support Modbus communication?
A: Yes. It supports Modbus communication through an RS-485 serial interface.

Q6: How is the motor controlled?
A: The ATS48 supports both 2-wire and 3-wire start/stop control.

Q7: What are the dimensions and weight?
A: The approximate dimensions are 200 × 265 × 340 mm, with a weight of approximately 12.4 kg.

Q8: Is the ATS48C14Q discontinued?
A: Yes. Schneider Electric has discontinued the ATS48C14Q. The recommended replacement is the ATS480C14Y, a 140 A Altistart 480 soft starter for 208–690 VAC with 110–230 VAC control supply. Schneider lists end-of-service as December 31, 2030.

ATS48C14Q Schneider
