Technical Specifications
| Parameter | Specification |
|---|---|

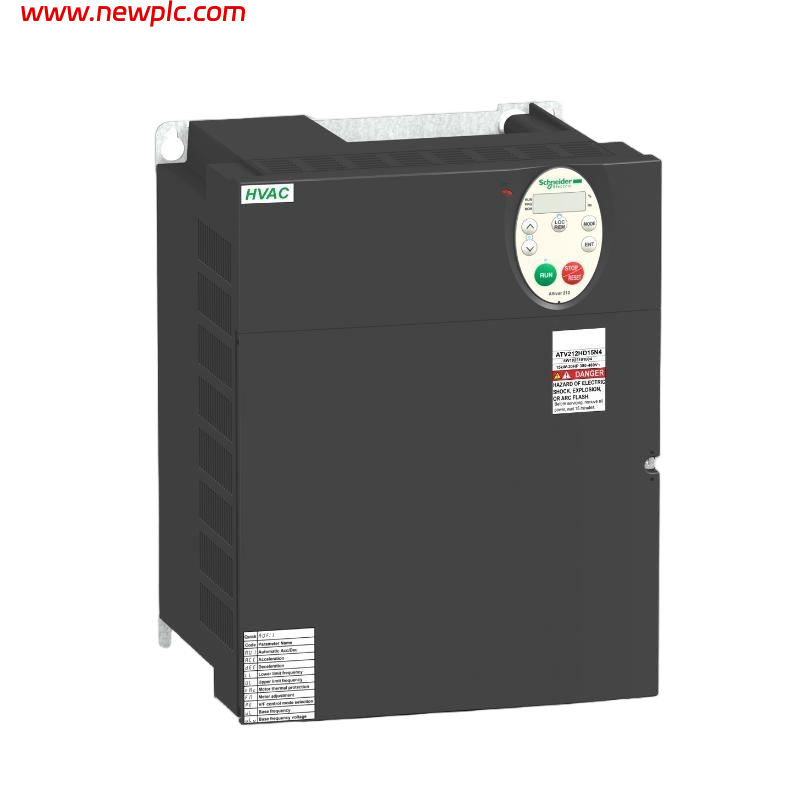

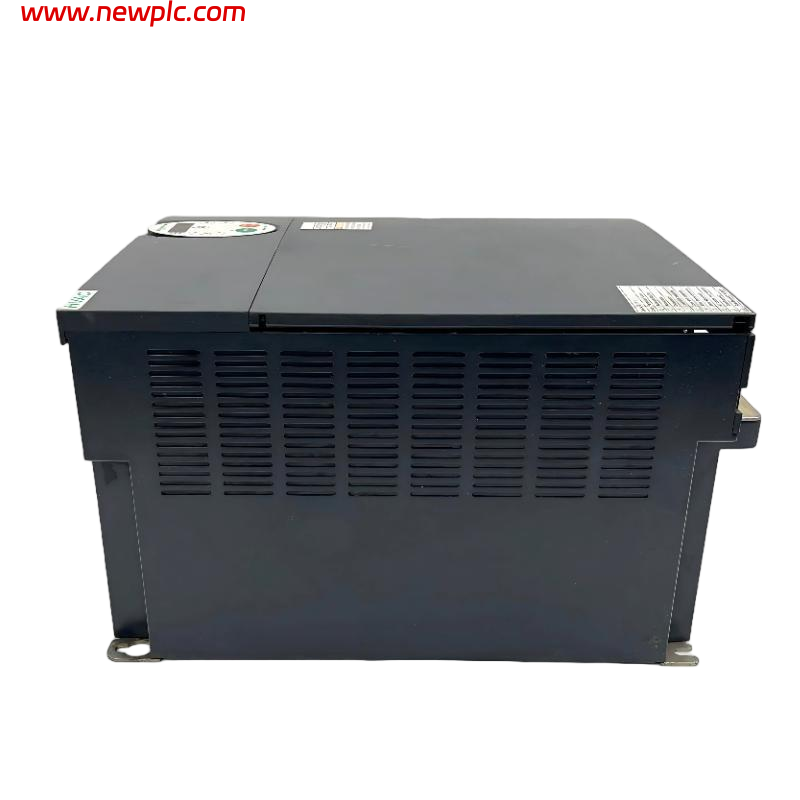

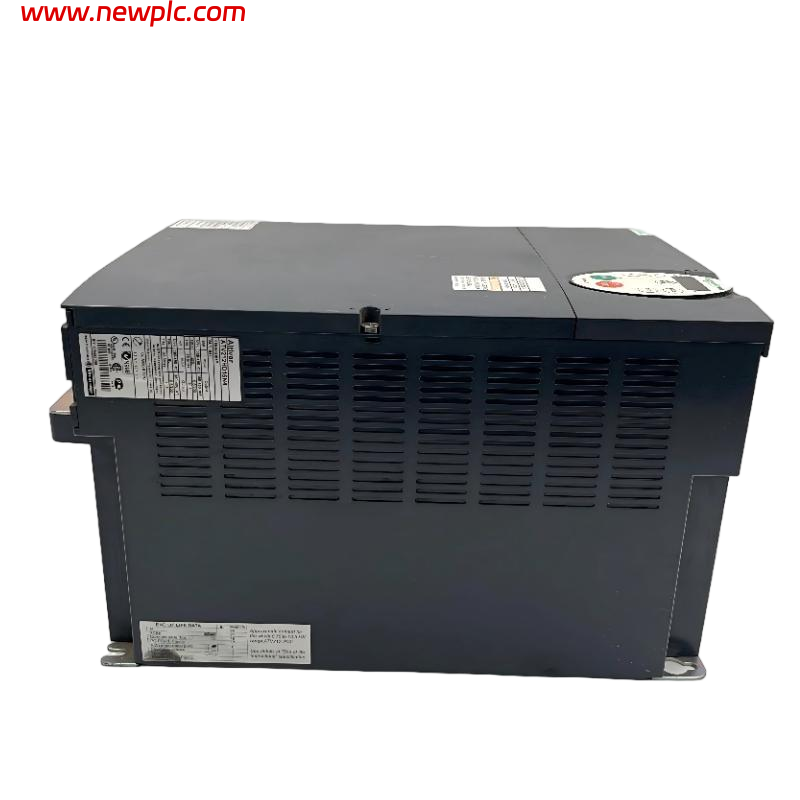

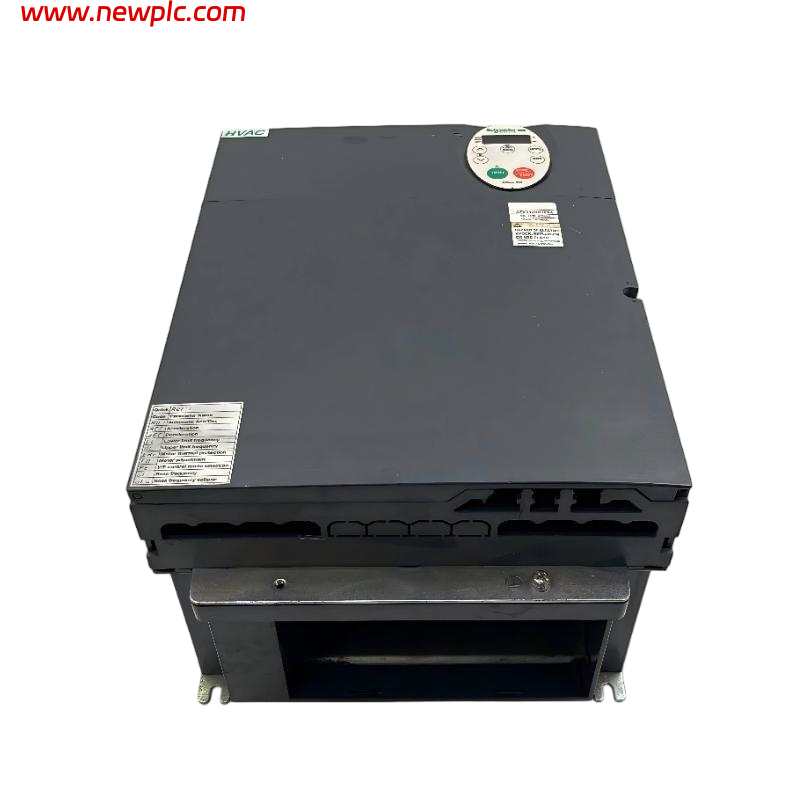

| Manufacturer | Schneider Electric ATV212HD15N4 |
| Model / Part Number | ATV212HD15N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Product Series | Altivar 212 |
| Nominal Motor Power | 15 kW (20 hp) |
| Supply Voltage | 323–528 VAC (3‑phase; typically 380–480 VAC) |
| Rated Output Current | 30.5 A at 380/460 VAC |
| Line Current | 28.5 A at 380 VAC; 22.8 A at 480 VAC |
| Output Frequency Range | 0.5 – 200 Hz |
| Control Modes | Voltage/Frequency, Sensorless Flux Vector, Adjustable PI regulation |
| Built‑in EMC Filter | Class C2 / C3 integrated |
| Communications | Modbus, BACnet, METASYS N2, APOGEE FLN, LonWorks |
| Protection Rating | IP21 (UL Type 1) |
| Ambient Operating Temperature | −10 °C to +40 °C (with derating above) |
| Approvals | CE, UL, CSA, C‑Tick, NOM |
| Dimensions (W × H × D) | 245 × 330 × 190 mm |
| Net Weight | ≈ 11.65 kg |
| Mounting | Vertical panel mounting (±10°) |
| Typical Use | Variable speed control of 3‑phase motors (HVAC, pumps, fans, industrial machinery) |
FAQ
FAQ
Q1: What is the primary use of this variable frequency drive?
It is used to control the speed and torque of three‑phase AC motors by varying the electrical supply frequency and voltage for applications like HVAC fans, pumps, and other industrial equipment.
Q2: What motor size is the ATV212HD15N4 designed for?
It is designed for motors up to 15 kW (20 hp).
Q3: What supply voltage range does the drive accept?
The drive accepts a three‑phase supply voltage from 323 VAC up to 528 VAC, typically used with 380–480 VAC systems.
Q4: What protection rating does this drive have?
It has an IP21 degree of protection, suitable for indoor industrial environments with limited dust and moisture exposure.
Q5: What are the physical dimensions of the drive?
The unit measures approximately 245 mm wide × 330 mm high × 190 mm deep.
Q6: What is the net weight of this drive?
The net weight is around 11.65 kg.
Q7: What communications protocols are supported?
It supports Modbus, BACnet, METASYS N2, APOGEE FLN, and LonWorks for integration with building and industrial control systems.
Q8: What frequency range can the drive output to the motor?
The drive can vary the output frequency from approximately 0.5 Hz up to 200 Hz.
