Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |

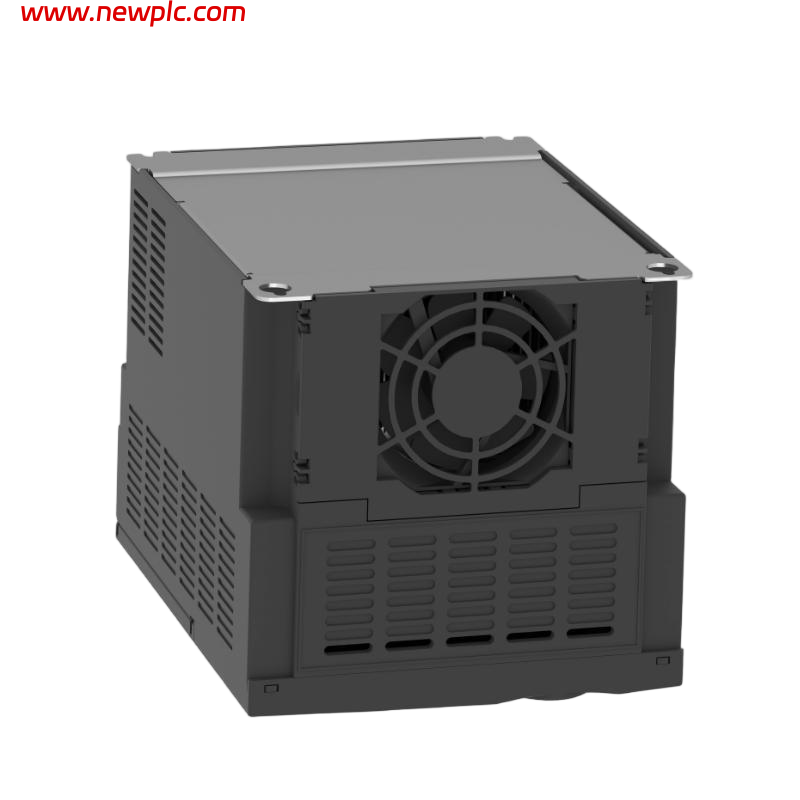

| Model / Part Number | Schneider Electric ATV212HD18N4 |
| Product Series | Altivar 212 Variable Frequency Drive (VFD) |
| Product Type | 3‑phase AC motor drive (HVAC/industrial) |
| Nominal Motor Power | 18.5 kW (25 hp) |
| Supply Voltage | 380–480 VAC (3‑phase) |
| Rated Output Current | ~34.8 A |
| Output Frequency Range | ~0.5 – 200 Hz |
| Control Modes | V/f and sensorless flux vector (standard) |
| Built‑in EMC Filter | Class C2 |
| Communication | Modbus, METASYS N2, APOGEE FLN, BACnet (typical integrated protocols) |
| Protection Rating | IP21 (open type) |
| Standards & Approvals | CE, UL, CSA, C‑Tick, NOM |
| Ambient Operating Temperature | −10 °C to +40 °C |
| Mounting | Vertical panel mounting (±10°) |
| Dimensions (W × H × D) | 245 × 330 × 190 mm |
| Net Weight | ≈ 11.65 kg |
| Typical Uses | Variable speed control of 3‑phase motors for HVAC fans, pumps, compressors, and general industrial applications |
FAQ
FAQ
Q1: What is the main function of this VFD?
It controls the speed and torque of a three‑phase AC motor by adjusting the output frequency and voltage to optimize performance and energy use.
Q2: What motor power does the ATV212HD18N4 support?
This drive is rated for motors up to 18.5 kW (25 hp) on a 380–480 VAC three‑phase supply.
Q3: What voltage range does it operate on?
It accepts a 380–480 VAC three‑phase supply.
Q4: What are the physical dimensions of this drive?
The unit measures approximately 245 mm wide × 330 mm high × 190 mm deep.
Q5: How much does the ATV212HD18N4 weigh?
The net weight is about 11.65 kg.
Q6: What environments is this drive designed for?
It is designed for indoor industrial environments, especially for HVAC and pumping applications, with an IP21 protection rating.
Q7: Does this drive include EMC filtering?
Yes — it has an integrated Class C2 EMC filter to help meet conducted and radiated emission standards.
Q8: What communication protocols are supported?
Standard integrated protocols include Modbus, METASYS N2, APOGEE FLN, and BACnet for building and industrial control systems.
